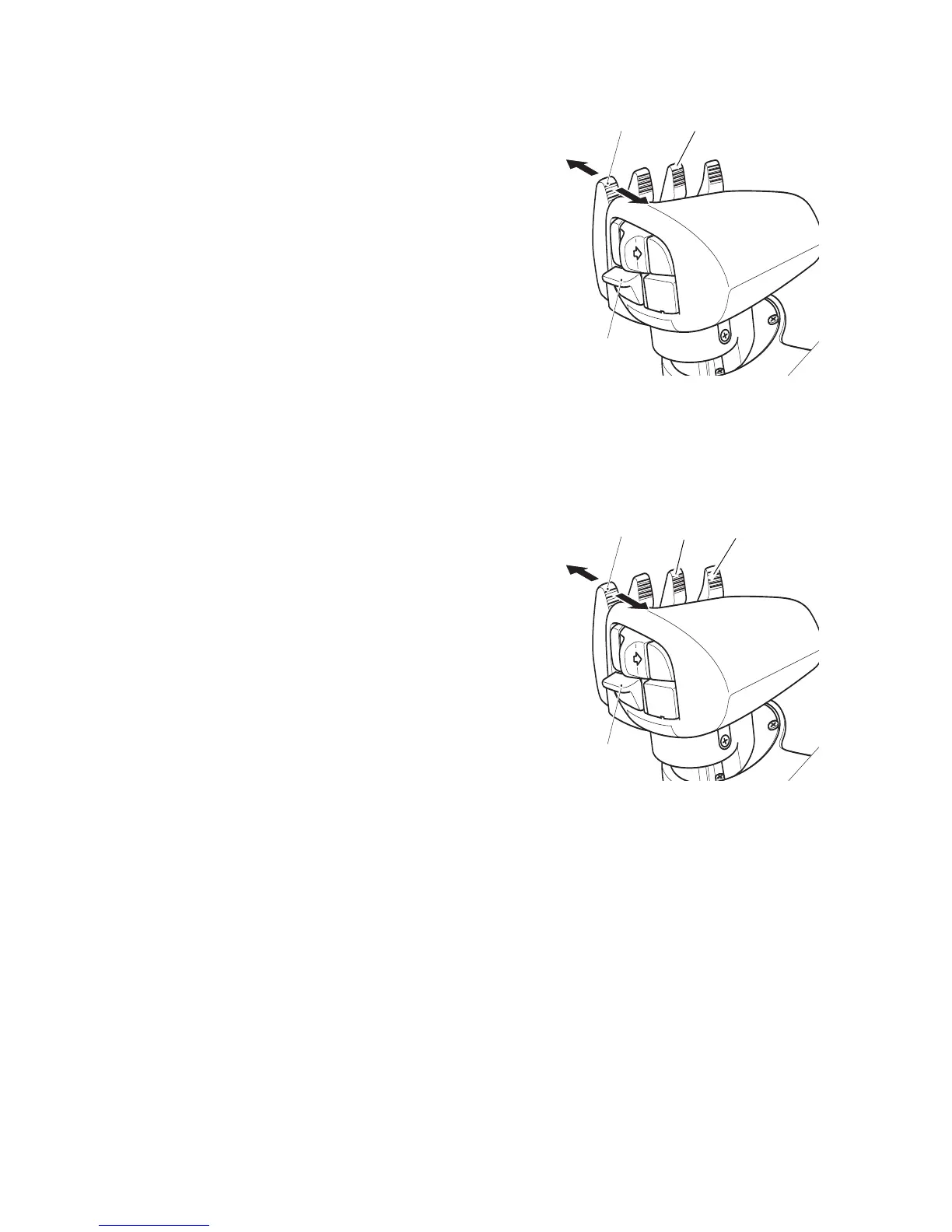

4.14.2 Solo Pilot with control of ZH1 and ZH2 hydraulic ports
Z Depending on the attachments used the lever
/ button (144, 146, 147) is assigned the
function of the attachment. Levers that are
not required are void. For connections (see
"Assembly and hydraulic ports of additional
attachments" on page 100).
Procedure
• Operating the hydraulic port ZH1:
Move the lever (146) in direction V or R.
• Operating the hydraulic port ZH2:
Press the toggle switch (147) and at the same
time move the lever (144) in the V or R
direction.
The attachment’s function is performed.
4.14.3 Solo Pilot with control of ZH1, ZH2 and ZH3 hydraulic ports
Z Depending on the attachments used the
levers / buttons (144, 146, 147, 150) are
assigned the respective functions. Levers that
are not required are void. For connections
(see "Assembly and hydraulic ports of
additional attachments" on page 100).
Procedure
• Operating the hydraulic port ZH1:
Move the lever (146) in direction V or R.
• Operating the hydraulic port ZH2:
Move the lever (150) in direction V or R.
• Operating the hydraulic port ZH3:
Press the toggle switch (147) and at the same
time move the lever (144) in the V or R direction.
The attachment’s function is performed.
R
V
144
83
146
R
V
144
83
150
146
