99
05.10 EN
4.15.3 Multi Pilot with control of ZH1, ZH2 and ZH3 hydraulic ports

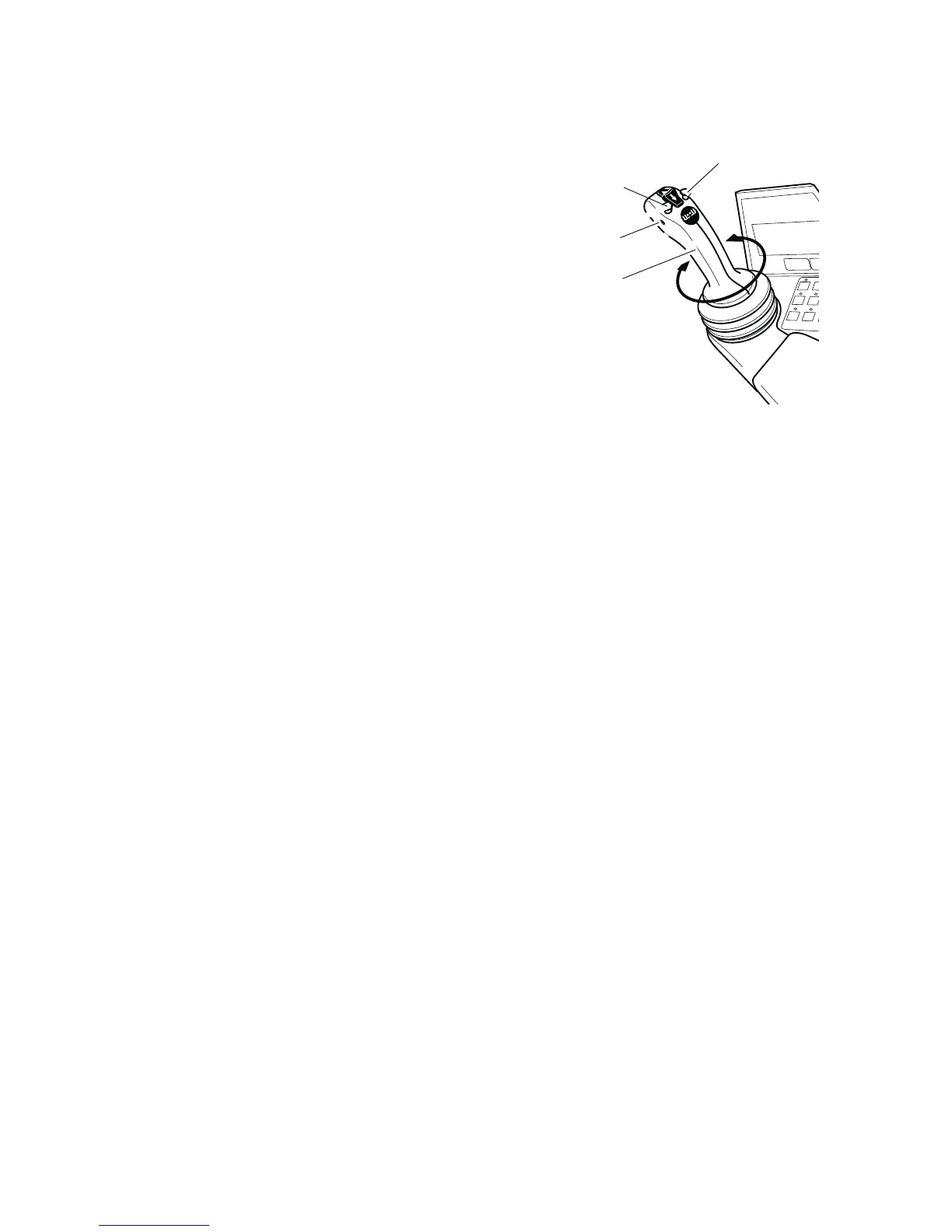

Z Depending on the attachments used the
buttons (148, 149, 83) and the lever (75) are
assigned the function of the attachment. Levers
that are not required are void. For connections
(see "Assembly and hydraulic ports of additional
attachments" on page 100).
Procedure
• Operating the hydraulic port ZH1:
Press button (148) or button (149).
• Operating the hydraulic port ZH2:
Turn the Multi Pilot (75) clockwise or anti-
clockwise.
• Operating the hydraulic port ZH3:
Set the Multi Pilot (75) to neutral and then turn it
clockwise or anti-clockwise while at the same time pressing the button (83).
The attachment’s function is performed.
148
149
75
83
