CHAPTER 11
Connecting the Switch
•
Connecting Earth Ground to an EX Series Switch on page 83
•
Connecting AC Power to an EX3300 Switch on page 91
•
Connecting DC Power to an EX3300 Switch on page 92
•
Connecting an EX Series Switch to a Network for Out-of-Band Management on page 95
•
Connecting an EX Series Switch to a Management Console on page 96
•
Connecting an EX Series Switch to a Modem on page 99
•
Connecting a Fiber-Optic Cable to an EX Series Switch on page 103
Connecting Earth Ground to an EX Series Switch
To meet safety and electromagnetic interference (EMI) requirements and to ensure
proper operation, you must connect the switches to earth ground before you connect
them to power.
For installations that require a separate grounding conductor to the chassis, use the
protective earthing terminal on the EX Series switch chassis to connect to the earth
ground (see Figure 32 on page 83).

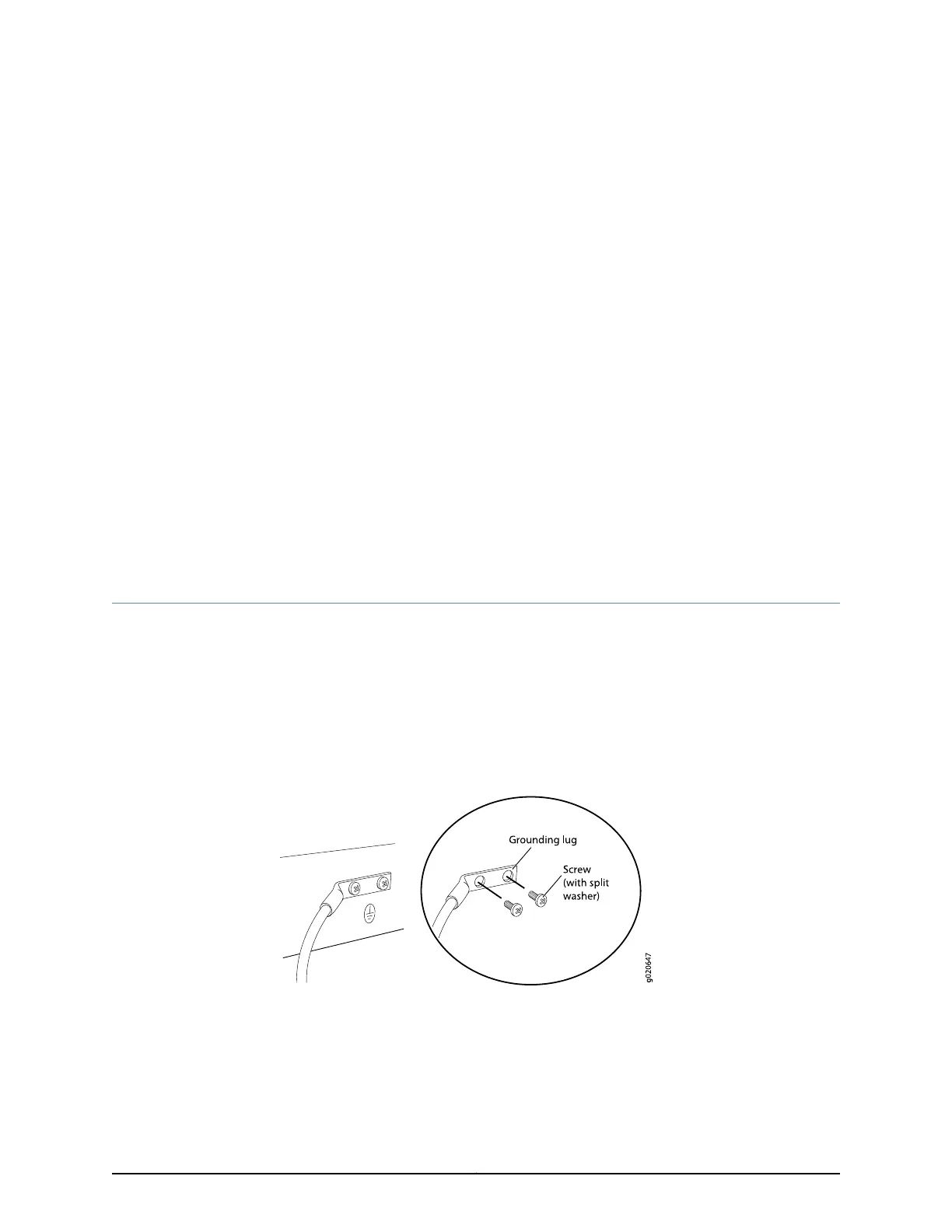

Figure 32: Connecting a Grounding Cable to an EX Series Switch
Before you connect earth ground to the protective earthing terminal of an EX Series
switch, ensure that a licensed electrician has attached an appropriate grounding lug to
the grounding cable.
83Copyright © 2011, Juniper Networks, Inc.
