Figure 16 on page 61, Figure 17 on page 61, and Figure 18 on page 62 show six EX3300
switches stacked vertically in a rack and interconnected in a ring topology.

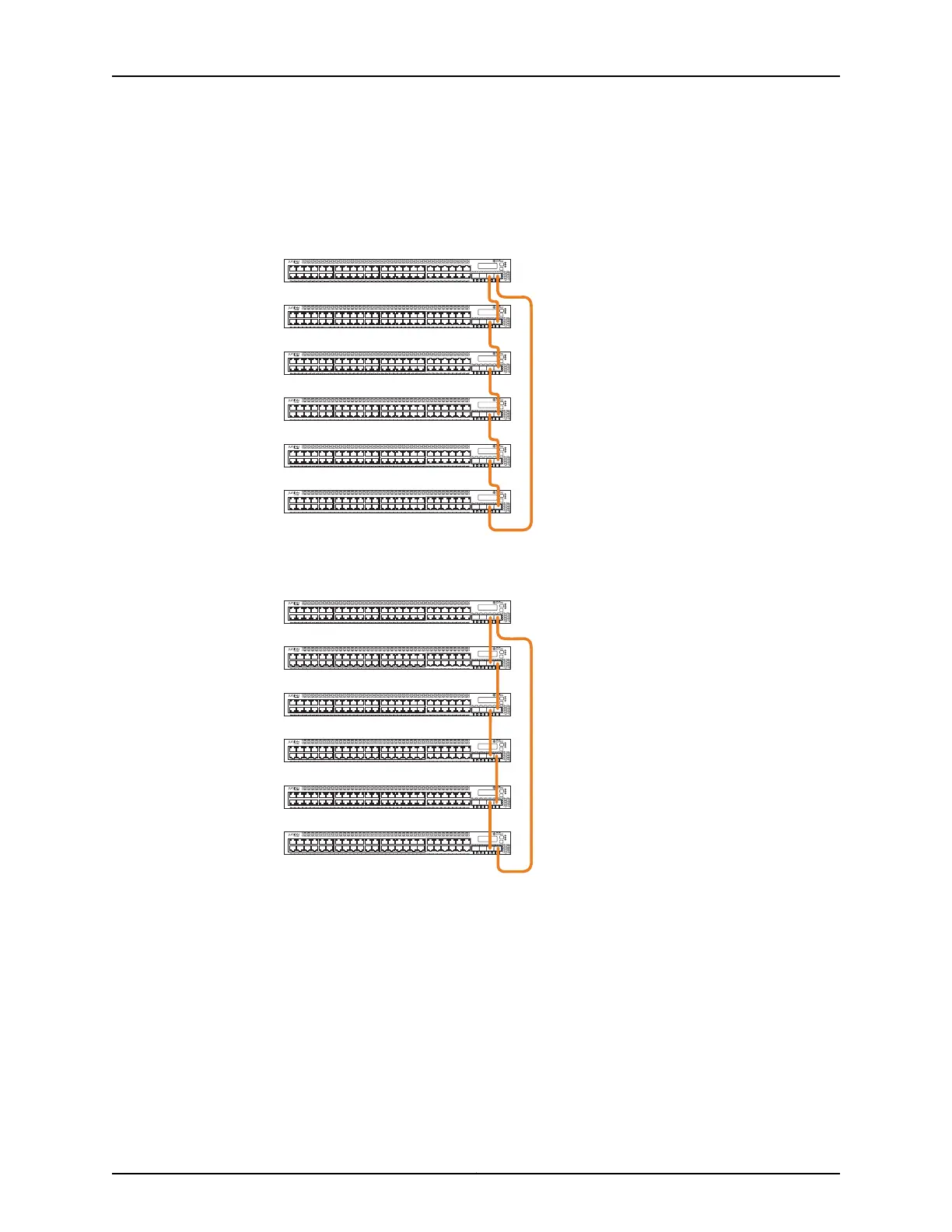

Figure 16: EX3300 Switches Mounted on a Single Rack and Connected in
a Ring Topology: Option 1
g021232
0 1 2 3
ALM
EX3300 PoE+
SYS
MST
0 1 2 3
ALM
EX3300 PoE+
SYS
MST
0 1 2 3
ALM
EX3300 PoE+
SYS
MST
0 1 2 3
ALM
EX3300 PoE+
SYS
MST
0 1 2 3
ALM
EX3300 PoE+
SYS
MST
0 1 2 3
ALM
EX3300 PoE+
SYS
MST
Figure 17: EX3300 Switches Mounted on a Single Rack and Connected in
a Ring Topology: Option 2
g021233
0 1 2 3
ALM
EX3300 PoE+
SYS
MST
0 1 2 3
ALM
EX3300 PoE+
SYS
MST
0 1 2 3
ALM
EX3300 PoE+
SYS
MST
0 1 2 3
ALM
EX3300 PoE+
SYS
MST
0 1 2 3
ALM
EX3300 PoE+
SYS
MST
0 1 2 3
ALM
EX3300 PoE+
SYS
MST
61Copyright © 2011, Juniper Networks, Inc.
