Table 26: AC Power Cord Specifications (continued)

Plug StandardsElectrical SpecificationsCountry/Region

JIS C8303125 VAC, 12 A, 50 Hz or 60 HzJapan

NEMA 5-15125 VAC, 13 A, 60 HzNorth America

SEV 1011 SEV 6534/2250 VAC, 10 A, 50 HzSwitzerland

BS 1363/A250 VAC, 10 A, 50 HzUnited Kingdom

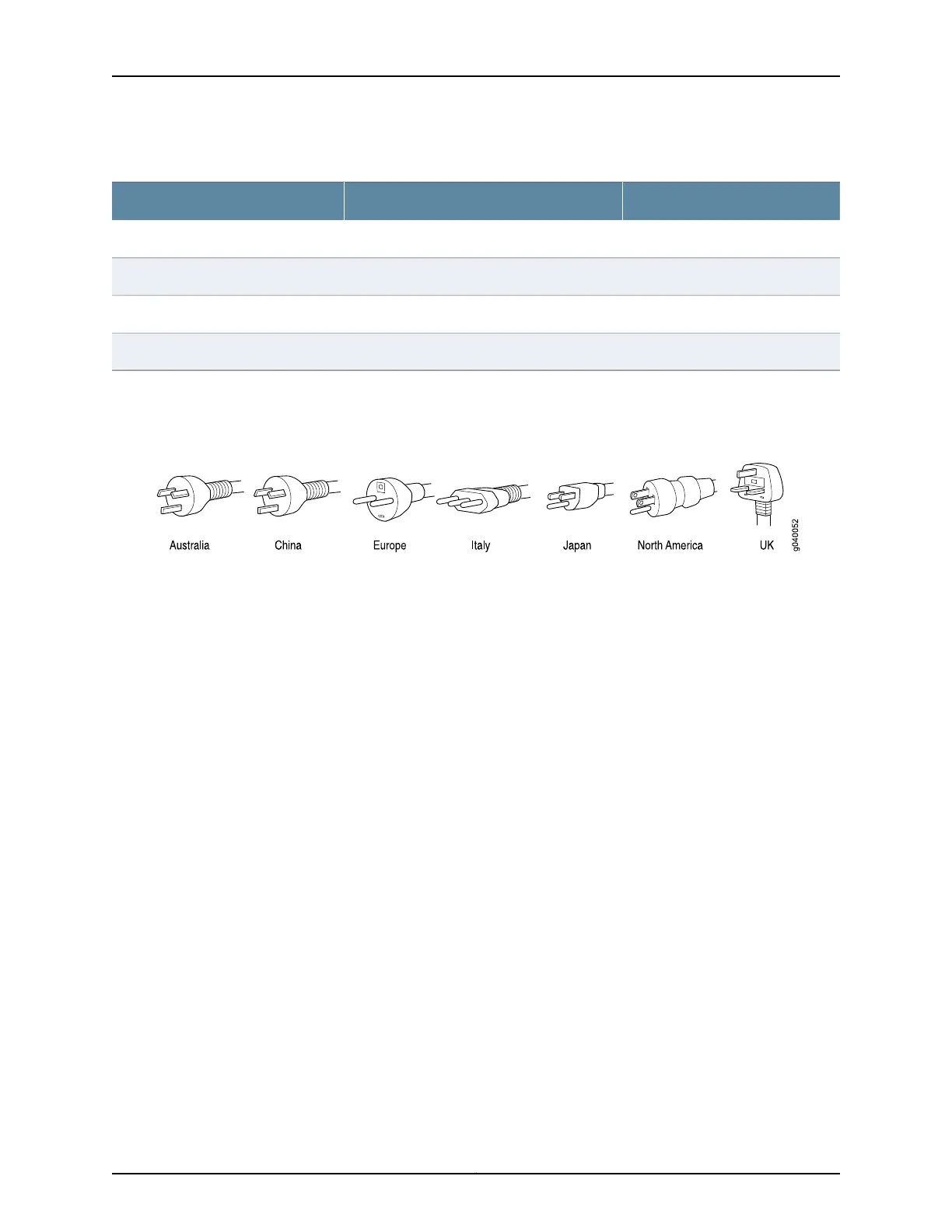

Figure 15 on page 57 illustrates the plug on the power cord for each country or region

listed in Table 26 on page 56.

Figure 15: AC Plug Types

Documentation

• Power Supply in EX3300 Switches on page 21

• General Safety Guidelines and Warnings on page 133

• General Electrical Safety Guidelines and Warnings on page 157

• Prevention of Electrostatic Discharge Damage on page 158

Chapter 7: Planning Power Requirements
