Preparation

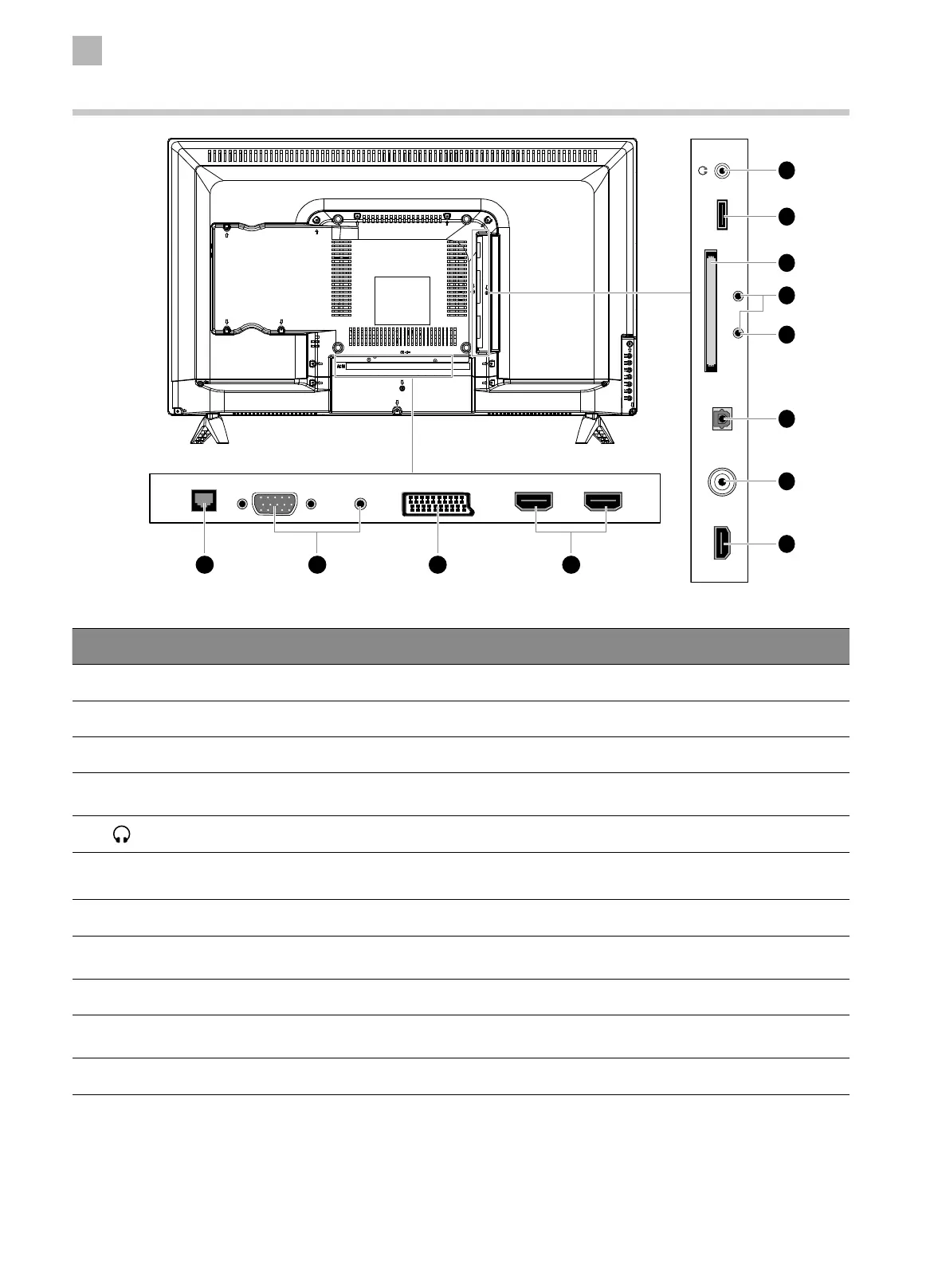

Rear View and Sockets
Item Description
1 LAN Connects your TV to the internet router by an Ethernet cable.
2 PC AUDIO IN / PC Connects to a computer or other devices with a VGA interface.
3 SCART Connects to a VCR, DVD Player, or other AV device with a SCART output socket.
4 HDMI1(ARC) / HDMI2 /
HDMI3
Connects to a High-Definition (HD) signal output device, such as a set-top box, blu-ray
disc player or AV receiver.
5
Connects to the headphones.
6 USB
Allows the insertion of a USB storage device to play video, audio and photo files (USB
mode).
7 COMMON INTERFACE Allows the insertion of a Common Access Module. (Refer to page 33 for details.)
8 YPbPr / AV (Audio)
Connects to a DVD player, Digital Set-Top-Box, or other AV devices with component
(YPbPr) video and audio output sockets.
9 AV Connects to the Composite output sockets on external video devices.
10 Digital Audio Output
(Optical)
To connect to the audio socket on the digital/standard 5.1 audio system.
11 RF Connects to the aerial socket on the wall with the RF coaxial cable.
1 2 43
HDMI3 USBRF
COMMON INTERFACE (CI)
AV YPbPr
Digital Audio Output
(Optical)
SCART HDMI1(ARC) HDMI2LAN PC PC AUDIO IN
4
11
10
5
6
8
9
7
