Connections
18

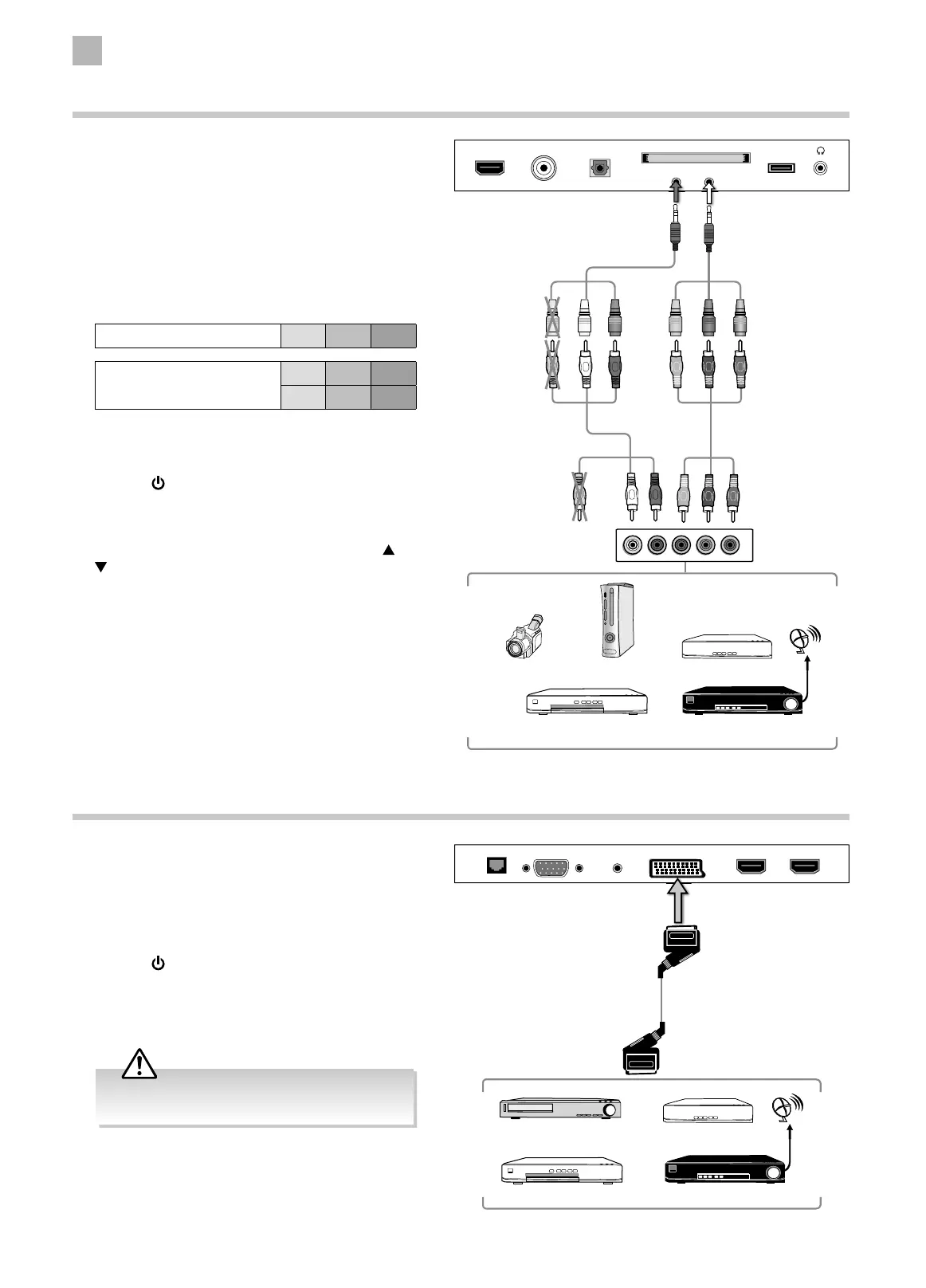

Connecting an AV Device Using a Component (YPbPr) Cable
1. Connect the supplied component adapter cable
and a component cable (not included) from the
TV’s YPbPr input socket to an external AV device’s
component output sockets.
2. Connect the supplied composite adapter cable and an
AV cable (not included) to connect the TV’s AV input
socket to the external AV device’s component audio
output sockets. (Audio Left = white, and Audio Right
= red)
Component port on the TV Y Pb Pr
Video output ports on DVD
player
Y Pb Pr
Y Cb Cr
3. Plug the connected devices into the mains socket
before switching on the TV.
4. Press the
button on the rear panel of the TV or on
the remote control to turn on your TV.
5. Press the INPUT button on the TV or on the remote
control to display the Input Source list. Use the
buttons to select YPbPr and then press the OK
button to confirm.
Connecting an AV Device Using a SCART Cable
1. Use a SCART cable to connect the TV’s SCART input
socket to an external AV device’s SCART output
socket.
2. Plug the connected devices into the mains socket
before switching on the TV.
3. Press the
button on the rear panel of the TV or on
the remote control to turn on your TV.
4. The TV will change the input source to SCART
automatically once the AV device is switched on.
Rear Right Side View of TV
HDMI3 USBRF
COMMON INTERFACE (CI)
AV YPbPr
Digital Audio Output
(Optical)
COMPONENT
OUT
Y
Pr
Pb
L
R
AV Cable
(not included)
Yellow Red White
Yellow (Video) Red (R)
White (L)
Composite
Adapter Cable
(included)
Red (R) White (L)
Yellow (Video)
Component
Cable
(not included)
Pb/Cb
Pr/Cr
Y
Pb/Cb Pr/Cr Y
Component
Adapter Cable
(included)
Blue (Pb/Cb) Red (Pr/Cr) Green (Y)
Satellite Receiver
Video Camera
Blu-ray Player / DVD Player /
Recorder
Set-top BoxGame Console
Rear Right Bottom View of TV
SCART HDMI1(ARC) HDMI2LAN PC PC AUDIO IN
SCART Cable
(not included)
Satellite Receiver
VCR
DVD Player / Recorder
Set-top Box
Ensure the both side of SCART plugs are fully
plugged to the TV and the connected devices.
