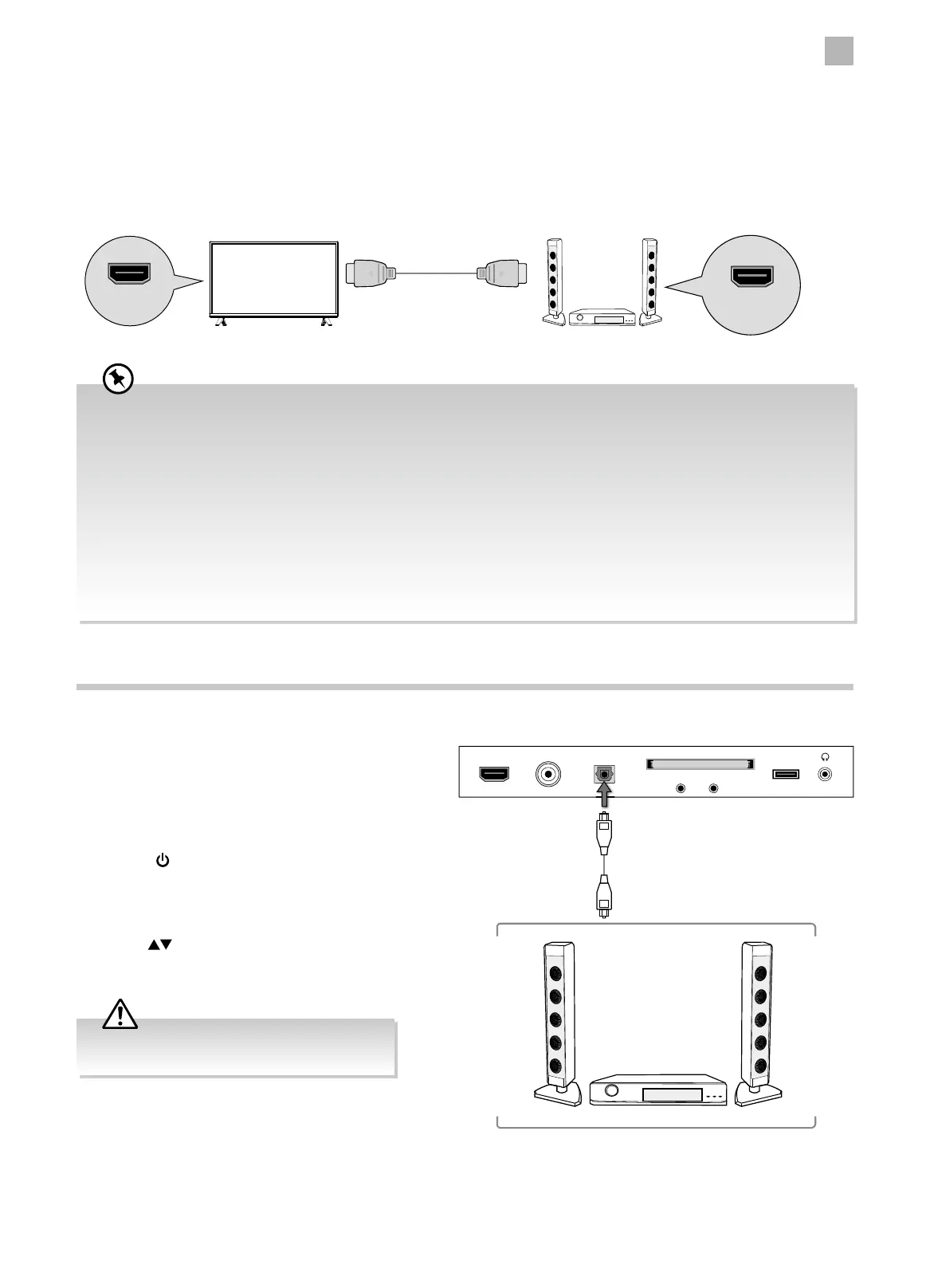

Connecting a Soundbar - HDMI ARC (Audio Return Channel)
The ARC (Audio Return Channel) function allows you to send audio from your ARC-compliant TV to ARC-compliant audio devices
(e.g. soundbar) through a single HDMI connection.
To enjoy the ARC function, please ensure your ARC-compliant audio devices are connected by an HDMI cable that support the
ARC function to the HDMI 1(ARC) socket of your ARC-compliant TV. When correctly set up, you can use your TV remote control to
adjust the volume output (VOL +/– and MUTE) of the connected audio device.
• Ensure that audio device is HDMI CEC and ARC compliant and that the TV is connected to the device using an HDMI cable
attached to HDMI-ARC connectors.
• The HDMI 1 connector is HDMI Audio Return Channel (ARC) compliant. Use it to output digital audio to an HDMI home
theater system.
• If the ARC-compliant audio devices do not support sound that TV outputs, such as Dolby Digital, or Dolby Digital Plus,
then ARC function will not work and there may be no sound from ARC-compliant audio devices. In this case, additional
connection with digital optical cable is necessary.
• The HDMI CEC feature has different trade names on different brands. The compatibility performance may vary with
different CEC-enabled devices.
• Please refer to your ARC-compliant devices' guidebook for more details on the operation of the HDMI ARC function.
• Ensure HDMI CEC is On (refer to page 44 for details on HDMI CEC).
TV HDMI-ARC compliant device
HDMI port with
ARC Function
HDMI Cable
(not included)
HDMI 1(ARC)
Connecting an Audio Receiver Using an Optical Cable
For better sound quality, you may want to play the audio through your multi-channel audio receiver.
1. Use an optical cable to connect the TV’s Digital
Audio Output (Optical) socket to an external audio
receiver’s audio optical input socket.
2. Plug the connected devices into the mains socket
before switching on the TV.
3. Press the
button on the rear panel of the TV or on
the remote control to turn on your TV.
4. Press the INPUT button on the TV or on the
remote control to display the Input Source list.
Use the
buttons on the remote control to
select any desired input source and then press the
OK button to confirm.
The TV’s volume will not be affected. You may
control the audio level via the Audio Receiver.
HDMI3 USBRF
COMMON INTERFACE (CI)
AV YPbPr
Digital Audio Output
(Optical)
Rear Right Side View of TV
Optical Cable
(not included)
Audio Receiver
To Next Page
