4K HDBaseT™ 8x8 Matrix Switcher
MX-HDBASE8X8-4K 8
KanexPro.com
Note: In default status, 8 IR OUT sockets correspond with 8 HDMI INPUTS. When you
convert an HDMI input to an output, the corresponding IR OUT will be switched
synchronously.

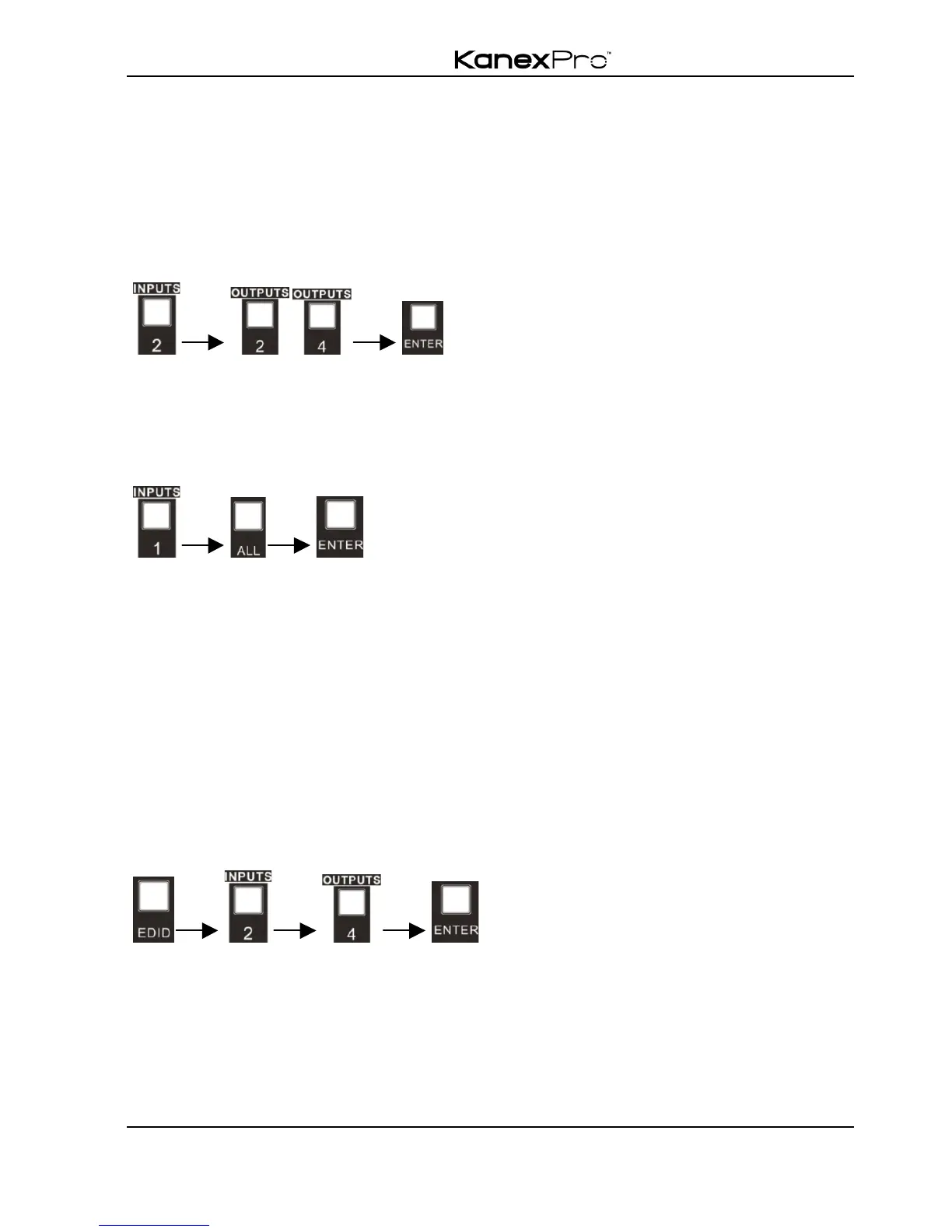

2) To convert an input to several outputs:
Operation: “input” + “output” + “output” +… +“ENTER”
Example: Switch input 2 to output 2, 4
3) To convert an input to all outputs:
Operation: “input” + “ALL” +“ENTER”
Example: Convert input 1 to all outputs
Note: Indicators of the pressed buttons will blink green for three times if the conversion
is done, then it will be off. If the conversion failed, they will be off immediately.
4.1.2 EDID Management
The matrix switcher features EDID management to maintain compatibility between all
devices. It can be controlled via EDID learning and EDID invoking.
EDID Learning (from output):
" One input port learns the EDID data of one output port
Operation: Press “EDID”, “INPUTS”+“OUTPUTS”+“ENTER”.
Example: Input 2learns EDID data from output 4
" All input ports learn EDID data from one output port
Operation: Press “EDID”, “ALL”+“OUTPUTS”+“ENTER”
Example: All input ports learn EDID data from output 4
