4K HDBaseT™ 8x8 Matrix Switcher
MX-HDBASE8X8-4K 34
KanexPro.com
Note: Log in as user access main interface only.

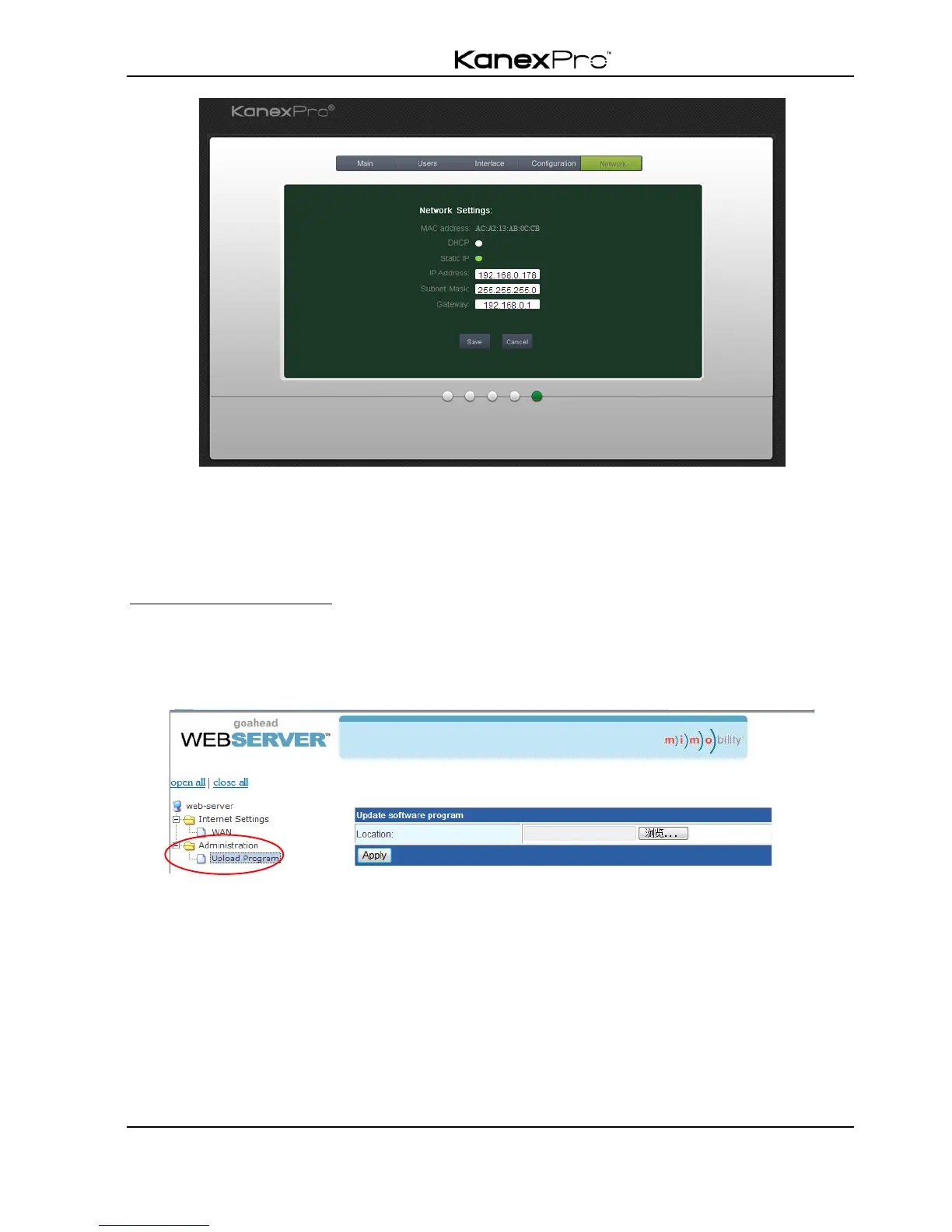

4.4.3 GUI Update
GUI for 4K HDBaseT 8x8 Matrix Switcher supports online update in
http://192.168.0.178:100. Type the username and password (the same as the GUI log-in
settings, modified password will be available only after rebooting) to log in the
configuration interface. After that, click Administration at the source menu to get to
Upload Program as shown below:
Select the desired update file and press Apply, it will start upgrading then.
4.5 Firmware Update via USB
The switcher boasts a USB port for online firmware upgrade on the front panel. Follow
these steps to upgrade firmware:
Step1. Copy the upgrade software and the latest upgrade file (.bin) to PC.
Step2. Connect the USB ports of the switcher and the PC via USB cable.
Step3. Double-click the update software icon (see as below).
To Next Page
