1.3 Package List
" 1 x 4K HDBaseT 8x8 Matrix Switcher
" 2 x Mounting ears (6 x Screws)
" 1 x RS232 cable
" 1 x IR Receiver
" 4 x Plastic cushions (4 x Black Screws)
" 1 x IR remote
" 1 x Power cord
" 24 x Pluggable Terminal Blocks
" 1 x User manual
Notes:
1) Confirm if the product and the accessories are all included, if not, please contact with
the dealers.
2) This matrix switcher does not include any receivers, please order the receivers
separately by contacting your AV dealer or KanexPro directly.
2. Product Appearance of the KanexPro 8x8 Matrix Switcher

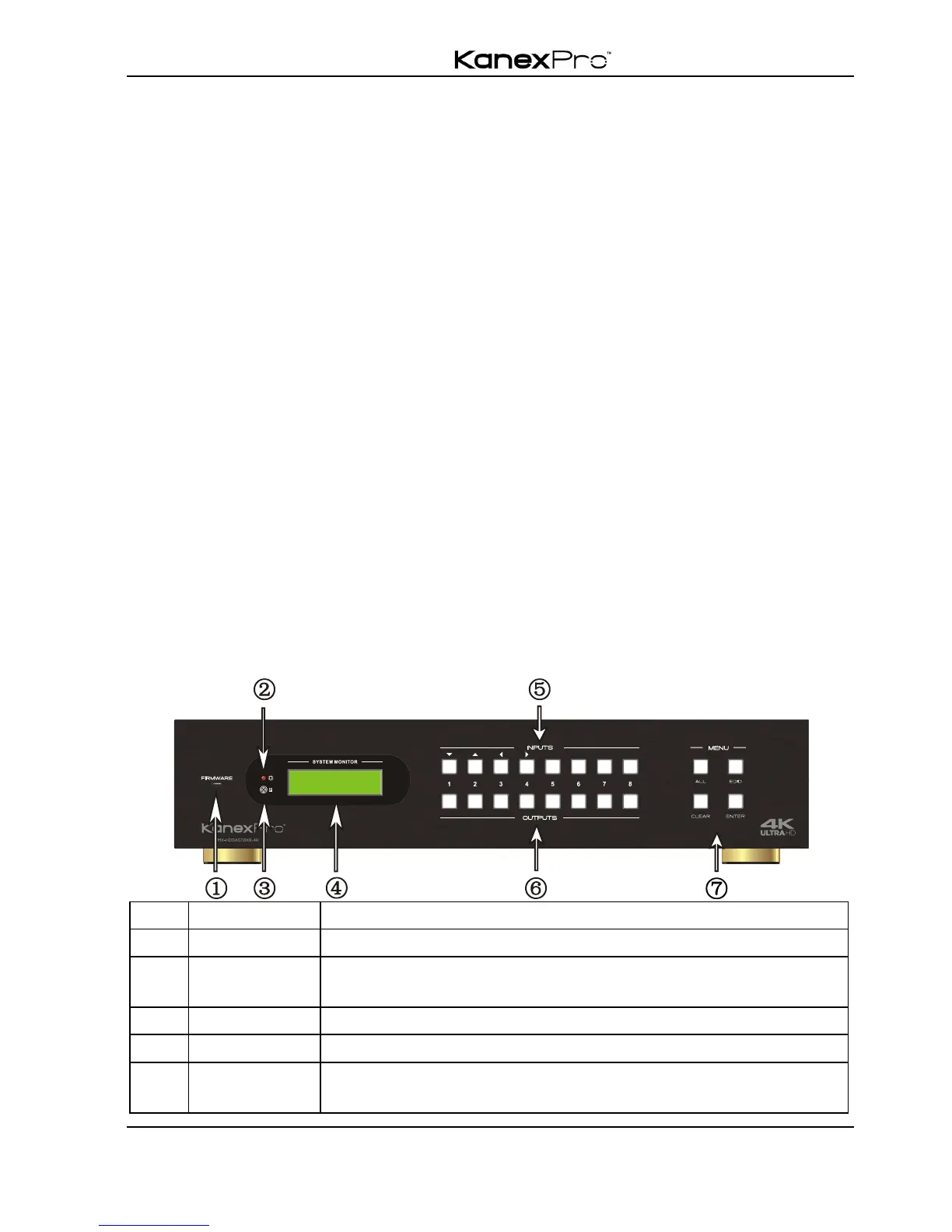

2.1 Front Panel
No.
Name
Description

Firmware
Micro USB port for updating firmware

Power
Indicator
" Illuminate red when power on
" Illuminate yellow in standby mode

IR
In-built IR sensor, receive IR signals sent from IR remote.

LCD Screen
Display real-time operation status.

INPUTS/Me
nu buttons
" Normal mode: Back-lit buttons, ranging from "1" to "8".
" Inquiry mode (buttons 1~4): Press, “ENTER” for more than
