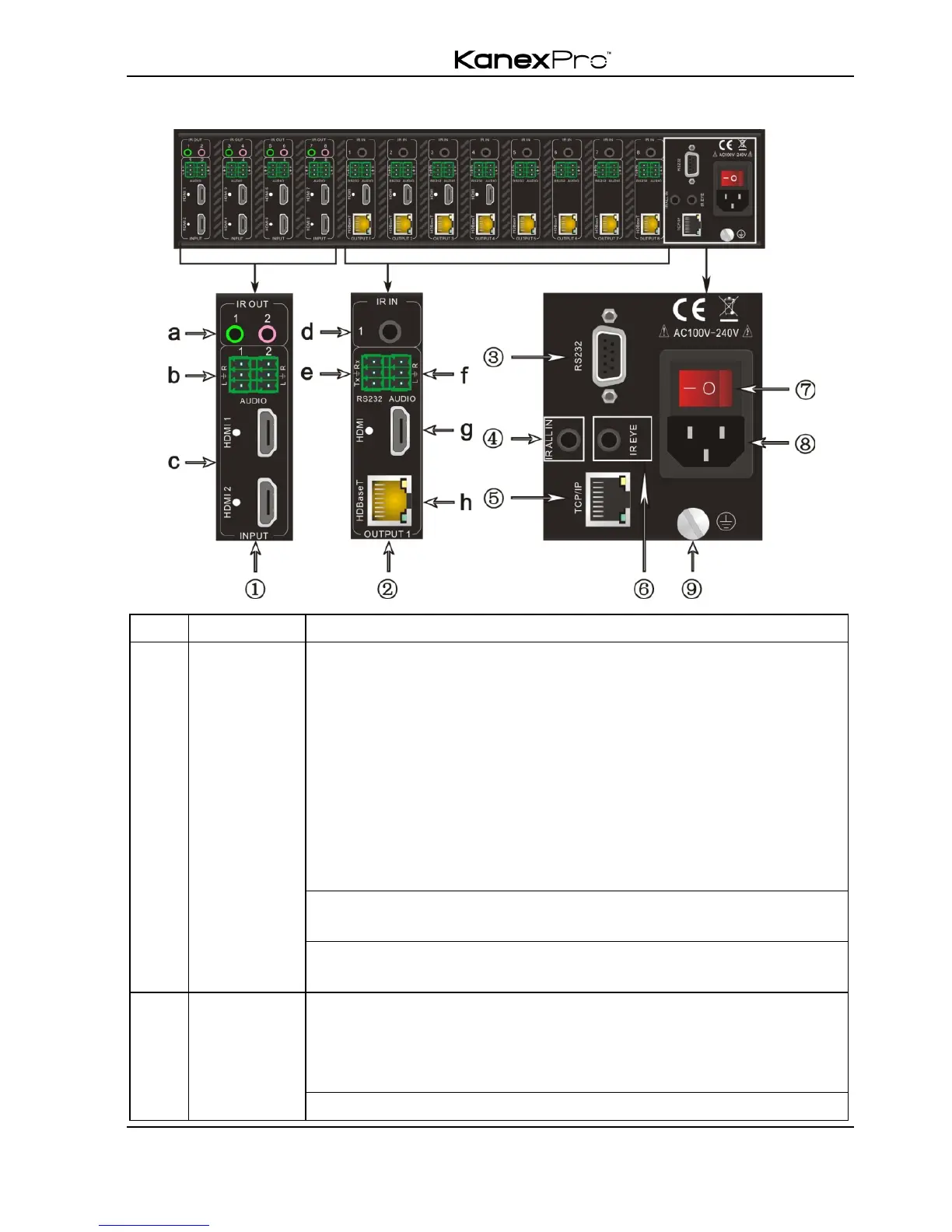

2.2 Rear Panel
a. IR OUT:8 in total connect with IR emitters to deliver the
IR signal sent from the far-end receivers connected to the
HDBaseT ports.
These IR OUT sockets make up an IR matrix with the IR
IN sockets on the far-end receivers, and all can be
switched synchronously with the AV signal, or separately
switching.
In default setting, the 8 IR OUT corresponds with the 8 IR
IN, i.e. IR OUT1→IR IN1, IR OUT2→IR IN2, …IR OUT8
→IR IN8.
b. AUDIO: Auxiliary audio input ports, 8 in total, connect
with analog audio sources
c. HDMI: HDMI input ports, 8 in total, type A female HDMI
connector, connect with HDMI input source devices.
d. IR IN: Connect with IR receiver (with carrier), 8 in total,
correspond to the 8 IR OUT, cannot be switched
separately. It makes up an IR bi-directional transmission
with the IR OUT on the corresponding far-end receiver.
e. RS232: 3-pinpluggable terminal blocks, 8 in total,
