TECHNICAL DATA 400V DEVICES
30
60
90
120
150
180
210
240
270
300
0 105 110 115 120 125 130 135 140 145 150 160 170 180 190 200
210 220
IN / %
t / s

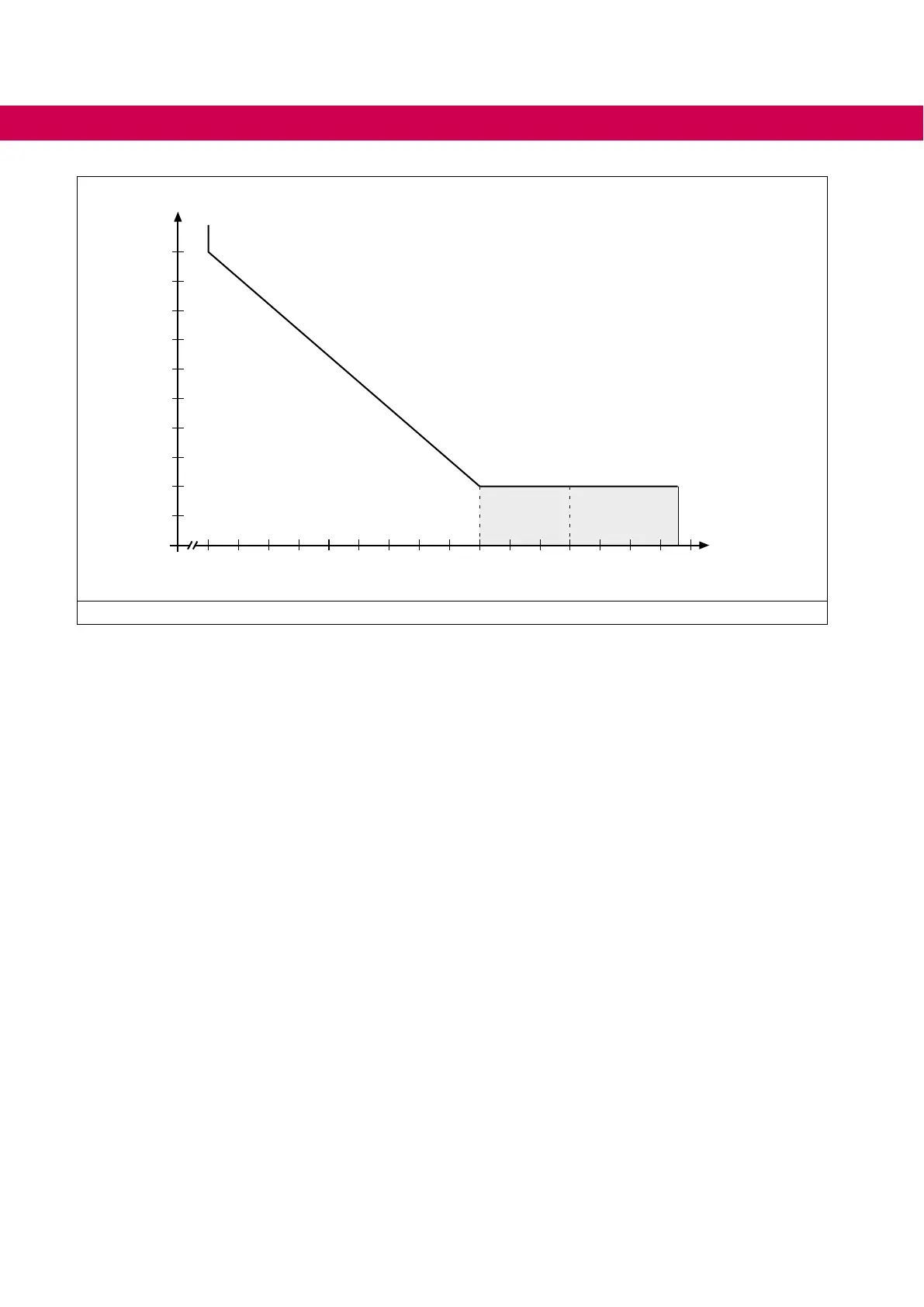

Figure 2: Overload characteristic
On exceeding a load of 105% the overload integrator starts. When falling below the
integrator counts backwards. If the integrator achieves the overload characteristic that
corresponds to the drive converter, „ERROR overload“ is triggered
After a cooling period the message „no ERROR overload“ is displayed. The error can
be reset now. The drive converter must remain switched on during the cooling period.
