DIMENSIONS AND WEIGHTS

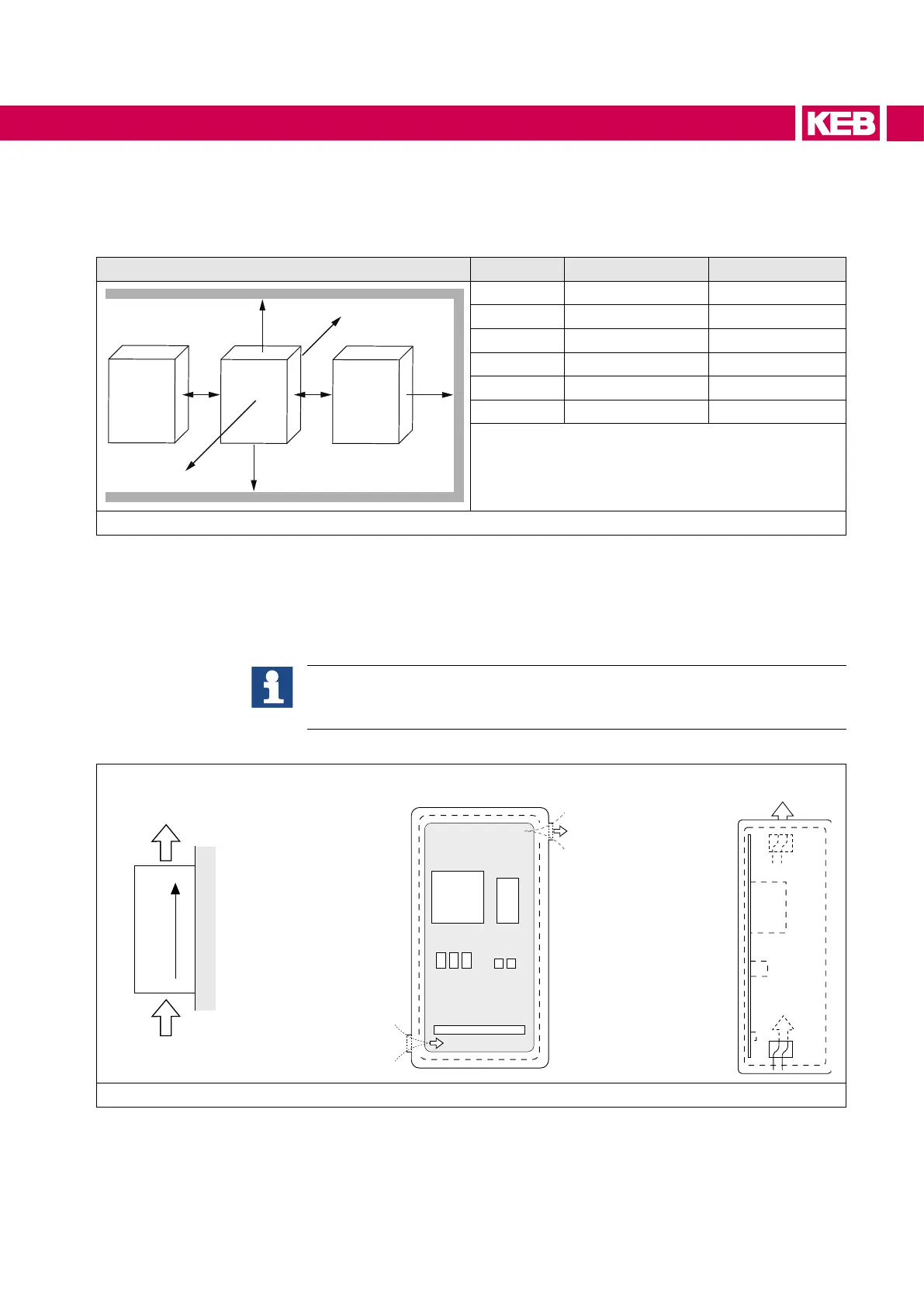

3.3.3 Control cabinet installation
The power dissipation for the control cabinet dimension is to be taken from the technical
data. => „3.2 Technical data 400V devices“.
Mounting distances Dimension Distance in mm Distance in inch
A
B
D
E
F
C
D
A 150 6
B 100 4
C 30 1.2
D 0 0
E 0 0
F
1)
50 2
1)
Distance to preceding elements in the control cab-
inet door.
Figure 5: Mounting distances
3.3.3.1 Ventilation in the control cabinet
If construction-conditioned the control cabinet cannot be without indoor ventilation, ap-
propriate 󰘰lters must avoid suction of foreign objects.
Installation of the drive converter
For reliable operation, the drive converter must be mounted without clearance
on a smooth, closed, bare metal mounting plate.
Direction of the air
ow
Front and side view of the coolant inlet
Coolant outlet
Coolant inlet
Figure 6: Control cabinet ventilation
