EN
1502756-02 - 145 -

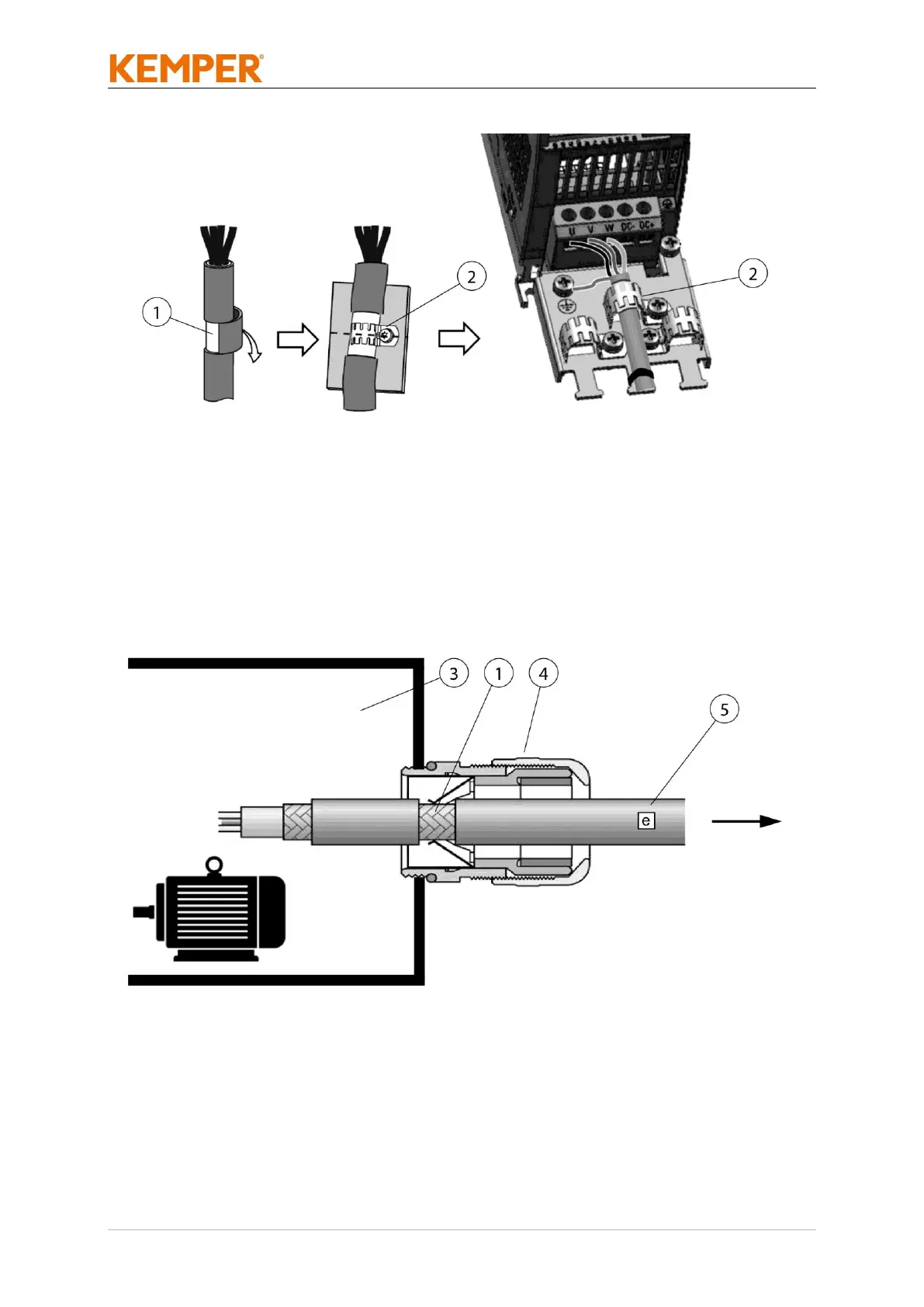

Fig. 75: Connecting the motor cable shielding
3. Expose the shield (Pos. 1) by removing the cable insulation.
4. Connect the motor cable shielding according to (Pos. 2).
Fig. 76: Connecting the motor cable shielding
