Keysight N5221A/22A Service Guide 2-3
General Product Information
Analyzer Options, Accessories and Upgrades Available
Analyzer Options, Accessories and Upgrades Available
To see a list of the options, accessories, and upgrades available for the network
analyzers, including ordering information, refer to the Keysight PNA Family
Microwave Network Analyzers Configuration Guide, available online at
http://literature.cdn.keysight.com/litweb/pdf/5990-7745EN.pdf.
Pulse I/O Adapter-N1966A
An adapter for connecting between the analyzer’s rear-panel PULSE I/O
connector and the coaxial inputs and outputs of external pulse generators and
external pulse modulators. The adapter contains 11 SMB-male coaxial
connectors and a mating connector for the rear-panel PULSE I/O connector.
This adapter can be ordered as model number N1966A.

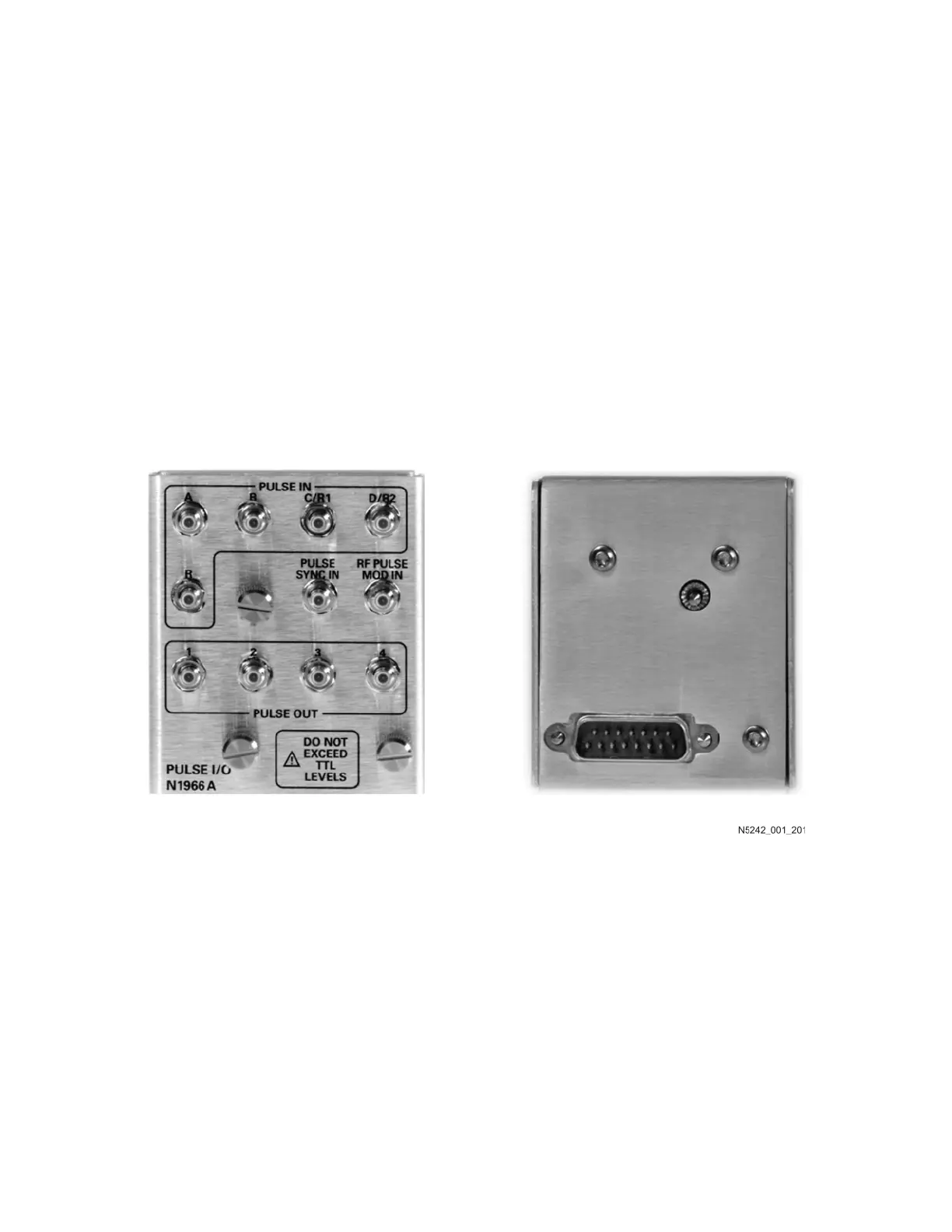

Figure 2-1 Pulse I/O Adapter
