Replaceable Parts
Replaceable Parts Listings
6-
Top Hardware and Miscellaneous Parts, All Options

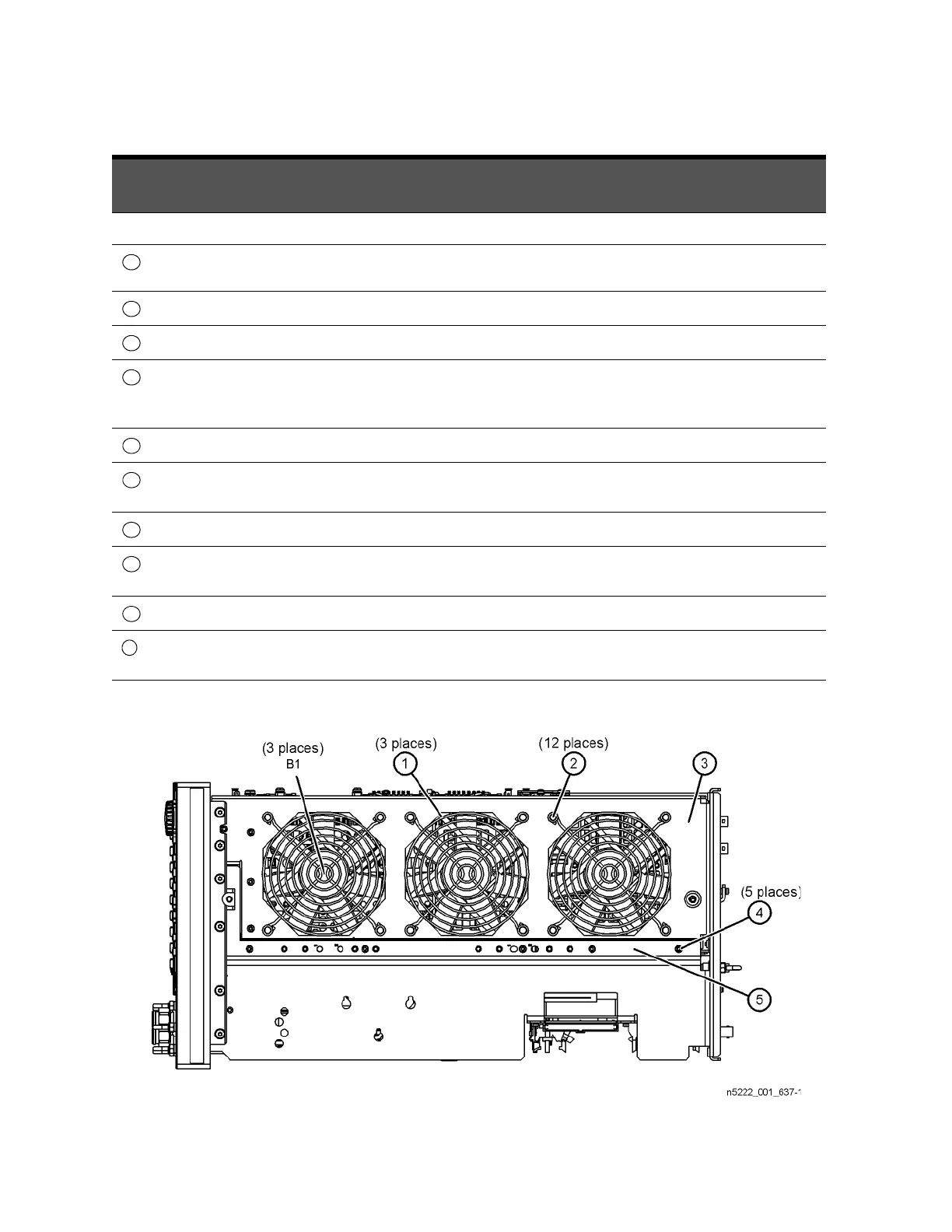

Figure 6-41 Top Hardware and Miscellaneous Parts, Side View, All Options
Reference
Designator
Part Number Qty Description
B1 3160-4199 3 Fan
3160-0281
Was 3160-4198
3 Fan guard
0361-1272 12 Fan rivet
N5242-00015 1 Fan bracket
0515-0372 12 Machine screw, M3.0 x 8, pan head (5 to attach fan bracket to chassis, 4 to
attach power supply bracket to inner panels, left side bracket, and fan bracket,
and 3 to attach A14 system motherboard to the chassis.)
Chassis (Refer to “Internal Hardware and Miscellaneous Parts, All Options” on page 6-101.)
0515-1946 3 Machine screw, M3.0 x 6, flat head (To attach power supply bracket to power
supply.)
W1312-00062 1 Power supply bracket
0515-0375 6 Machine screw, M3.0 x 16, pan head (To attach midplane board to midplane
bracket.)
0400-0353 6 Midplane board grommets
0515-0380 12 Machine screw, M4.0 x 10, pan head (To secure A4, A5, A8, A11, A12, and A13
boards.)
1
2
3
4
5
6
7
8
9
10
