Keysight N5221A/22A Service Guide 7-47
Repair and Replacement Procedures
Removing and Replacing the A34–A37 Source Attenuators, the A38–A41 Bias Tees,
and the A42–A45 Receiver Attenuators

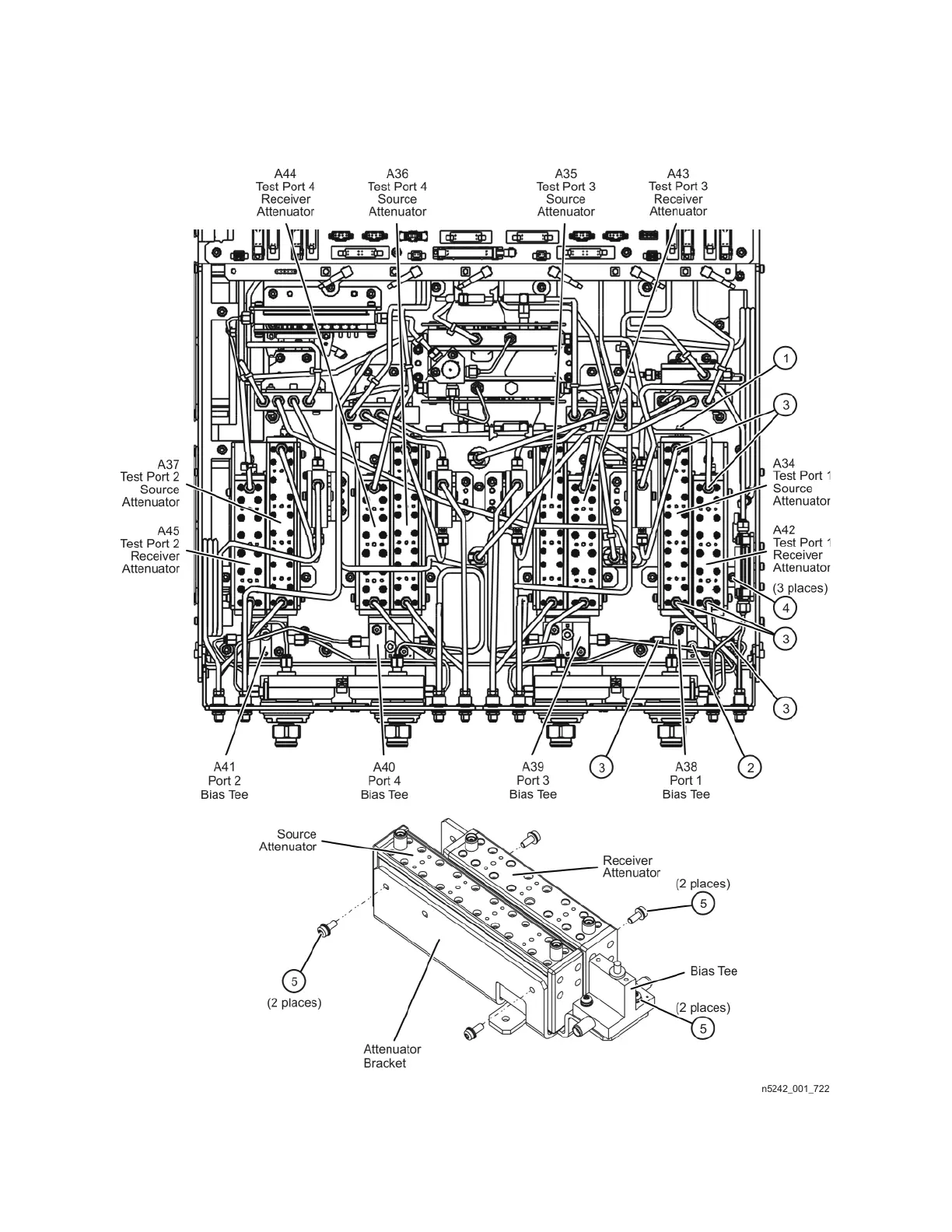

Figure 7-20 Source and Receiver Step Attenuators and Bias Tees Removal
