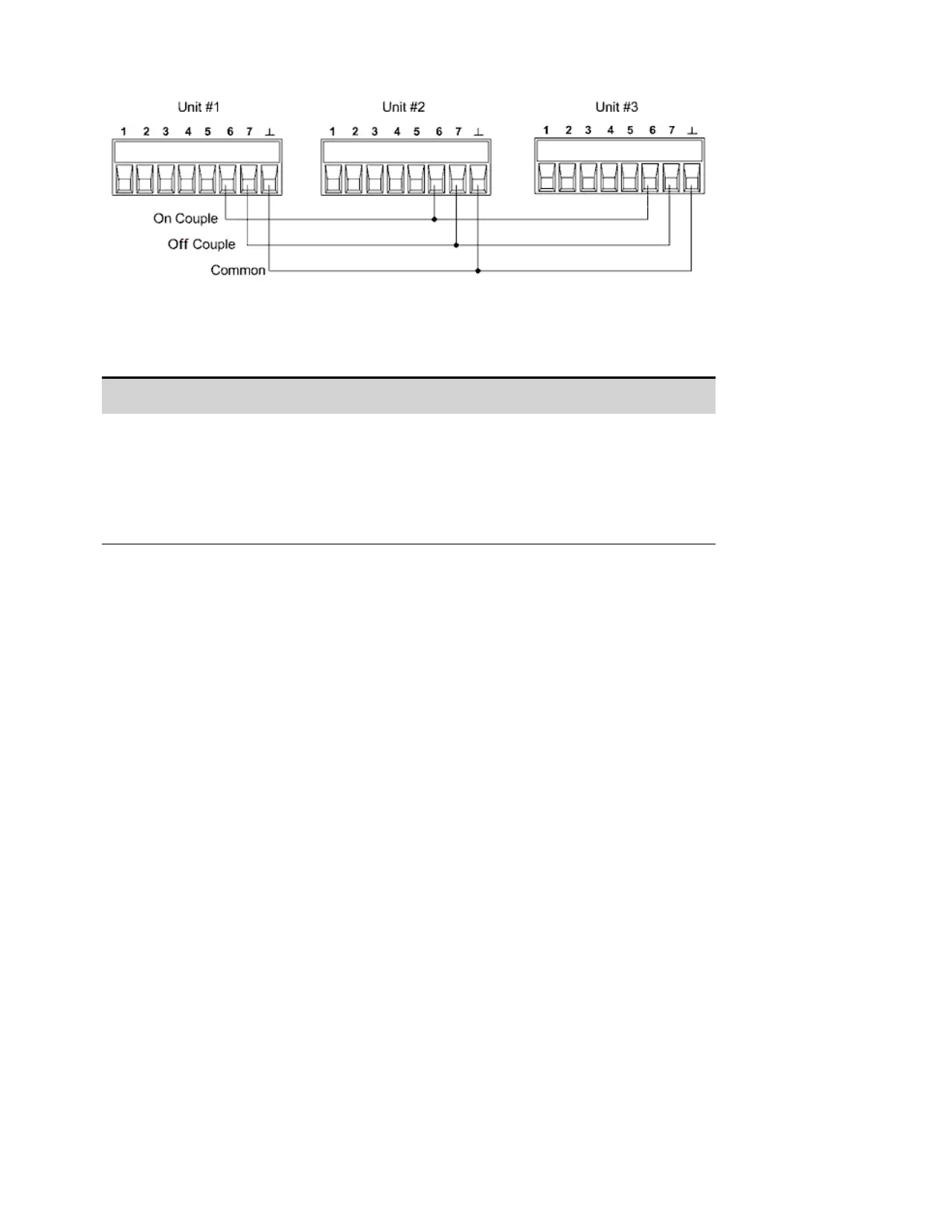

In this example, pin 6 is configured as the output On control. Pin 7 is configured as the output Off
control. The ground or Common pins are connected together.
Front Panel Menu Reference SCPI Command
Select System\IO\DigPort\Pins.
Select pin 6, then Function, then On Couple.
Select Pins., selectpin7, then Function, then Off Couple.
Repeatthese steps for units #2 and #3
To setpin 6 of unit1 as the ON control:
DIG:PIN6:FUNC ONC
To configure pin 7 of unit1 as the OFF control:
DIG:PIN7:FUNC OFFC
Repeatthese commands for units 2 and 3.
Once configured and enabled, turning the output on or off on any coupled unit will cause all coupled
units to turn on or off according to their user-programmed delays.
Keysight N6900/N7900 Series Operating and Service Guide 157
4 Using the Advanced Power System
