355
Keysight Handheld Analyzers
N99xxA User’s Guide

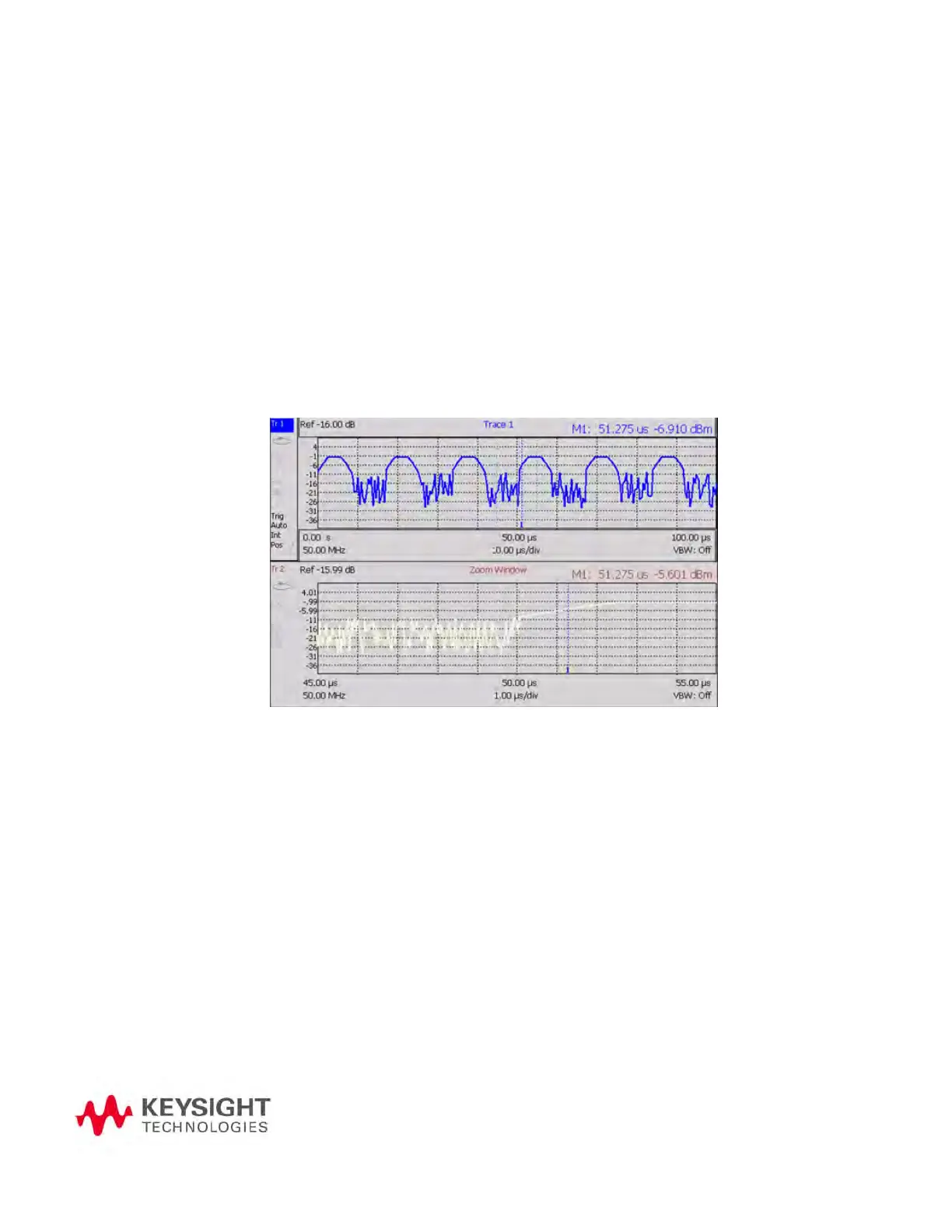

19 Pulse Measurements Mode – Option 330
Pulsed power meter measurements, available with Option 330, are made with
Keysight U2020 X-Series USB Peak Power Sensors. These sensors are capable
of detecting, measuring, and storing data from a train of pulses at the RF input.
This data is queried from the USB Power Sensor and displayed on the FieldFox
screen. You can then analyze the data using several selectable settings.
In this Chapter
“Supported Power Sensors” on page 357
“Measurement Selection” on page 358
“Frequency / Time” on page 358
“Zoom Window” on page 359
“Scale” on page 360
“Averaging ” on page 360
“Video Bandwidth” on page 361
“Single or Continuous Measure” on page 361
“Resolution” on page 362
