Keysight M8194A - M8194 A Soft Front Panel

Keysight M8194A 120 GSa/s Arbitrary Waveform Generator User Guide 35
M8194A Soft Front Panel 3
M8194A Soft Front Panel

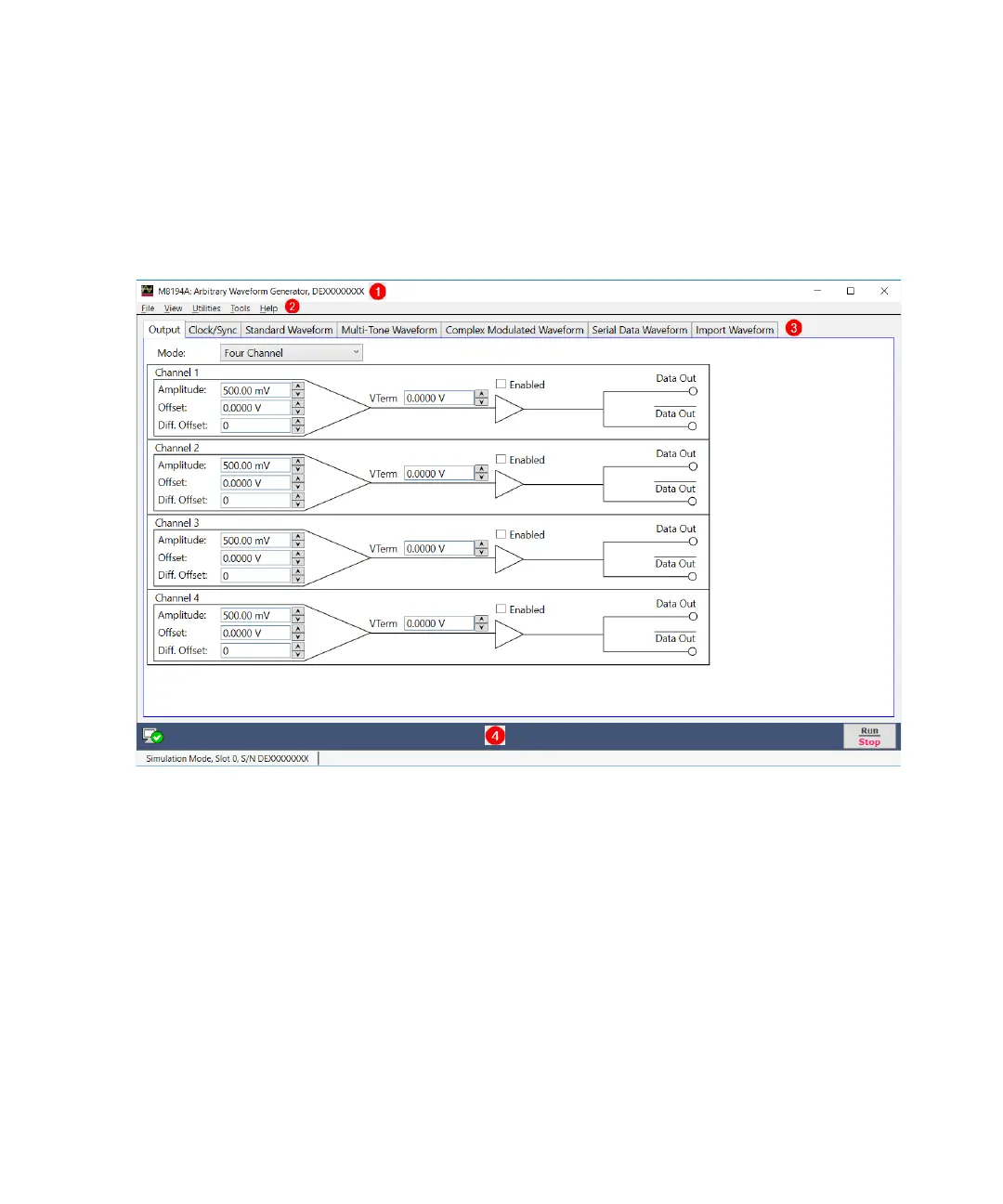

Figure 5 on page 35 shows the M8194A Soft Front Panel.
Figure 5 M8194A soft front panel
It includes the following GUI elements:
1Title Bar
2 Menu Bar
3Tabs
4Lower Pane
The detailed information on these GUI elements are described in the
sections, that follow.
