Keysight M8194A 120 GSa/s Arbitrary Waveform Generator User Guide 81
M8194A Soft Front Panel 3
expression Shift = (Channel Number -1) * (Seq. Shift). Unshifted
PRBS sequences always start with the longest run of ‘1’ for that
particular sequence.

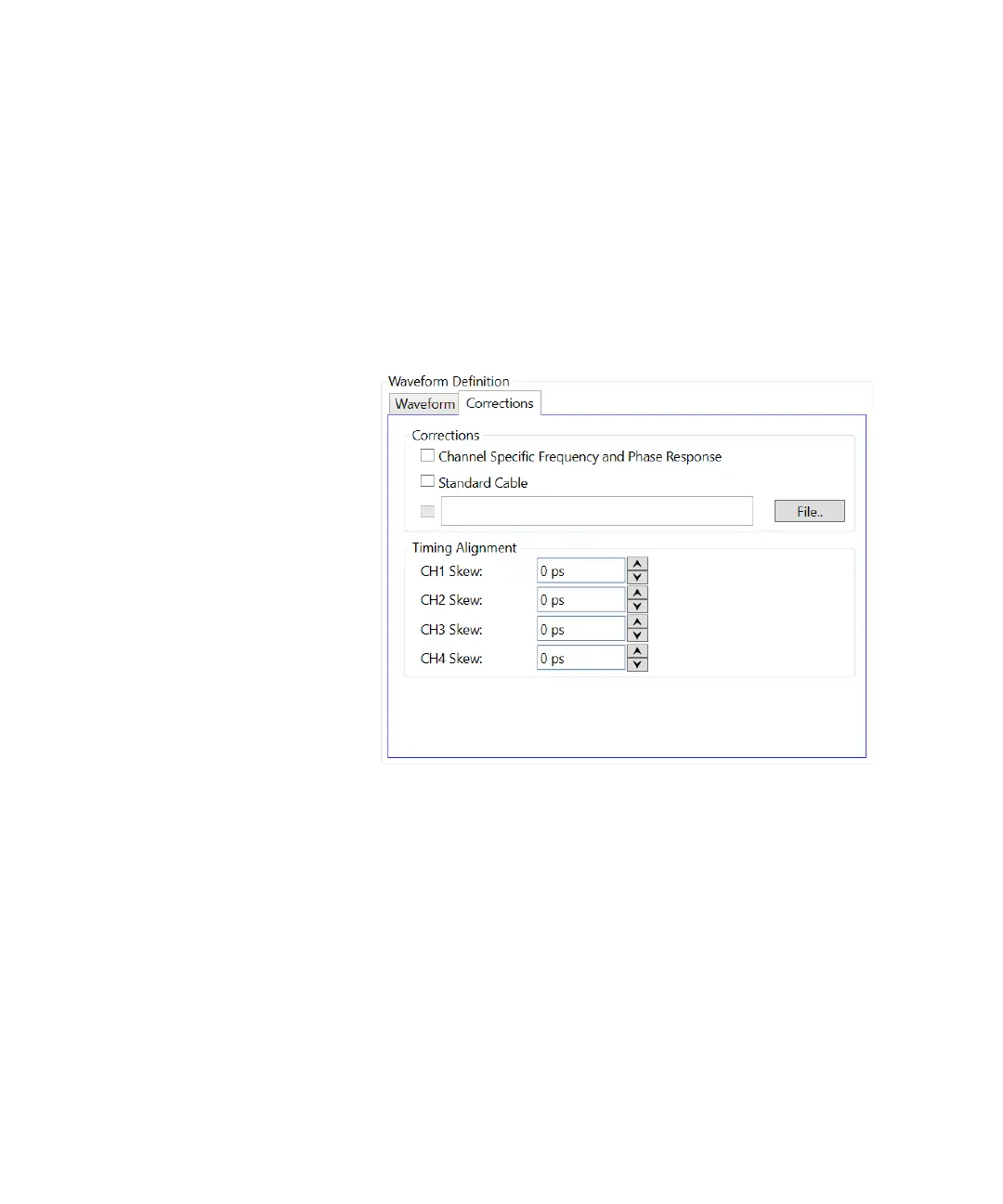

Corrections Tab:
The purpose of these controls is the correction (de-embedding) of different
linear distortions and differential delays added by cabling and fixturing,
PCB interconnections, etc.
The following controls are included:.
• Channel Specific Frequency and Phase Response
This check box activates the application of corrections based on
frequency-domain calibration data stored in the target instrument in
non-volatile memory. It improves flatness and linear phase distortions.
• Standard Cable
This check box activates the application of correction factors based on
a typical 2.4 mm connector, high-quality, high-bandwidth 0.85m cable
(Huber+Suhner type N4910-61601).
To Next Page
