Kia Ceed - Back up Lamp (Bulb Type) Bulb Replacement (Rear Combination Lamp Type A, B)

8109
Maintenance
9. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
10. Install the rear combination lamp
assembly to the body of the vehi-
cle.
11. Install the service cover.
Back up lamp (Bulb type) bulb
replacement (Rear combina-
tion lamp Type A, B)
1. Open the tailgate.
2. Open the service cover.
3. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4. Remove the bulb from bulb-socket
by pulling it out.
5. Insert a new bulb by inserting it
into the bulb-socket.
6. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
7. Install the service cover by putting
it into the service hole.

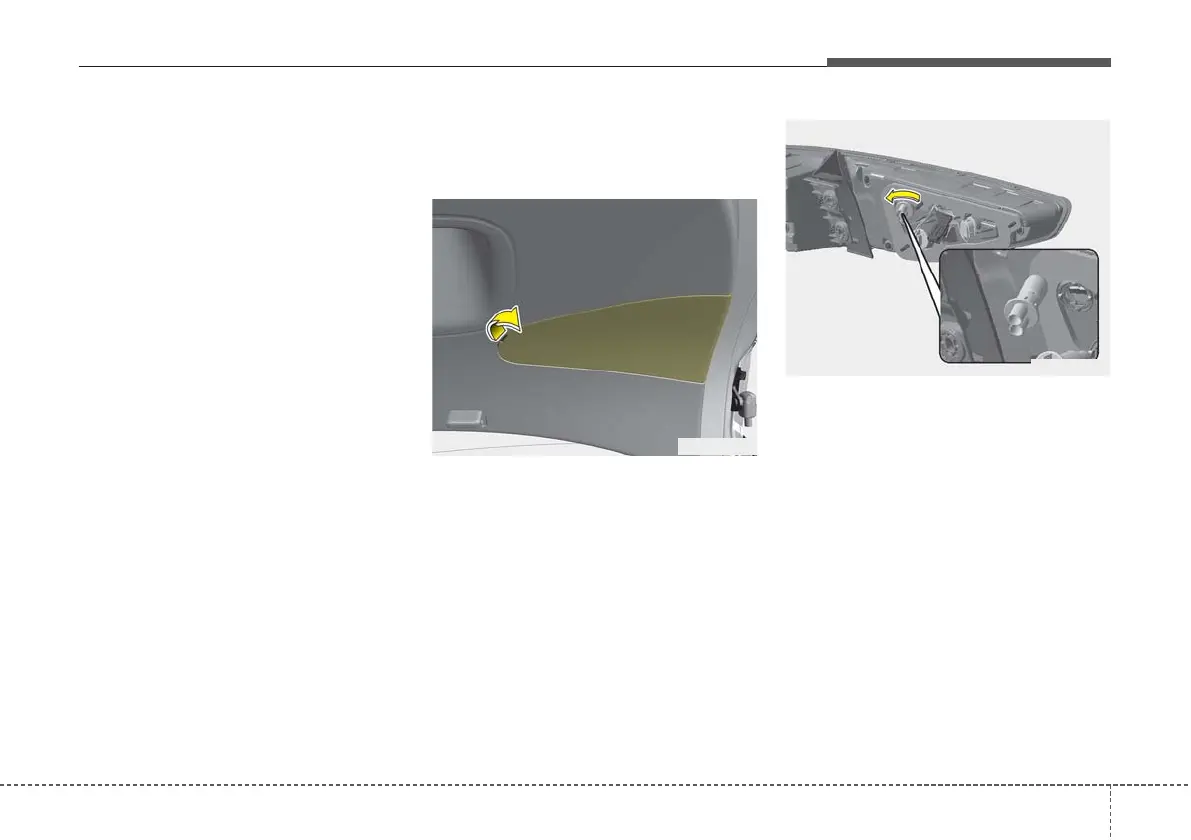

OCD078057
OCD078058
