Maintenance
W3
H3
OYB076080

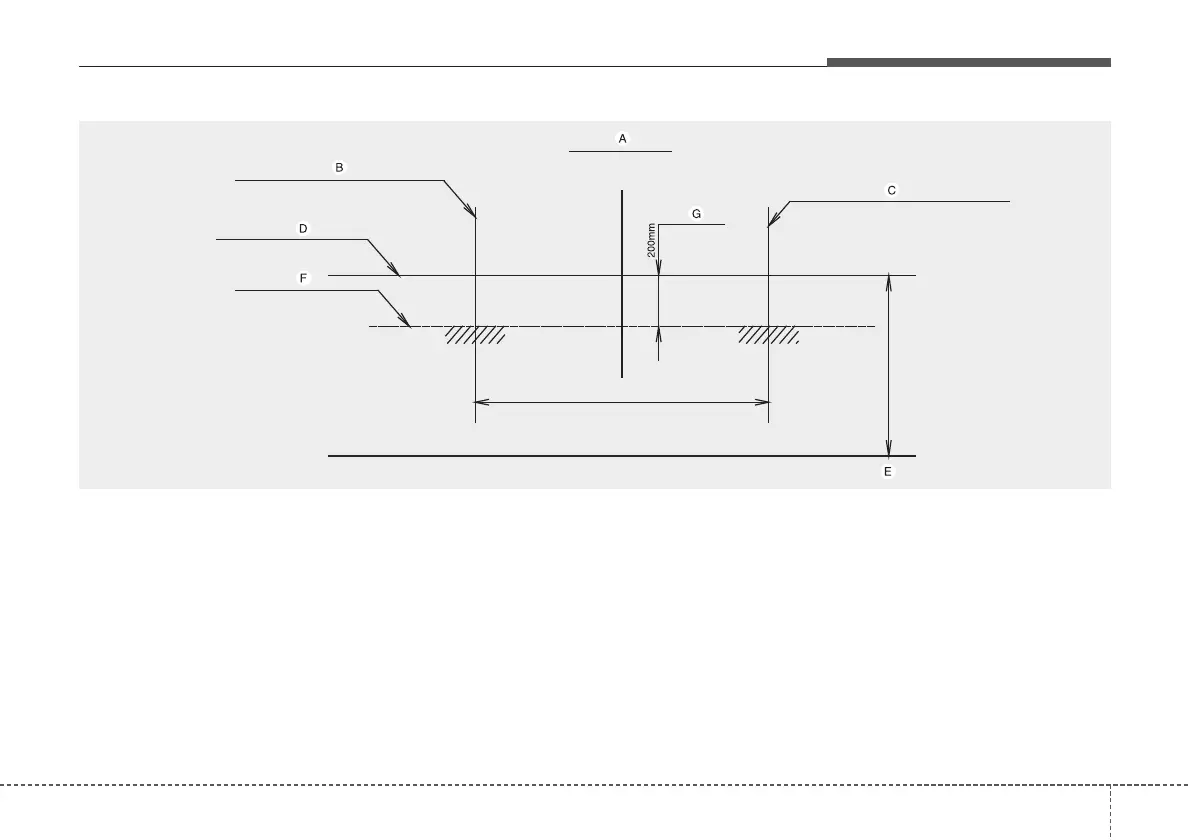

Front fog lamp
1. Turn the front fog lamp on without the driver aboard.
2. The cut-off line should be projected in the allowable range (shaded region).
A : Vehicle axis
B : Vertical line of the left fog lamp bulb centre
C : Vertical line of the right fog lamp bulb centre
D : Horizontal line of fog lamp bulb centre
E : Ground
F : Cut-Off line
G : Upper limit
■ Based on 10m screen
