Profile Graph Display
The PWI for the profile is displayed in the bottom-Left corner of this screen. If the measured PWI is below
100%, the value will be displayed in a Green font. If the measured PWI is 100% or higher, the value will
be displayed in a Red font.
This enables you to easily identify if the profile is in or out of spec.

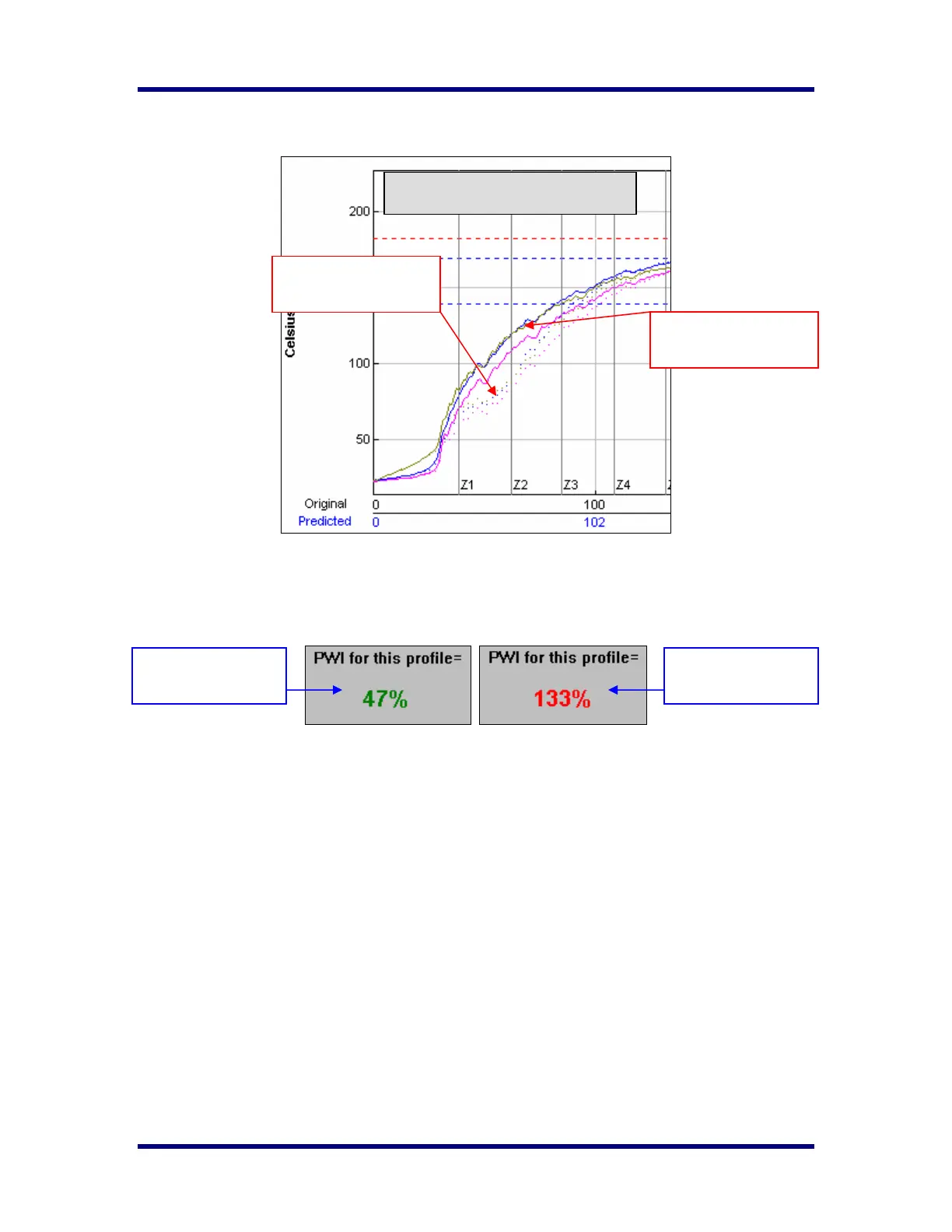

Original profile plot
(solid lines)
Predicted profile plot
(dotted lines)
Profile Graph
A PWI under 100%
is acceptable
A PWI above 100%
is unacceptable
