O-1 April 200376-000000-001
PEGAsys™ LV
APPENDIX O
CENTRAL STATION OPERATION
O-1 CENTRAL STATION OPERATION
For central station operation, the PEGAsys LV control panel
must be configured for central station use through PCS
menu (Network Settings). A Silent Knight DACT—Model
5104—must be wired to the PEGAsys LV control panel, as
shown in Figure O-1. See the Model 5104 installation
manual for information regarding connection of the DACT
to the telephone line for alarm and trouble transmission(s).
8
9
10
11
12
13
14
15
16
17
18
Silent Knight DACT Model 5104 PCB
PEGAsys LV CCM PCB
NO NC C
Fault Relay
NO NC C
Volt Free
Relay 2
Zone 3 Alarm
Zone 4 Trouble
4.7k
4.7k

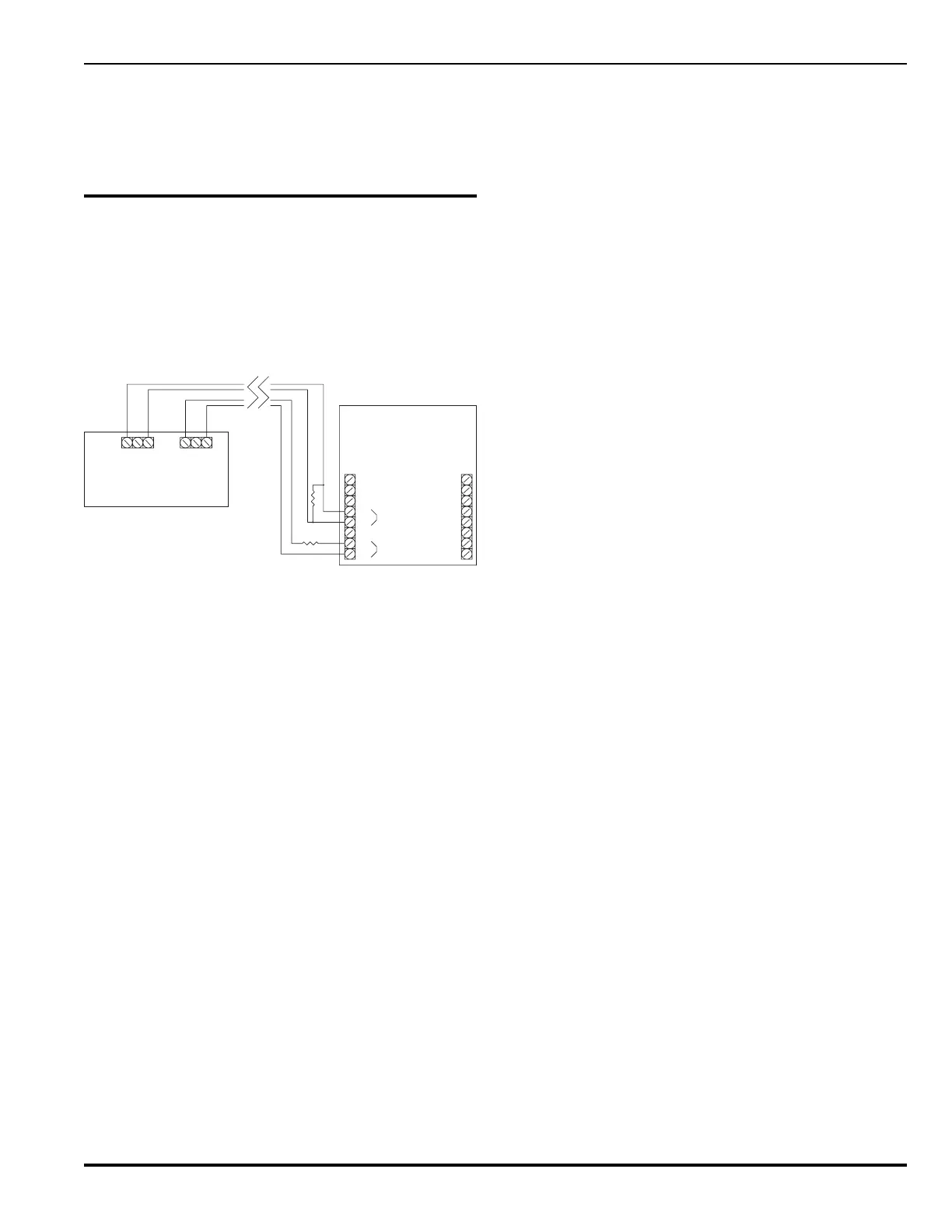

Figure O-1. Wiring for DACT
