PEGAsys™ LV
1-2.11 Loop Isolator Devices
The SmartOne series of loop isolation devices, shown in
Figures 1-13 through 1-15, offer optional loop isolation
which protects the loop from wire-to-wire short conditions
(NFPA Style 7.0).

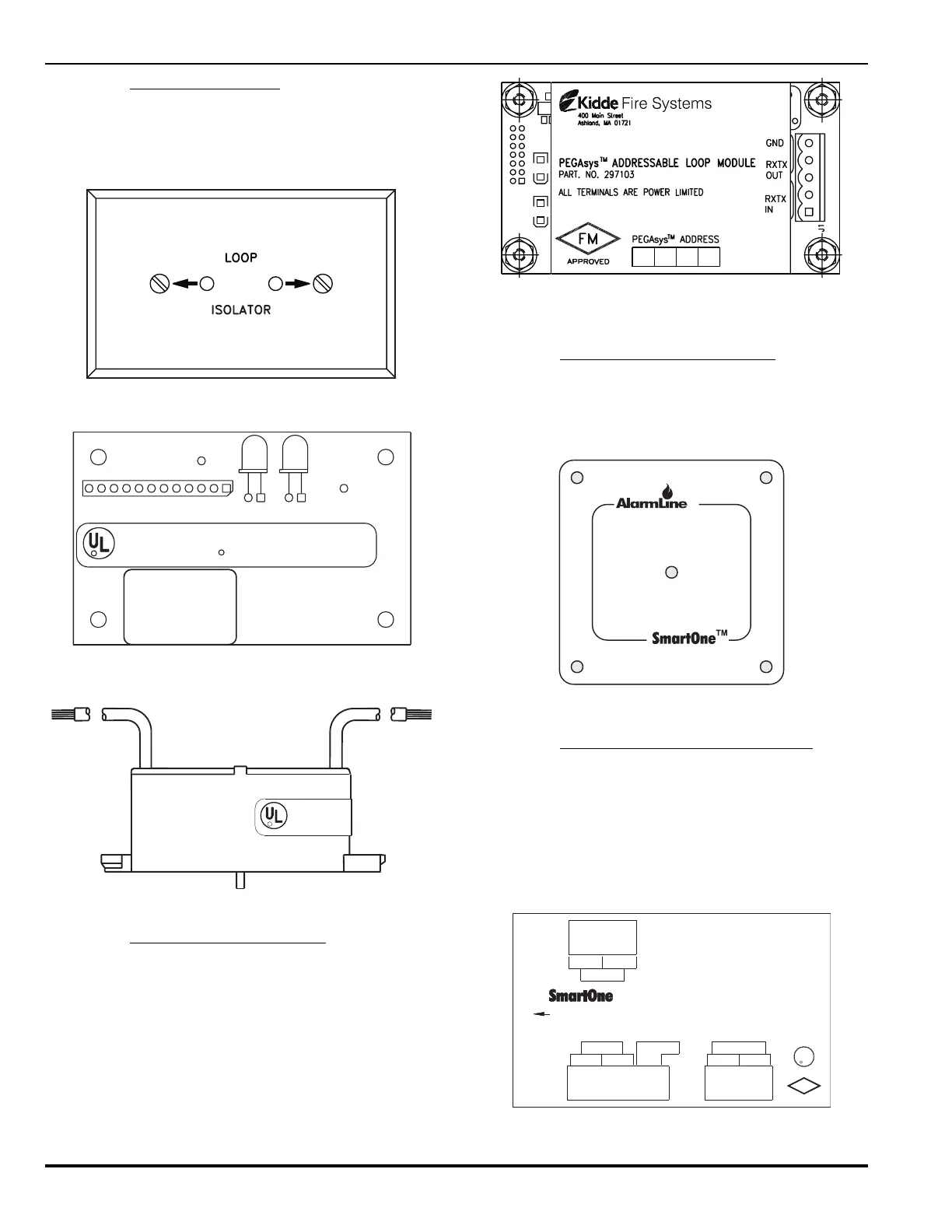

Figure 1-13. Loop Isolator, Stand-Alone
LOOP ISOLATOR
RX/TX
KIDDE-FENWAL, INC.
ASHLAND, MA 01721
SHORT-1 SHORT-2
DS2 DS1
J1
FOR MODULE INSTALL.
P/N 76-100016-001
INSTALLATION MANUAL
REFER TO
PROCEDURES
Laboratories Inc.
Underwriters
R
LISTED
R
Figure 1-14. Loop Isolator, RX/TX Mount
Laboratories
Underwriters
R
LISTED
Figure 1-15. Loop Isolator, 6-inch Detector Base Mount
1-2.12 ORION XT Interface Module
The PEGAsys Addressable Loop Module (PALM) permits
direct connection of an ORION XT High-Sensitivity Smoke
Detector (HSSD) to a signaling line circuit of the PEGAsys
LV Control Unit. The ORION XT reports pre-alarm, alarm
and trouble status by individual location (i.e., address) to
the PEGAsys LV Control Unit via the PALM.
The PALM is housed within the ORION XT HSSD enclo-
sure and plugs into a receptacle on the Detector's printed
circuit board. (See Figure 1-16.)
Figure 1-16. PALM Interface Module for
ORION XT HSSD
1-2.13 Addressable AlarmLine Module
The Addressable AlarmLine Module (AAM) permits an
AlarmLine sensor cable to be directly interfaced to the
PEGAsys LV Control Unit. Refer to Appendix M for a full
description of this Module. (See Figure 1-17.)
TM
Figure 1-17. Addressable AlarmLine Module
1-2.14 Addressable Signal/Sounder Module
The Addressable Signal/Sounder Module (ASM) permits
notification appliances to be controlled via commands is-
sued from the PEGAsys LV Control Unit’s signaling line
circuit. The ASM is designed to mount in a standard elec-
trical box. (See Figure 1-18.)
Refer to Appendix K for additional details on the Address-
able Signal/Sounder Module.
A B BA
-+-+
+ - - +
KIDDE-FENWAL, INC.
ASHLAND, MA 01721 U.S.A.
CAT. NO. 70-200200-001
INSTRUCTIONS P/N 06-235717-001
INSTRUCTIONS P/N 06-235717-001
ALL OTHERS - POWER LIMITED
ALL OTHERS - POWER LIMITED
DEVICE
ADDRESS #
____
AUX./AUDIO MODE
SETTINGS
PC LINE TERMINALS - POWER LIMITED
PC LINE TERMINALS - POWER LIMITED
ADDRESSABLE SIGNAL/SOUNDER MODULE (ASM)
ADDRESSABLE SIGNAL/SOUNDER MODULE (ASM)
____
INSTRUCTIONS P/N 06-235717-001
INSTRUCTIONS P/N 06-235717-001
ADDRESS #
SETTINGS
AUDIO
P1=1&2
MODE
S1=3 ON
AUX. IN
+ - + -
TROUBLE
CKT.
-
OUTPUT CKT.
-+ +
AUX./AUDIO MODE
AUXILIARY
MODE
P1=2&3
S1=1&2 ON
PC LINE
A B A B
DEVICE
ALL OTHERS - POWER LIMITED
ALL OTHERS - POWER LIMITED
CAT. NO. 70-200200-001
ASHLAND, MA 01721 U.S.A.
KIDDE-FENWAL, INC.
FM
APPROVED
R
L
U
TM
Figure 1-18. Addressable Signal/Sounder Module
