K-1 April 200376-100016-002
PEGAsys™ LV
APPENDIX K
ADDRESSABLE SIGNAL/SOUNDER MODULE
K-1 INTRODUCTION
The SmartOne
®
Addressable Signal/Sounder Module
(ASM) is an intelligent field device that contains its own
microprocessor, 4K of memory and all necessary electron-
ics to provide standard notification or audio output. Con-
nection is via the SmartOne
compatible control panel’s
power/communication line. This component is a UL Listed
field device.
The ASM can be individually field programmed via hard-
ware to support notification appliances and NFPA Style Y
(Class B) or Style Z (Class A) operation. See Figure K-2
for audio/auxiliary notification appliance switch and jumper
selections, and NFPA operation Style Y/Z terminal selec-
tions.
Note: The ASM is not intended to be used as a releas-
ing device and is not compatible with solenoids or
squibs.
For installation details and complete electrical and mechani-
cal specifications, see the ASM Installation Data Sheet
(P/N 06-235717-001).
A B BA
-+-+
+ - - +
KIDDE-FENWAL, INC.
ASHLAND, MA 01721 U.S.A.
CAT. NO. 70-200200-001
INSTRUCTIONS P/N 06-235717-001
INSTRUCTIONS P/N 06-235717-001
ALL OTHERS - POWER LIMITED
ALL OTHERS - POWER LIMITED
DEVICE
ADDRESS #
____
AUX./AUDIO MODE
SETTINGS
PC LINE TERMINALS - POWER LIMITED
PC LINE TERMINALS - POWER LIMITED
ADDRESSABLE SIGNAL/SOUNDER MODULE (ASM)
ADDRESSABLE SIGNAL/SOUNDER MODULE (ASM)
____
INSTRUCTIONS P/N 06-235717-001
INSTRUCTIONS P/N 06-235717-001
ADDRESS #
SETTINGS
AUDIO
P1=1&2
MODE
S1=3 ON
AUX. IN
+ - + -
TROUBLE
CKT.
-
OUTPUT CKT.
-+ +
AUX./AUDIO MODE
AUXILIARY
MODE
P1=2&3
S1=1&2 ON
PC LINE
A B A B
DEVICE
ALL OTHERS - POWER LIMITED
ALL OTHERS - POWER LIMITED
CAT. NO. 70-200200-001
ASHLAND, MA 01721 U.S.A.
KIDDE-FENWAL, INC.
FM
APPROVED
R
L
U
TM

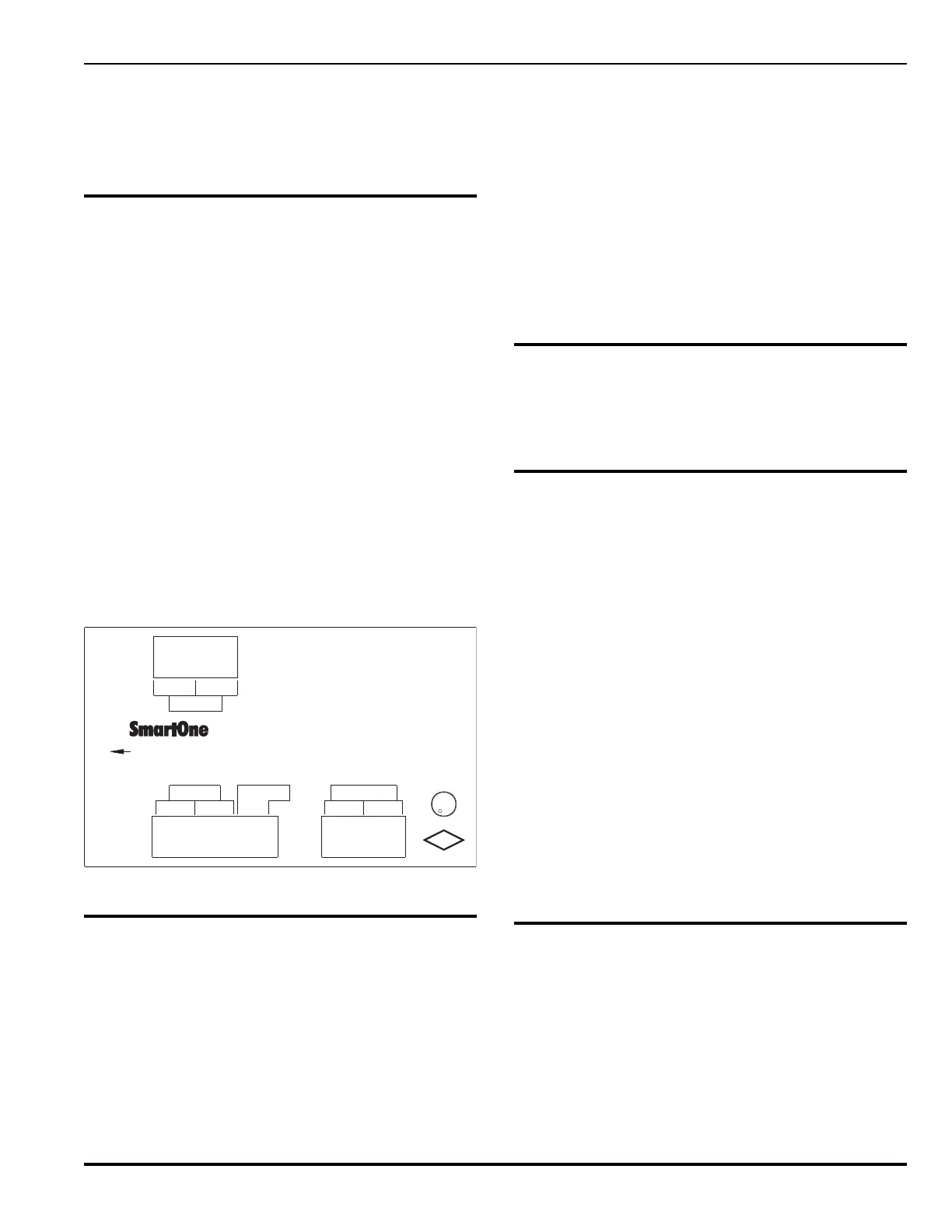

Figure K-1. ASM Front Panel
K-2 ADDRESSING AND REGISTRATION
As with any SmartOne loop device, addressing is done via
the Kidde hand-held programmer (P/N 74-200013-001) or
the PEGAsys LV control panel menu/keypad, as described
in Chapter 2 of this manual.
Module-programmable parameters include owner’s-loca-
tion message, non-silenceable (waterflow), walk test, drill
mode and silence. The programming process is described
in PEGAsys™ Configuration Software (PCS) manuals
(P/Ns 76-014 and 76-015).
Addressing and programming the module's registration into
the PEGAsys LV system is described in Paragraph 2-8
(and sub-paragraphs) of this manual. Registration of the
module at the PEGAsys LV panel is mandatory to ensure
proper operation.
K-3 OPERATION
Once installed and configured, the ASM requires little or
no maintenance. The module's 24 Vdc or 25/70 Vac modes
can be changed from the factory defaults using switch S1
and jumper P1 (see Figure K-1).
K-4 FUNCTIONAL DESCRIPTION
The SmartOne Addressable Signal/Sounder Module (ASM)
provides a fully supervised remote-output circuit for con-
nection to either 24 Vdc audible/visual notification signal-
ing devices or 25/70.7 V RMS speakers. The module
provides continuous internal supervision of:
• Alarm contact position.
• Connections to loop voltage and communications.
• Internal power supply.
• Auxiliary power supply connections and status.
• Memory status.
The output circuit is monitored by reverse polarity and will
not actuate into a short. If the circuit has a ground fault,
open, short or a relay contact failure, the device will trans-
mit a specific trouble status.
A status LED is mounted on the unit and indicates the out-
put circuit status by a two second (active) or nine second
(normal) flash interval. A trouble condition inhibits the sta-
tus LED completely.
K-5 MAINTENANCE OR REPLACEMENT
The ASM is shipped from the factory as an assembled
component, and is not field serviceable. Little or no main-
tenance is required.
Testing is accomplished through the testing capabilities of
the PEGAsys LV panel. See Chapter 5, Troubleshooting
and Corrective Maintenance, for particulars. In the event
of a failure, the module should be replaced.
