J-6April 2003 76-100016-002
PEGAsys™ LV
connect board—let it hang down. Data and power lines
will remain connected.
6. Insert the three plastic standoffs that were included
with the NIC into the holes shown in Figure J-5.
7. Carefully plug the NIC into the 20-pin receptacle and
onto the plastic standoffs.
8. Secure upper right corner of NIC with long screw and
spacer. Spacer will separate NIC and the CCM board
and screw will go through to the panel.
9. Replace the display electronics board and reattach the
six threaded spacers.
10. Carefully plug in the membrane keypad and attach the
four screws. Make sure pins and receptacle are prop-
erly aligned.
11. Attach network wiring as previously described.
12. Apply power, reinstall programming and configure the
network using PCS. Refer to Figure J-2.
PORT
P.C.
PORT
PRINT
PORT
DISP
PORT
I/O
RX/TX
PORT
INSERT PLASTIC
STANDOFFS HERE
20-PIN RECEPTACLE
FOR NIC
DISPLAY PORT
PRINT PORT
P.C. PORT
I/O PORT
Rx/Tx PORT
LONG SCREW
AND SPACER
THROUGH HERE

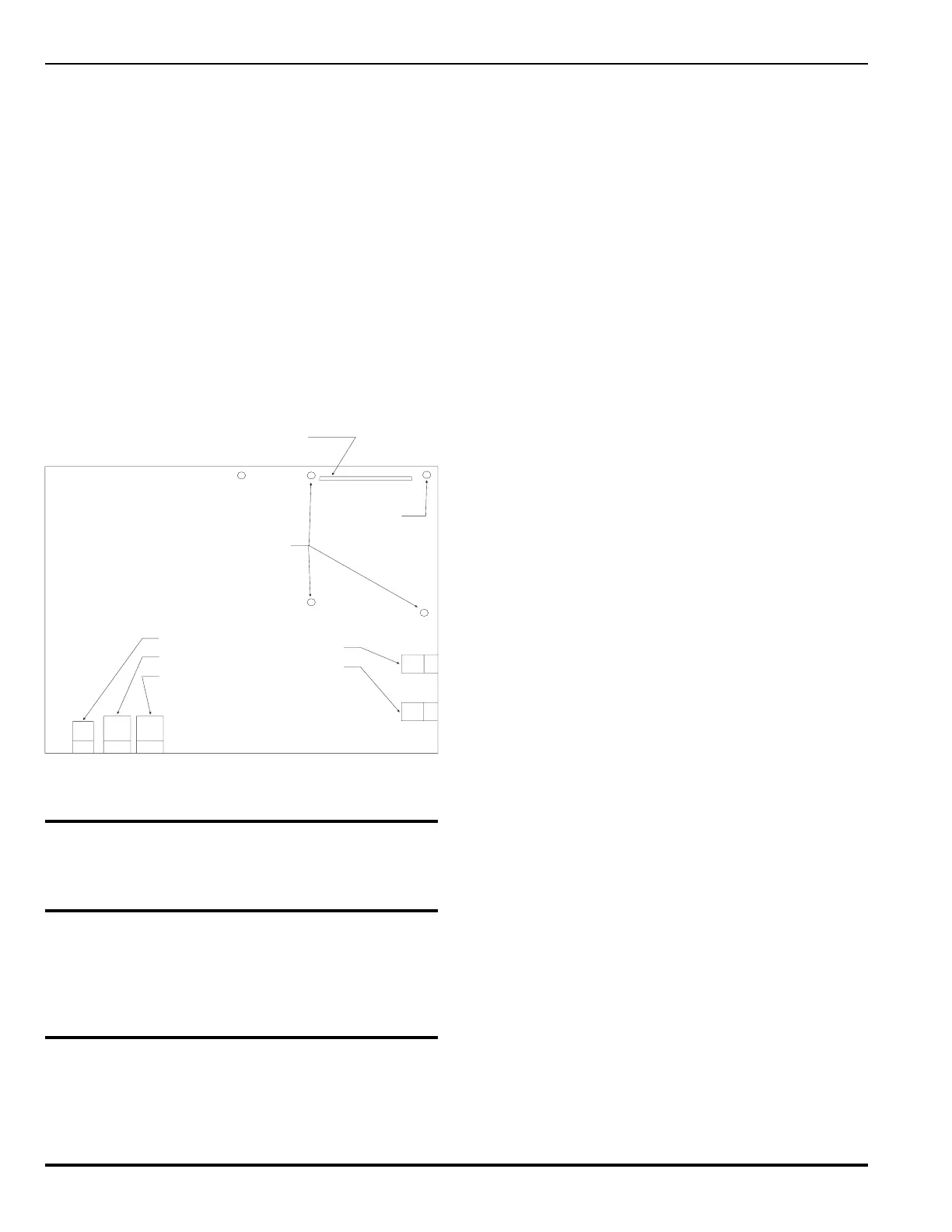

Figure J-5. CCM Board Showing
NIC Attachment Points
J-8 POWER SUPPLY REQUIREMENTS
The NIC is powered by the panel to which it is attached via
the CCM board. No other power connections are required.
J-9 TESTING
Testing is a function of the PEGAsys LV system in which
the NIC is installed. No local test functions exist. For more
information on testing the NIC and the network, see the
PEGAsys Configuration Software (PCS) user's manual.
J-10 SPECIFICATIONS
Input Voltage 24 Vdc
Supervisory Current 50 mA maximum
Alarm Current 50 mA maximum
