I-976-100016-002 April 2003
PEGAsys™ LV
TITLE

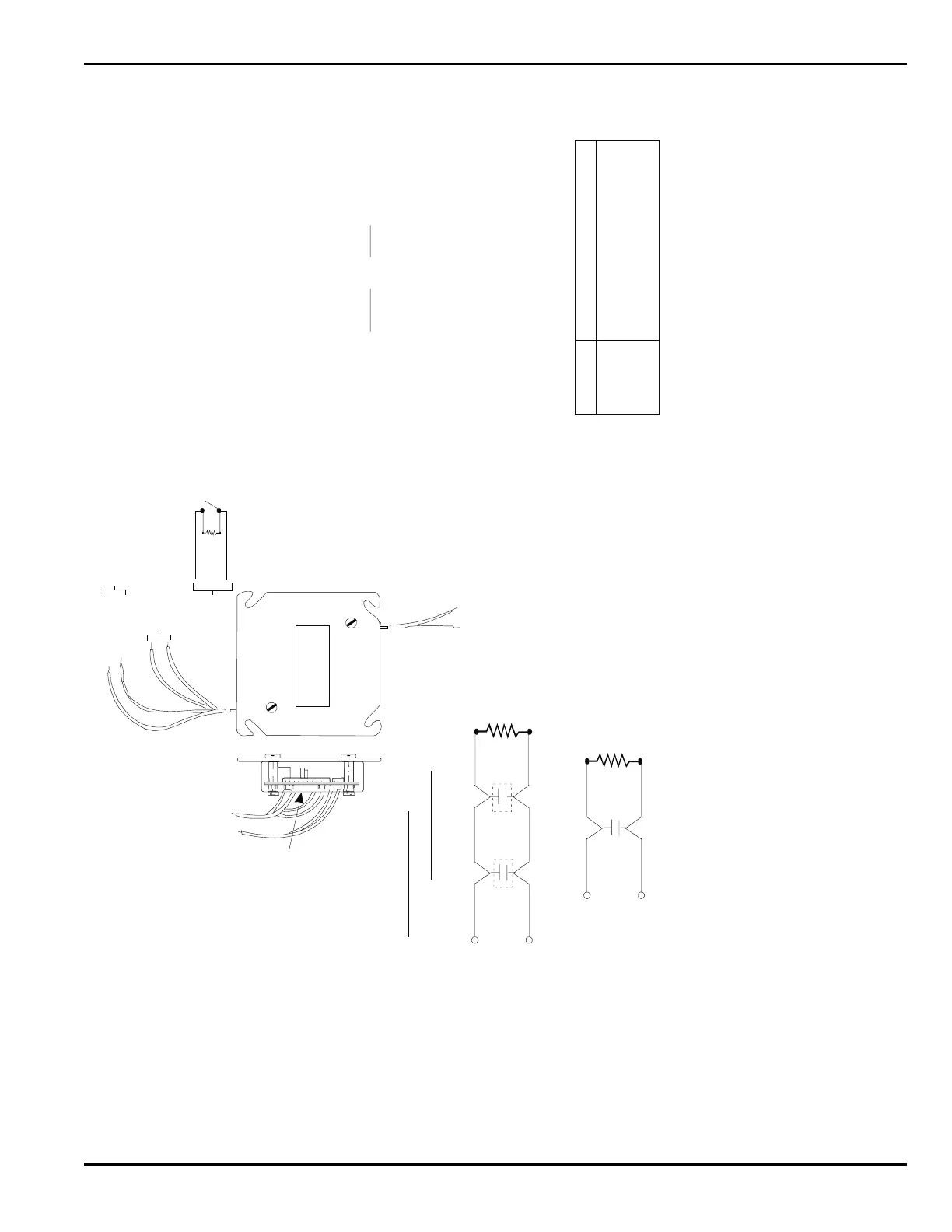

Installation Wiring Diagram
Addressable Contact Input Device
NO/NC (Obsolete)
PROTECTIVE
COVERING
GRAY
ORANGE
BROWN
WHITE
TO CATHODE
TO ANODE
TO
REMOTE
LED
TO REMOVE
CONTACT
DEVICE
N/O
EOL
BN
WH
EOL SEE NOTE 3
UL LABEL
TYPICAL CONFIGURATIONS
BK
RD
SEE NOTE 1
N.O. CONTACT DEVICES
MANUAL PULL STATION
WATERFLOW
SEE NOTE 3
EOL
EOL
NOTES
1. RED AND BLACK WIIRES ARE NON-POLERIZED POWER
INPUTS. REFER TO RX/TX (CAT. NO. 30-402001-000)
WIRING DIAGRAM FOR CONNECTION TOSMART
DETECTOR MULTIPLEX TRUNK CIRCUIT AND
CIRCUIT CHARACTERISTICS.
2. SUPERVISED LINE FOR REMOTE CONTACT DEVICE
CONNECTION. CAUTION: CONTACT DEVICE MUST
BE IN THE SAME ROOM AS ADDRESSABLE CONTACT
INPUT DEVICE, WITH ALL WIRING ENCLOSED IN
CONDUIT, AND A MAXIMUM LENGTH OF 150 FT.
3. EOL RESISTOR: 820 OHM .5 WATT
(FENWAL PART NO. 06-129025-001)
4. TO REMOTE LED (FENWAL PART NO. 70-410001-000)
OBSERVE POLARITY: ORANGE (ANODE), GRAY (CATHODE)
CAUTION: LED MUST BE IN THE SAME ROOM AS
ADDRESSABLE CONTACT INPUT DEVICE, WITH ALL
WIRING ENCLOSED IN CONDUIT AND A MAXIMUM LENGTH
50FT.. LED CIRCUIT IS NOT SUPERVISED.
5. MAXIMUM CURRENT REQUIREMENTS
310uA
380uA
6. SMART DETECTOR PRODUCT NO.’S 70-40XXXX-XXX AND
71-40XXXX-XXX MA
YBEMIXEDONTHESAMEMULTIPLEX
TRUNK CIRCUIT, BUT SHALL NOT EXCEED 255 TOTAL
DEVICES PER CIRCUIT, 2040 PER SYSTEM.
7. TYPICAL PULES RATE:
NORMAL:
9 SECONDS
ALARM:
2 SECONDS
TROUBLE:
NO LED PULSING
8. REFER TO SYSTEM OPERATION MANUAL FOR APPLICATION
OF ADDRESSABLE CONTACT INPUT DEVICE.
9. WIRING INFORMATION SHOWN FOR 70-407002-00X THRU
70-407004-00X.
STANDBYALARM
CAT. NO.
DESCRIPTION
-000
NORMALL
Y OPEN
-001
NORMALL
Y CLOSED
FOR SUPERVISORY USE ONLY
