I-25 August 199976-100016-001
Intelligent Suppression Control/Fire Alarm System
PEGAsys
TITLE

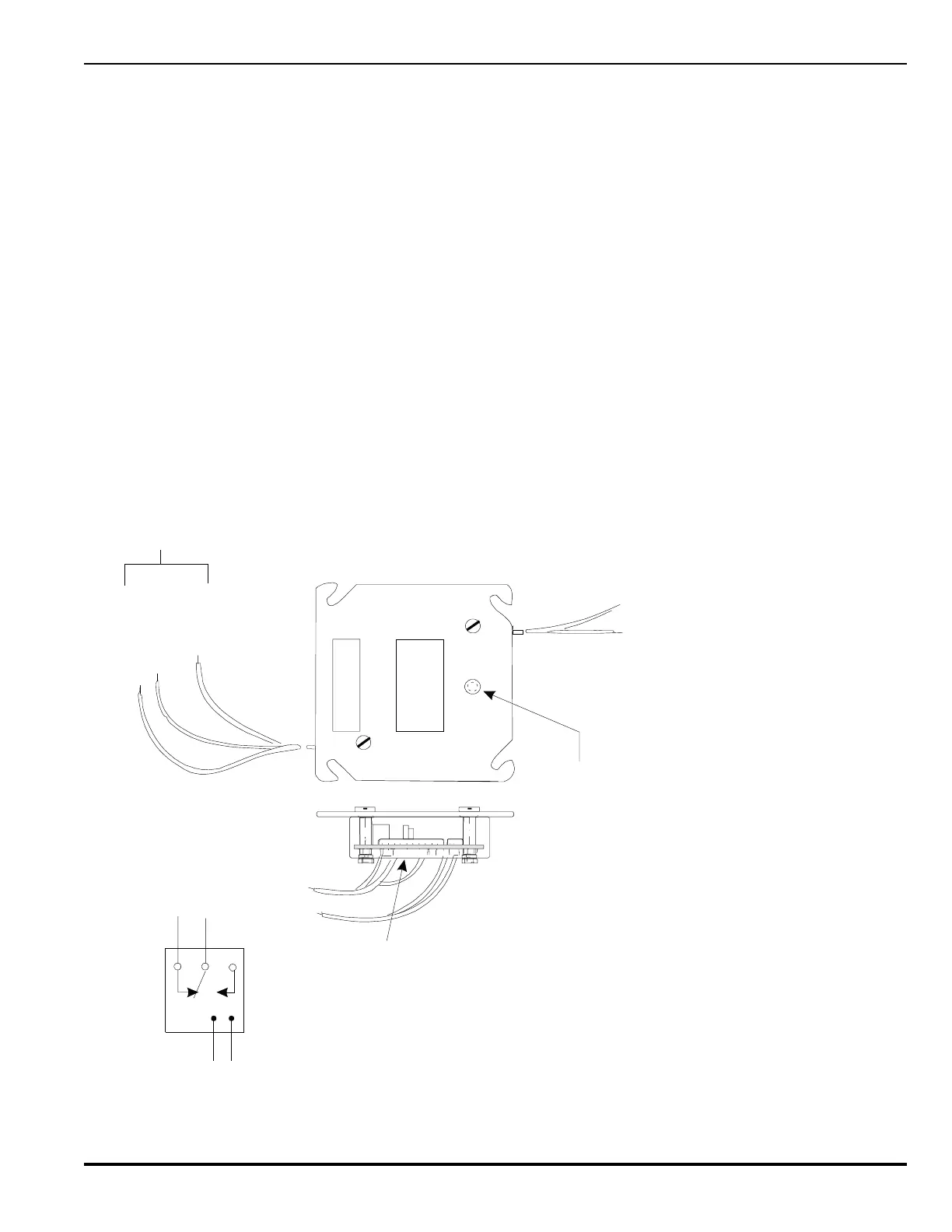

Installation Wiring Diagram
Addressable Relay Output Device
(Obsolete)
DRAWING No.
06-234563-001
REVISION
BA
SHEET
1 of 1
PROTECTIVE
COVERING
UL LABEL
RD
BK
SEENOTES1&9
NOTES
1. RED AND BLACK WIIRES ARE NON-POLERIZED POWER
INPUTS. REFER TO RX/TX (CAT. Number 30-402001-000 &
74-200005-001) WIRING DIAGRAM FOR CONNECTION TO
SMART DETECTOR MULTIPLEX TRUNK CIRCUIT AND
CIRCUIT CHARACTERISTICS.
2. RELAY OUTPUTS ARE NOT SUPERVISED.
RATING: 2A, 30 VDC (RESISTIVE)
.6A, 120 VAC (RESISTIVE)
3. MAXIMUM CURRENT REQUIREMENTS:
STANDBY: 325uA
4.
5. TYPICAL PULSE RATE:
RELAY RESET (STANDBY):
9 SECOND
S
RELAY SET:
2 SECONDS
TROUBLE STATE:
NO LED PULSING
6. REFER TO SYSTEM OPERATION MANUAL FOR APPLICATION
OF ADDRESSABLE RELAY OUTPUT
7. MOUNTS IN 4
“ SQUARE ELECTRICAL BOX.
8. MUST BE INSTALLED IN A U.L. LISTED GANG BOX..
9. WIRING INFORMATION SHOWN FOR 70-408002-000 THRU
70-408003-000.
SMART DETECTOR PRODUCT NO.’S 70-40XXXX-XXX AND
71-40XXXX-XXX MAY BE MIXED ON THE SAME MULTIPLEX
TRUNK CIRCUIT, BUT SHALL NOT EXCEED 255 TOTAL
DEVICES PER CIRCUIT, 2040 PER SYSTEM.
CAUTION:
…
LED
(SEE NOTE 5)
FIELD
CONNECTION
N.C.
COM.
N.O.
BROWN ( N/C )
ORANGE ( COM )
WHITE ( N/O )
SEE NOTE 2
