3-16 Basic Operation PAS SERIES
4. Connect the load wire to the output terminal on the rear
panel.
If you are using M8 screws, pay attention to the direction of the
scre
ws.

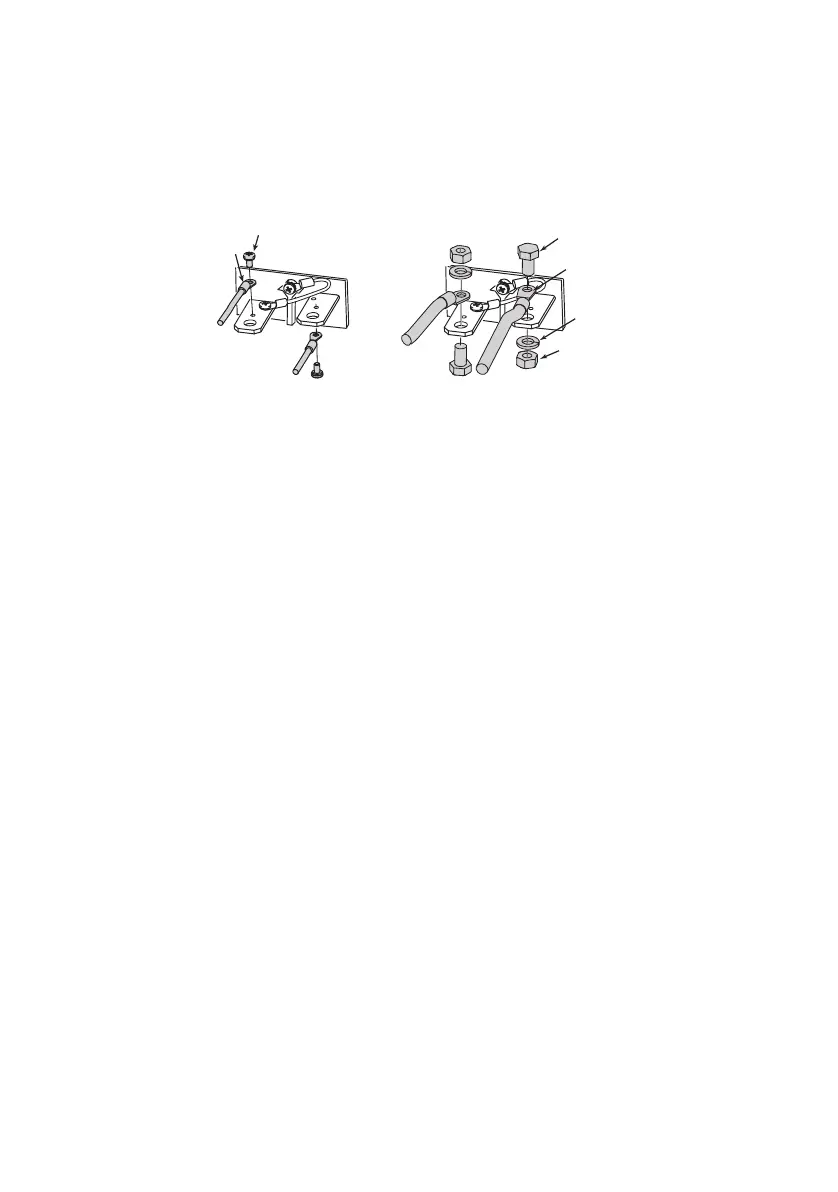

Fig.3-
4 Connecting the load wire to the output terminal
on t
he
rear panel
Connection using M4 screws Connection using M8 screws
If you do not connect the wire as
shown, the OUTPUT terminal cover
may hit the M8 screw.
o not fasten M4 screw without
ttaching the load wire. Otherwise
he threads of the output terminal
ay be damaged.
M4 screw
Crimping
terminal
M8 crew
Crimp terminal
Spring
washer
Nut
