PAS SERIES Parallel and Series Operation 5-13
5.2.4 Master-Slave Parallel Operation Setup
To perform master-slave parallel operation, the master and slave units
as well as various protection functions must be set up.
Setting the master and slave units
Set up the master and slave units through CONFIG settings.
• Set the slave units through CONFIG settings after setting the
OVP trip point.
For details on CONFIG settings, see "3.2.4 Unit Configuration
(CONFIG)".
1. While
pressing the CONFIG switch, turn on the POWER switch.
Afte
r displaying the version, the CONFIG switch lights up (CON-
FIG setting mode).
2. Press the CURRENT switch to move to the left-most digit on
the current display.
3. Use the dial to set as follows according to the roles of each
power supply unit.
Master unit : 0
Slave unit : 1

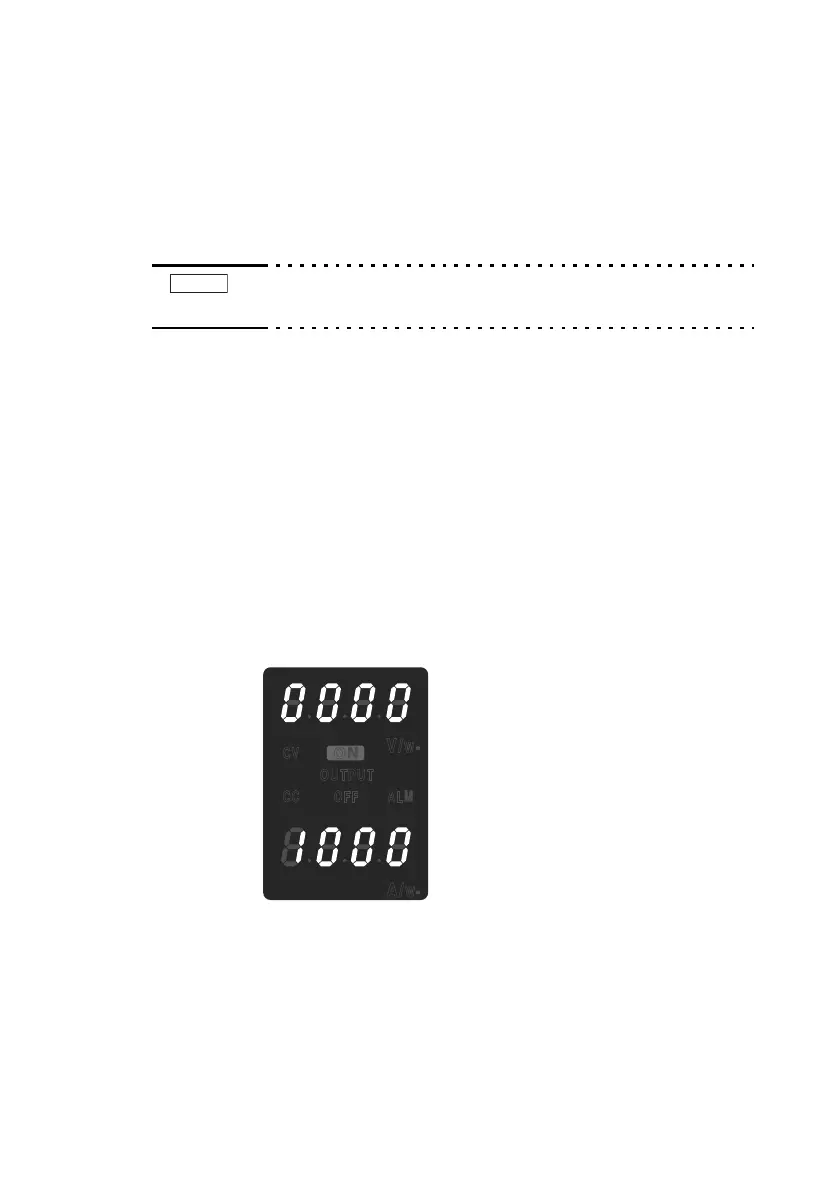

Fig.5-8 Setup example of a slave unit for parallel operation
You can check the settings by pre
ssing the CONFIG switch. The
external remote control settings are forced to local when units are
set
to slave mode.
NOTE
CV
OUTPUT
OFF ALM
V/ W
A/ W
CC
ON
