PAS SERIES Names and Functions of Controls 6-5
6.2 Rear Panel

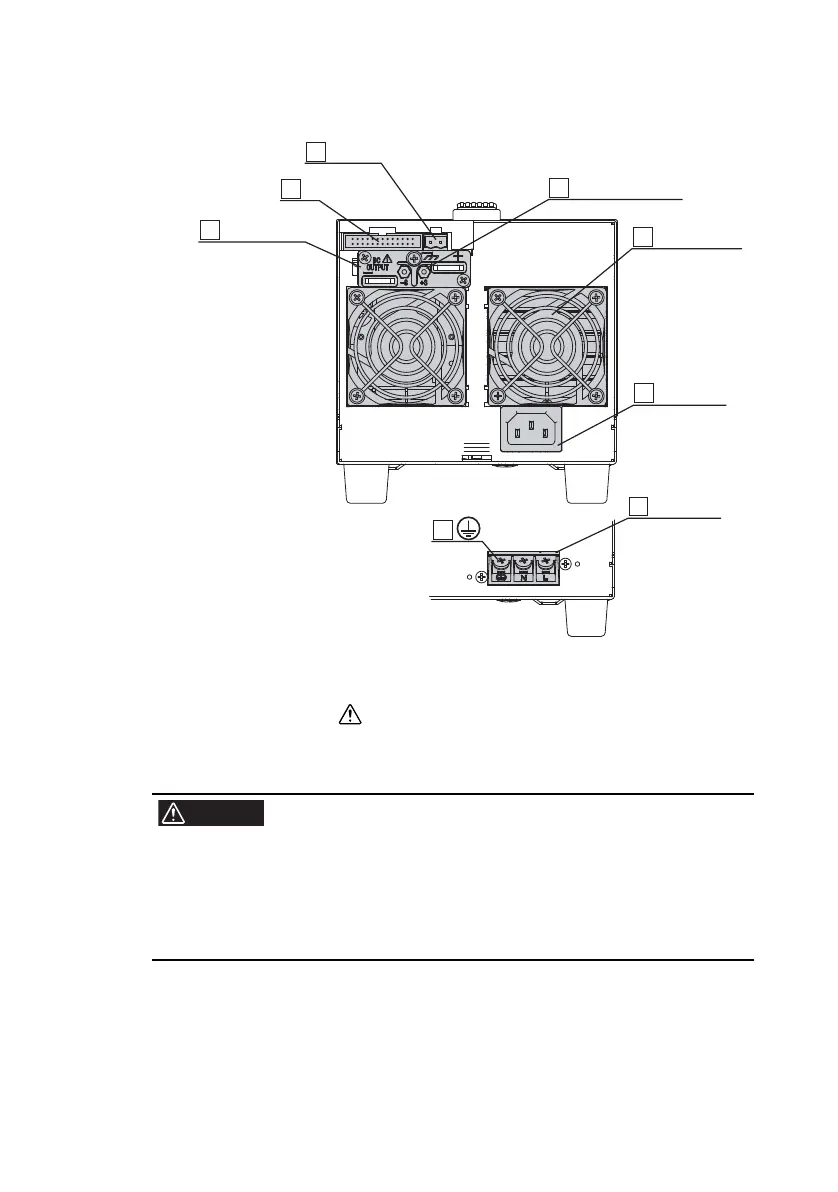

Fig.6-3 Rear panel
[13] AC INPUT
AC power cord connector (350W and 700W types) or terminal board
(1000W type) used to supply power to the unit.
• Improper handling can cause electric shock.
Be sure to follow the directions given in "1.3 Connect-
ing the AC power cord".
• For your safety, be sure to ground the unit.
For details, see "1-4 Connection of the AC power
cord on the unit side".
14 DC OUTPUT
13
AC INPUT
15 J1
17
16 TP-BUS
13 AC INPUT
18 Sensing terminal
19 Exhaust port
1000W Type
