Kikusui TOS5200 - Rear Panel

12 TOS5200

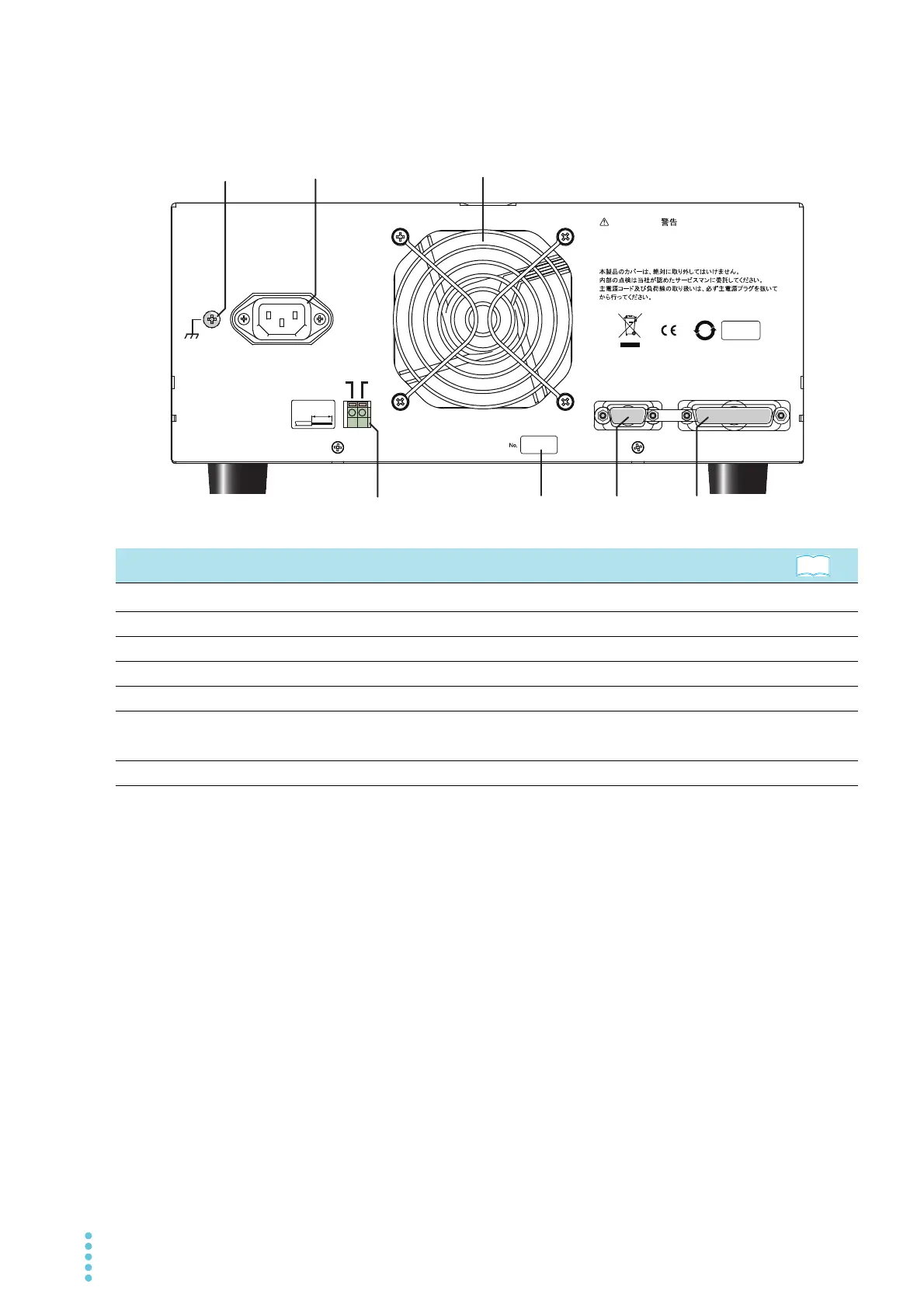

Rear Panel
No. Name Function
1
Chassis terminal
Functional ground terminal
1
1 A multipurpose ground terminal provided for the stable operation of the TOS5200. Use it if necessary.
—
2 AC LINE connector AC inlet p.20
3 Air outlet Air outlet for cooling —
4 STATUS OUT connector Connector for connecting the optional warning light unit, PL02-TOS p.17 , p.59
5 Serial number The product’s serial number —
6 RS232C port RS232C interface connector
Communication
interface
manual
7 SIGNAL I/O connector External control signal connector p.54
xxxxxxx-x
SIGNAL I / ORS232C
COM
STATUS OUT
+
KIKUSUI ELECTRONICS CORP.
STRIP-GAUGE
AWG
24-16
10 m m
AC INPUT
50- 60Hz
800VA MAX
10 0
-
240V
DO NOT REMOVE COVERS. NO OPERATOR SERVICEABLE
PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
UNPLUG THE MAINS SUPPLY CORD BEFORE HANDLING
THE CORD OR LOAD WIRES.
WARNING
10
1 2
4
76
3
5
See
