Kikusui TOS5200 - A List of Default Settings; Initializing the TOS5200

72 TOS5200

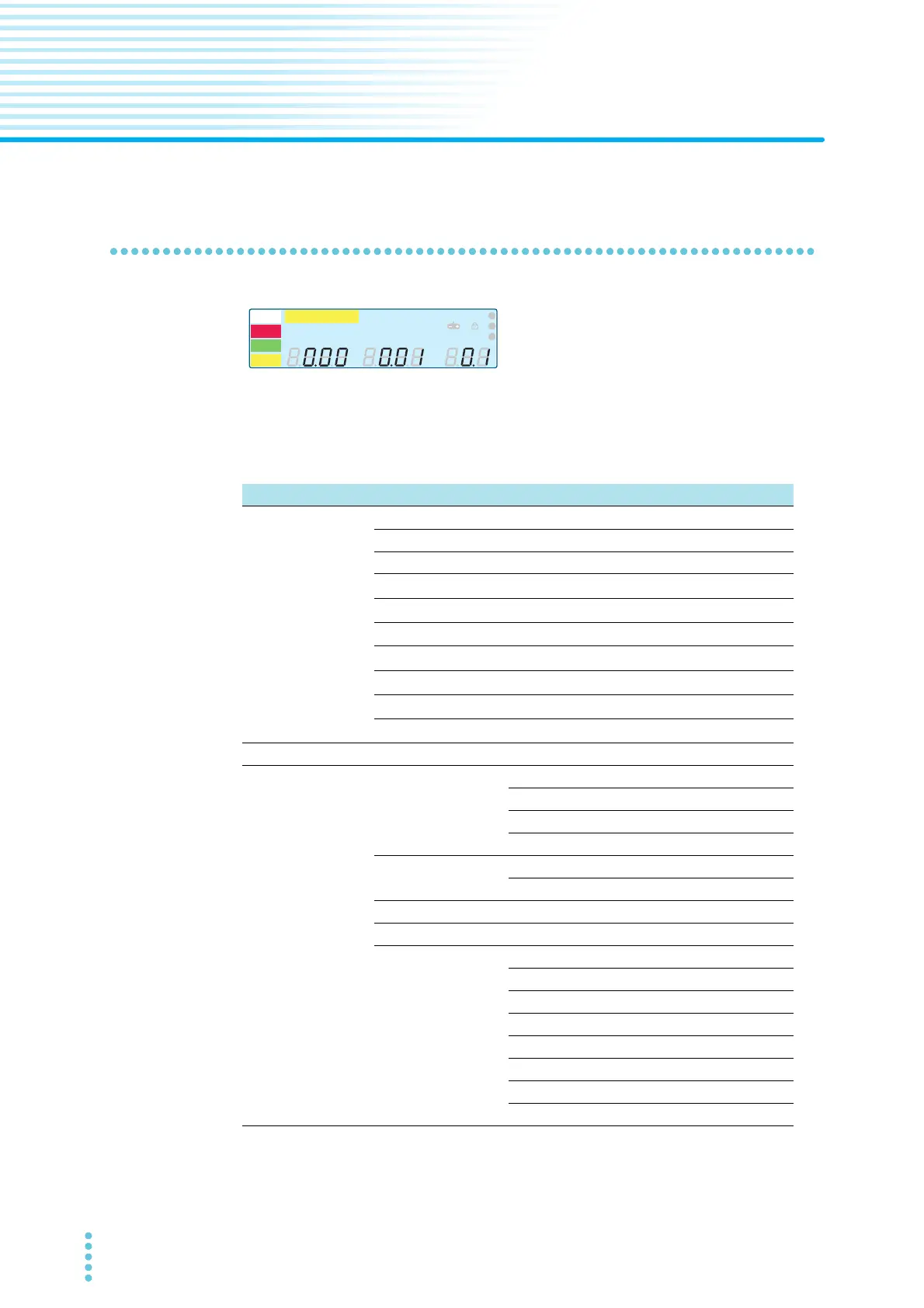

A
List of Default Settings
Initializing the TOS5200
While holding down SHIFT, turn the POWER
switch on.
When you initialize the TOS5200, all settings
(such as test conditions) and saved data are
reset to the default values shown below.
Default values
A
kV
Mȍ
mA
CONFIG
RISE TEST
RMS AV E MO RE CA L R MT
MT
LIMIT
50Hz 60Hz
UPPER
LOWER W COMP
s
1
2
3
READY
TEST
PAS S
FAIL
PROTECTION
Item Setting after initialization
Withstanding voltage
test conditions
Measurement mode RMS
Test voltage 0.00 kV
Test voltage’s limit voltage 5.50 kV
Upper limit 0.02 mA
Lower limit OFF
Test time 0.1 s
Start voltage on and off OFF
Voltage rise time 0.1 s
Voltage fall time OFF
Test voltage frequency 50 Hz
Interface setting USB
CONFIG settings Test Mode Double Action OFF
Pass Hold 50 ms
Momentary OFF
Fail Mode OFF
Buzzer Volume Level Pass 3
Fail 5
Baudrate 9600
Talk Mode OFF
Status Signal Output H.V ON OFF
Test OFF
Pass OFF
Upper Fail OFF
Lower Fail OFF
Ready OFF
Protection OFF
Power ON OFF
