CONFIG Settings
Buzzer volume level for FAIL judgment (FAIL)
You can set the volume level of the buzzer that is sounded when a FAIL judgment occurs.
RS232C baudrate
You can set the baud rate for the RS232C interface.
Talk mode
p. 68
This feature enables you to send test results and the like from the product through the
RS232C interface without using commands from a PC. It can reduce processing on the PC.
If you turn talk mode on, you cannot control the product from a PC. To control the product
from a PC, turn talk mode off.

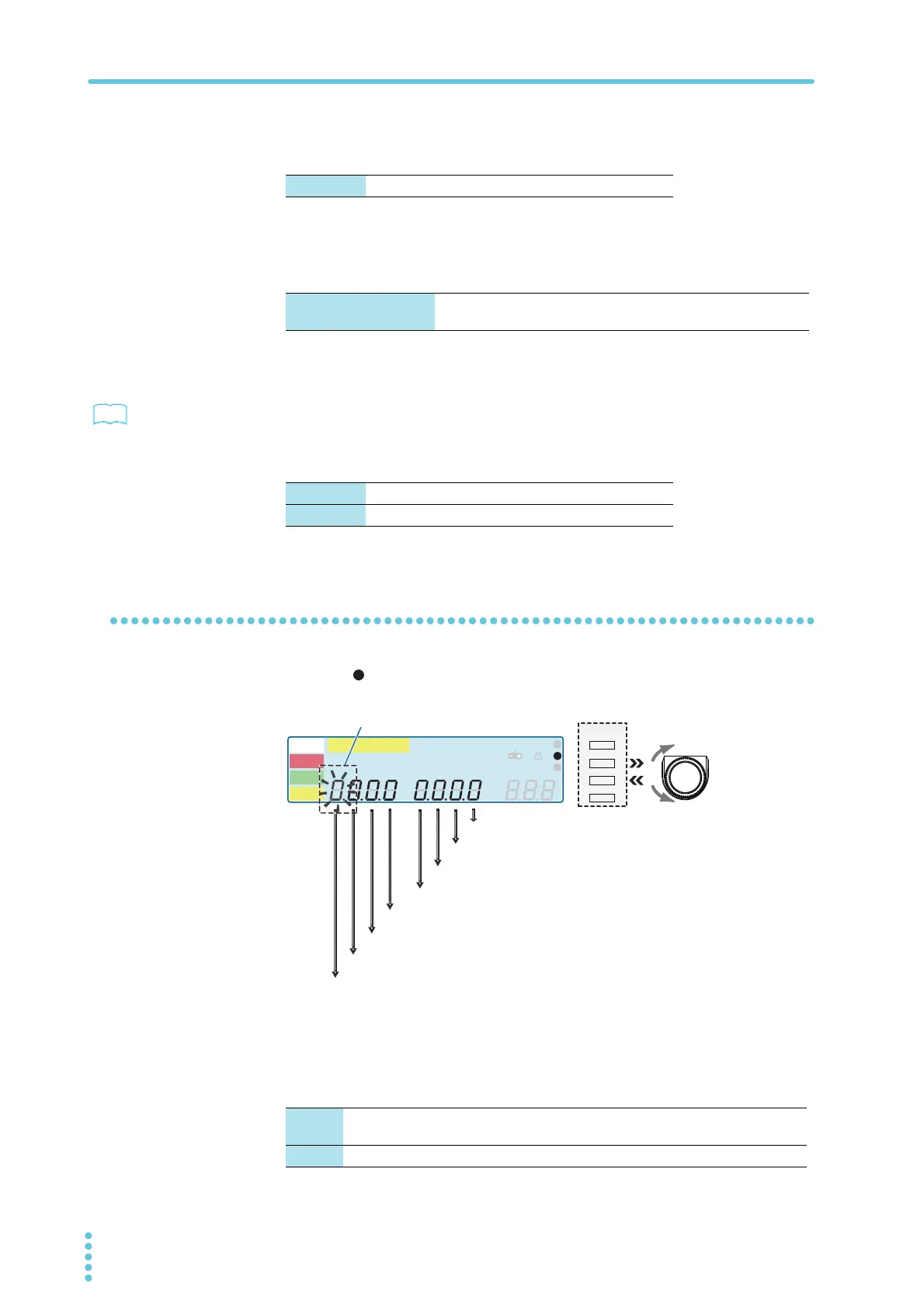

CONFIG 2 settings
On the CONFIG setup screen, you can set the output conditions when using the optional
warning light unit, PL02-TOS.
H.V ON
Sets whether the 24 Vdc output is generated while there is a residual voltage and during test-
ing.
0 to 9 0, 1, 2, 3, 4, 5 (factory default setting), 6, 7, 8, 9
9600 (0) to 115200 (4) 0: 9600 (factory default setting), 1: 19200 , 2: 38400, 3: 57600,
4: 115200
See
off (0) Talk mode is not used (factory default setting).
on (1) Talk mode is used.
2
A
kV
Mȍ
mA
CONFIG
RISE TEST
RMS AVE MORE CAL RMT
MT
LIMIT
50Hz 60Hz
UPPER
LOWER W COMP
s
1
2
3
READY
TEST
PAS S
FAIL
PROTECTION
Ready setting [0: off, 1: on]
Lower Fail setting [0: off, 1: on]
Power ON setting [0: off, 1: on]
Protection setting [0: off, 1: on]
Pass setting [0: off, 1: on]
Test setting [0: off, 1: on]
H.V ON setting [0: off, 1: on]
Upper Fail setting [0: off, 1: on]
1
MEMORY
2
3
RECALL
Example: Selecting H.V ON (blinking)
off (0) The 24 Vdc output is turned off while there is a residual voltage and during testing
(factory default setting).
on (1) The 24 Vdc output is turned on while there is a residual voltage and during testing.
