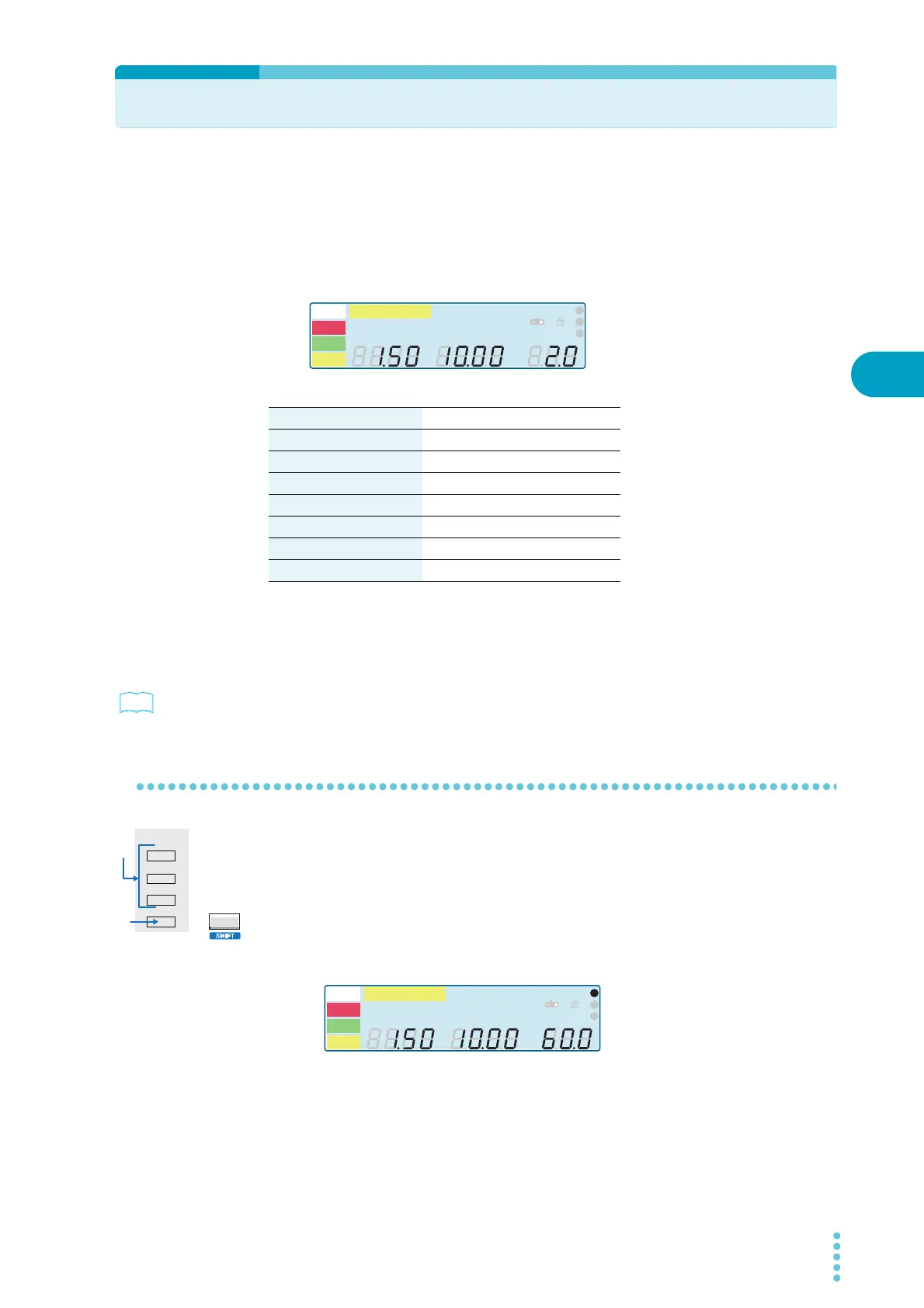

Panel Memory
You can save up to three sets of test conditions (the test conditions currently being used) to
internal memory.
Test conditions and values that can be saved
Initial panel memory settings
Initially, memory numbers 1 to 3 contain withstanding voltage test conditions. Feel free to use
these test conditions if they match the tests that you want to perform.
p. 73
For details on the test conditions that are initially contained in memory, see “Default panel
memory values”.
Saving test conditions
1
Display the basic setup screen, and then set the test conditions.
2
Press MEMORY 1, MEMORY 2, or MEMORY 3 to select the memory num-
ber (1 to 3) in which you want to save the current test conditions.
The selected memory number blinks.
3
Press SHIFT+RECALL to save the conditions in the selected memory
number.
After the test conditions have been saved, the basic setup screen is displayed in READY
mode (the READY LED lights).
Test voltage 0.00 kV to 5.50 kV
Output frequency 50 Hz/ 60 Hz
Upper limit 0.01 mA to 110 mA
Lower limit OFF/ 0.01 mA to 110 mA
Test time OFF/ 0.1 s to 999 s
Voltage rise time 0.1 s to 10.0 s
Voltage fall time OFF/ 0.1 s
Start voltage OFF/ 50 %
