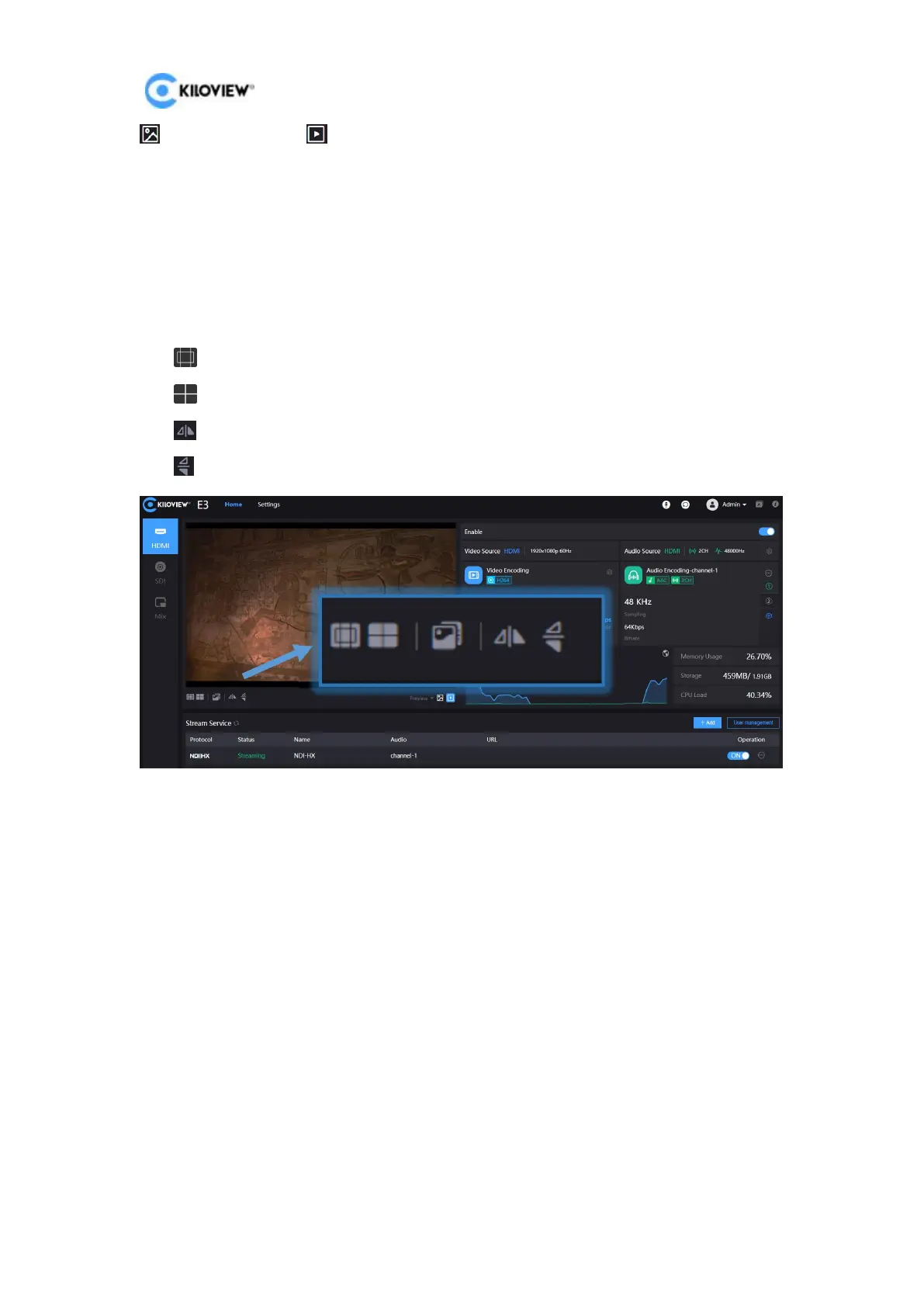

is picture mode
，
is video mode. After selecting the preview mode, you need
to click the video status next to the preview mode, select Refresh Preview, and the
preview window will switch to the selected preview mode.
If the preview window is displayed in black, it means that the device has not
detected the video input source, and you need to check whether the input cable is
correct.
: Enable safety frame for the video.
: Enable centerline for preview
: Flip the video horizontally (Mirror).
: Flip the video vertically (Flip).
The right window displays the video and audio encoding parameter information, click
the encoding button to open/close encoding.
The switching of HDMI encoding, SDI encoding and Mix encoding pages can be
completed by clicking the upper left corner of the window. The following is a brief
introduction to the relevant encoding parameters and interfaces:
Video Encoding: Displays the resolution and real-time frame rate of the
input video source.
Video Source: Displays the connector of the input signal source.
Encoding Format: Displays the encoding method of the signal source.
Resolution: Displays the encoding resolution of the source.
Bit rate: Displays the encoded frame rate of the source.
