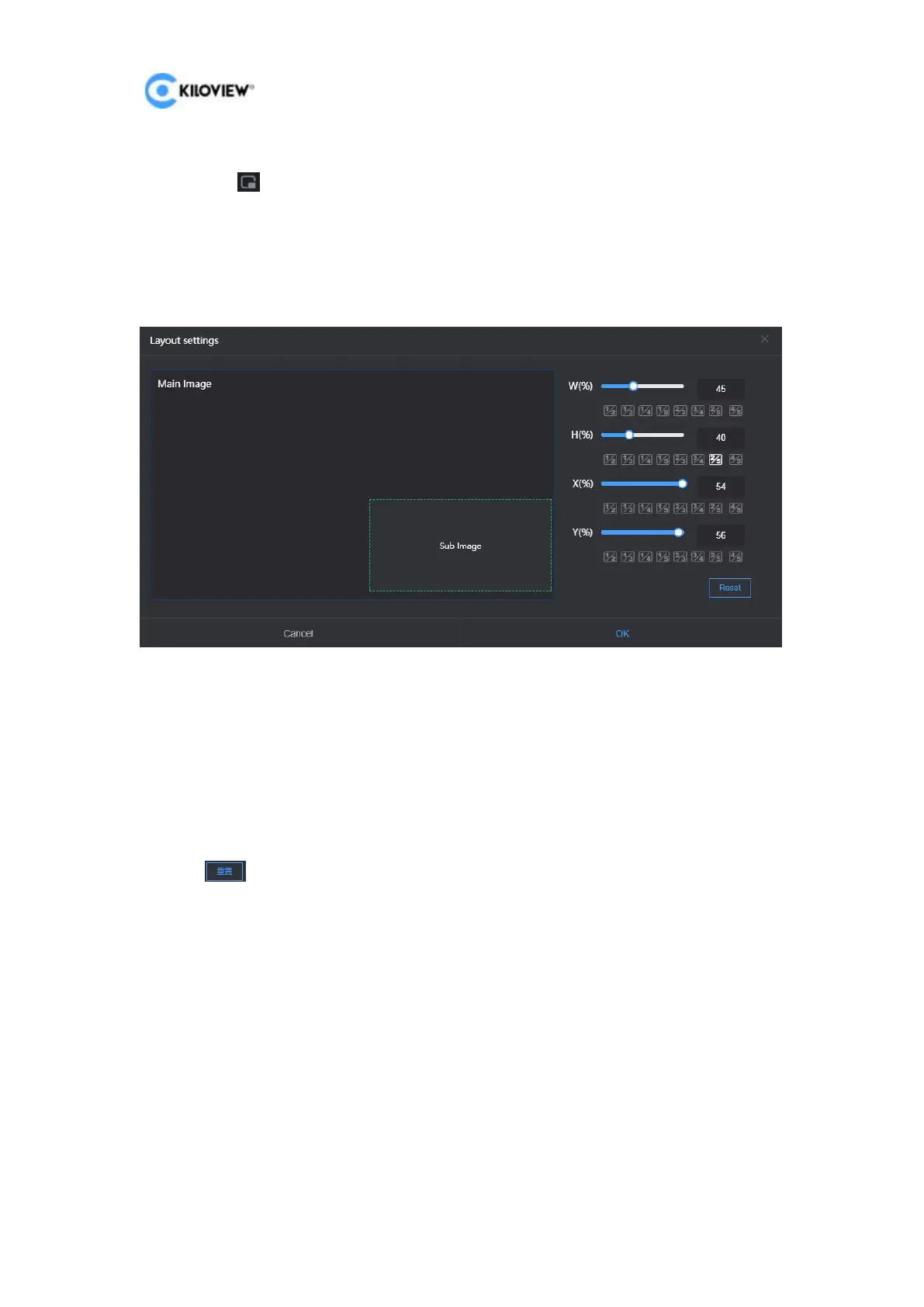

Mix(mix coding) layout settings
：
Click on the” ”button in the information bar, users can switch the video sources of
the main and sub video and set the layout. The layout setting only sets the sub video
parameters, and each parameter has 7 preset parameter icons for selection. The
parameter settings are as follows:

W
（
%
）：
Modify the width of the secondary video.

H
（
%
）：
Modify the height of the secondary video.

X
（
%
）：
Modify the X axis of the secondary video.

Y
（
%
）：
Modify the Y axis of the secondary video.
 ：
Reset all parameters of the secondary video.
7.2 Information Bar
In the information bar of the HOME page, the left window is the preview window of
the input video source, which supports picture/video preview. When the user
previews the video using the picture mode, the picture stream is displayed, which
shows a change of a picture in about three seconds. Using the video preview, the
picture is a smooth video. The switch between picture mode and video mode can be
controlled by the button in the lower right corner of the preview window.
