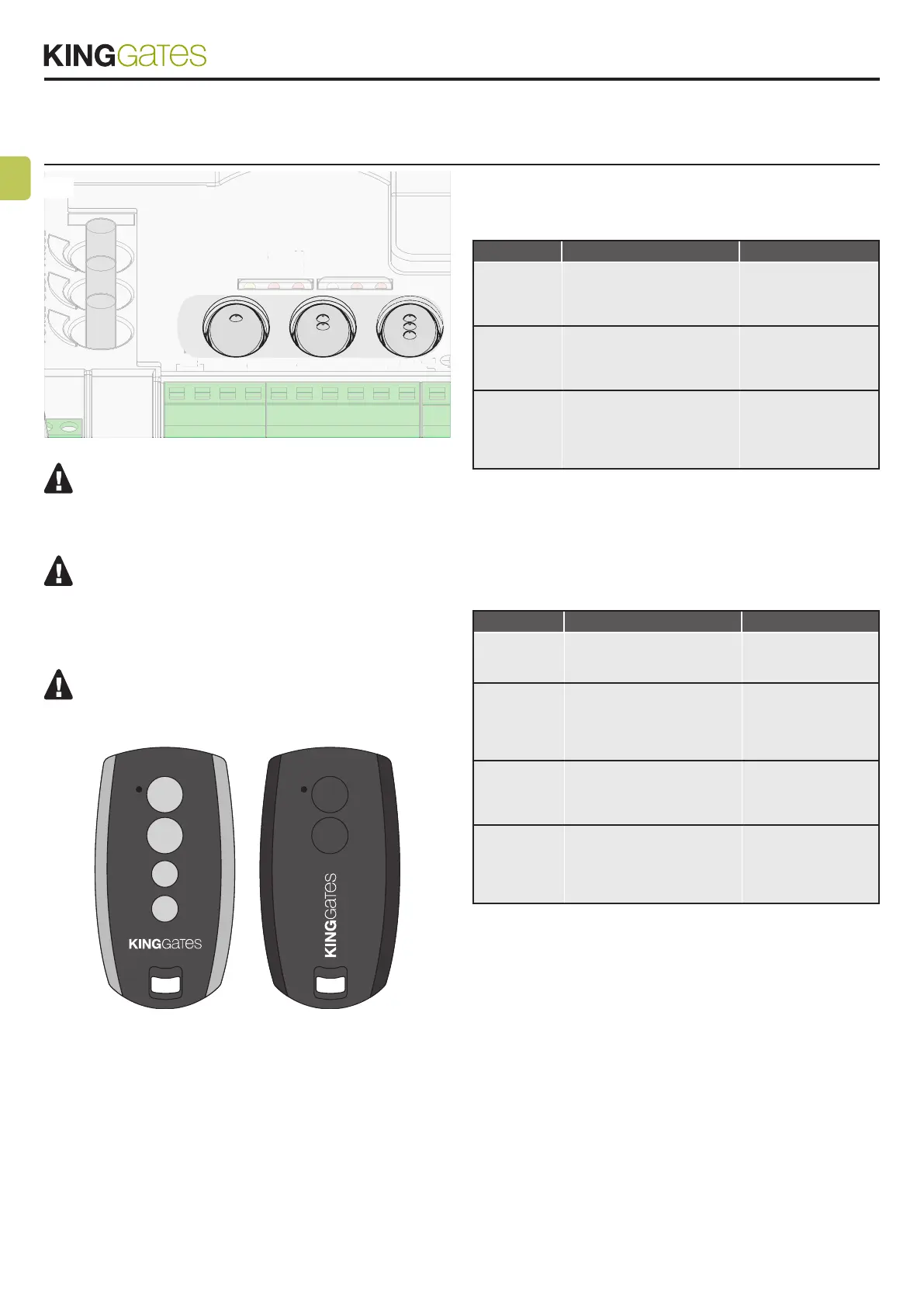

5. Transmitter (remote control unit) programming
5.1 - Start button programming
This procedure allows for programming the button of the radio con-
trol linked to the automation’s start function.
STEP ACTION RESULT
1
PRESS THE RADIO
BUTTON FOR 1 SECOND
The red “radio” LED
turns on in the xed
mode (if not, consult
Paragraph 14.1)
2
PRESS THE DESIRED
BUTTON ON EVERY
TRANSMITTER TO BE
PROGRAMMED
The red “radio” LED
ashes
3
PRESS TRHE RADIO
BUTTON UNTIL RADIO
LED TURNS OFFOR WAIT
20 SECONDS TO EXIT
THE PROCEDURE
The red “radio” LED
turns off
5.2 - Programming the button linked
to the “AUX” output
This procedure allows you to program the radio control connected to
the "AUX" output (output not active at the factory).
To use this function, the “AUX” output must be set to courtesy light.
STEP ACTION RESULT
1
PRESS THE RADIO BUT-
TON FOR 1 SECOND
The red
"radio" LED turns
on in the xed mode
2
PRESS THE START BUT-
TON FOR 1 SECOND
The red "radio" LED
remains lit in xed
mode and the red
"error" LED turns
on in xed mode
3
PRESS THE DESIRED
BUTTON OF ALL THE
TRANSMITTERS TO BE
PROGRAMMED
The red “radio” LED
ashes and the red
“error” LED turns
on in xed mode
4
PRESS THE RADIO BUT-
TON UNTIL THE RADIO
LED TURNS OFF OR WAIT
20 SECONDS TO EXIT
THE PROCEDURE
The red "radio" LED
and the red
"error" LED turn off
SET
3
HAZ
4 5 6 7 8 9 10
L
FORCE OBST PAUSE
RADIO
Set Radio Start Photo Stop Error
START
3
HAZ
4
5
6
7
8
9
1
0
L
FORCE
OBST
PAUSE
S
e
t
Rad
i
o
S
t
a
rt
Pho
t
o
S
top
E
rr
or
The transmitters to be programmed must be of the “Sty-
lo4K”, “Stylo2K”, DigyPad, Myo C4, NovoTX, NovoDigy series
by King Gates. See pictures below.
If, at the start of the following procedures, the “set”, “ra-
dio” and “error” LEDs ash, it means that the programming
protections have been activated – see Paragraph 14.1.
Therefore, radio transmitters learning is not possible.
To interrupt the following programming procedures at
any time, press the RADIO button or wait 20 seconds.
“Stylo4K” “Stylo2K”
