King gates ROLLS - Wired Commands Connection

47
EN

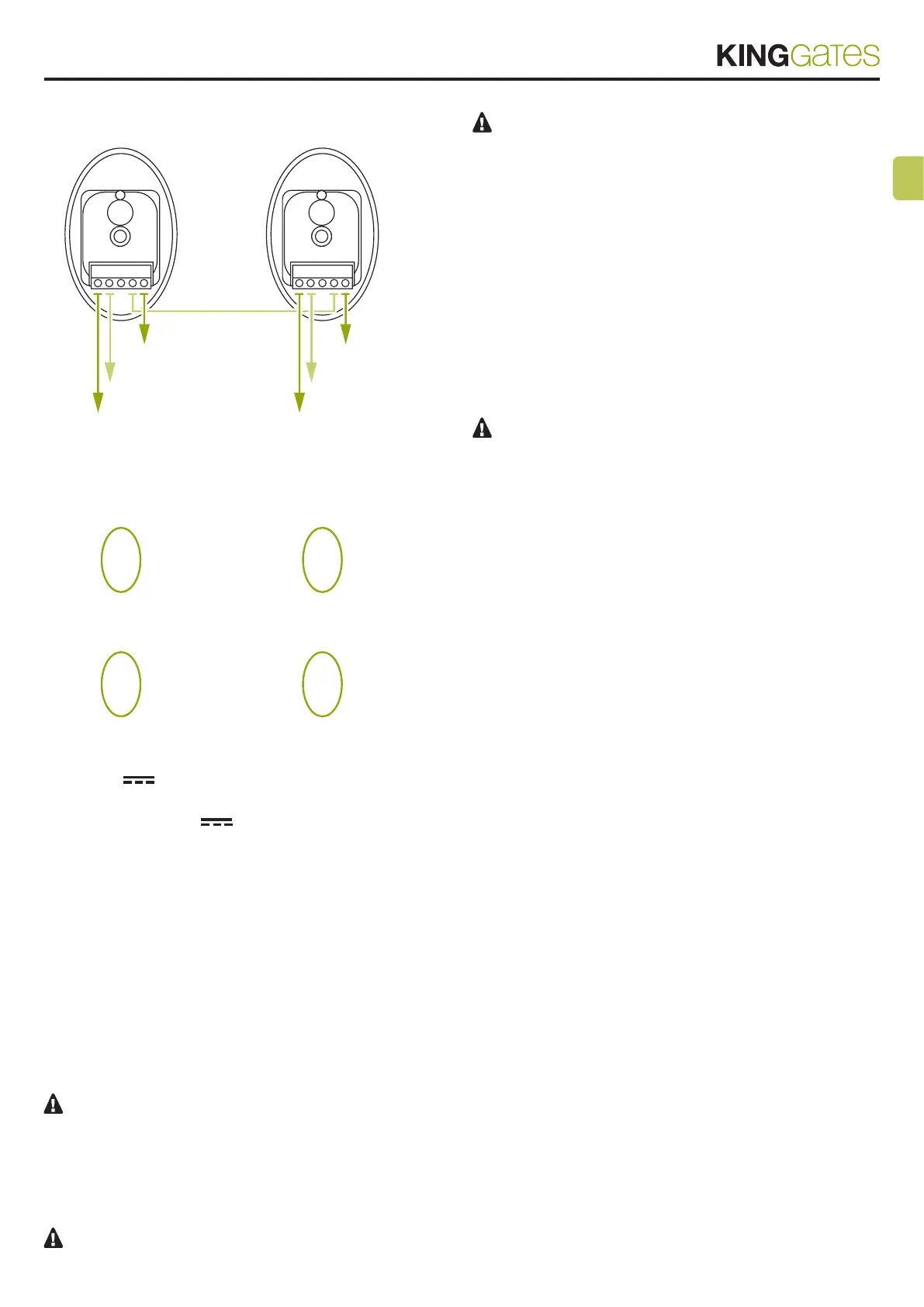

Connection of multiple receiver pairs Viky30
RX
1T
X1
TX
2R
X2
1234512345
+VA (8 or 10)
0V (7)
S2 Photo (3) or
S1 Edge (9)
+VA (8 or 10)
0V (7)
+VA (8 or 10)
Receiver
pair 1
Transmitter
pair 1
Transmitter
pair 2
Receiver
pair 2
10.4 - 24 VDC accessories’ power
supply
TERMINALS: 8-7, 10-7.
Nominal voltage 24 VDC , max. 250mA, output for powering
external accessories like photocells, radio receivers, etc.
Real voltage output can be greater than nominal value, check
the compatibility of external accessories.
10.5 - Wired commands
TERMINALS: 5-6-8-10.
Inputs for starting and stopping the motor via wired commands
START CONTACT
The “START” input (terminals 5-8) is a normally open gate activation
command by wire. The activation method is set up by dip switches 1
and 2 - see Paragraph 4.1.
This input is a voltage free (dry contact) only. Connecting
power to this input will void warranty.
TIMER FUNCTION: if START contact is kept closed (for
instance through a timer-controlled or bistable relay), control
unit opens the gate and leaves the gate opened. The automa-
tion does not accept closing commands (neither automatic
nor wired) until START contact is reopened. In this mode, dip
switch 1 STEP is set to OFF and dip 2 AUTO to ON to ensure
that the gate never remains locked open.
If multiple START contacts are connected, connect the
contacts in parallel.
38c
If START contact is kept closed during the control unit
starting after a blackout, the gate will immediately execute
the start command.
STOP CONTACT
The “STOP” input (terminal 6) is for stopping and locking any move-
ment of the gate immediately. This input is a normally closed and
voltage free (dry contact) only. Connecting power to this input will
void warranty. To restore operation this contact must be closed.
10.6 - Antenna
TERMINALS: 13-14.
Antenna terminal for transmitter signal reception. A wire is factory
connected to this terminal.
For extending the reception range, an external antenna can be con-
nected (present in the King Gates ashing lights range).
If an external antenna is connected, the wire connected in
series must be disconnected.
