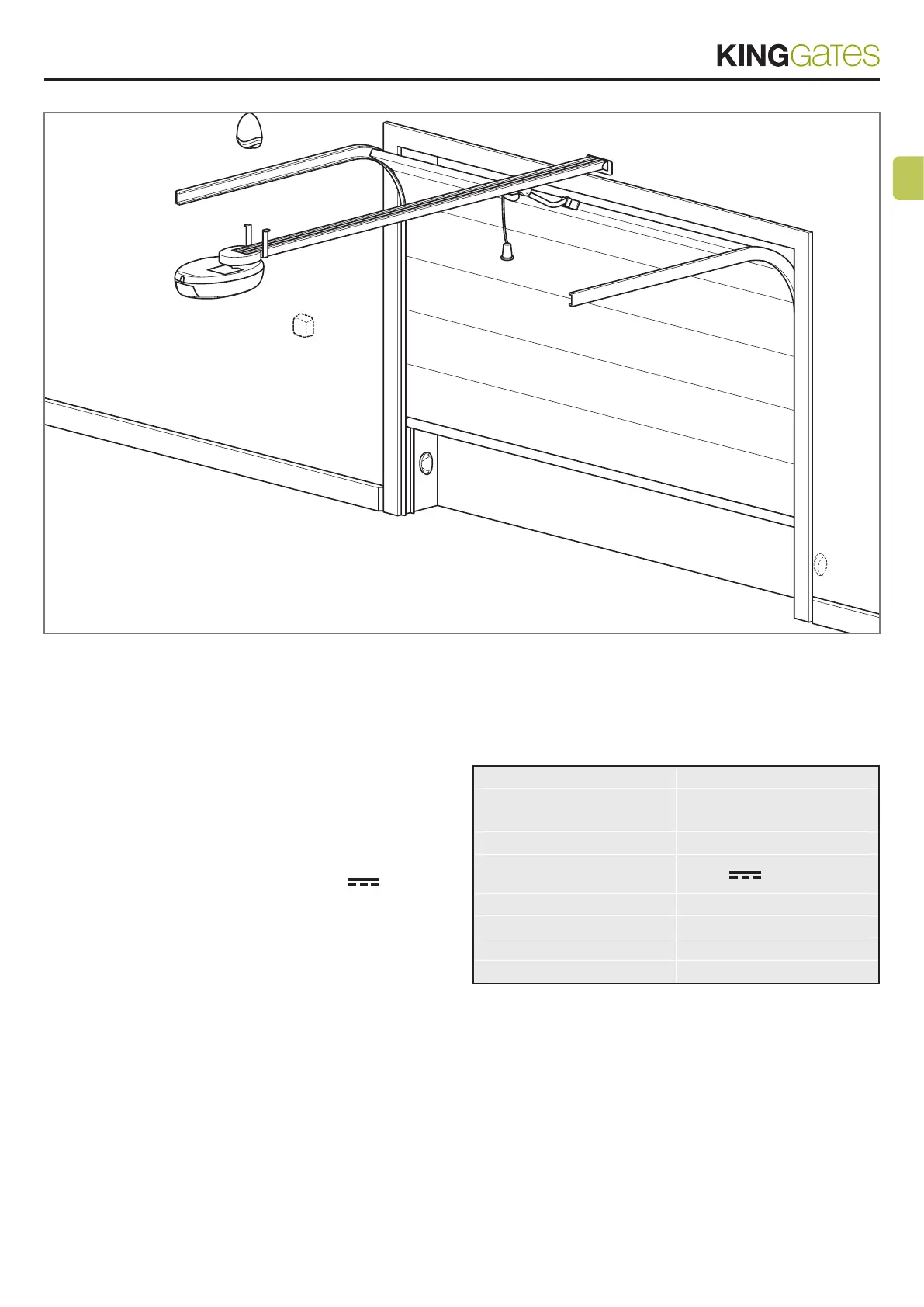

2.4 - Main features of the control unit
- Automated access command for 1 24V motor.
- Flasher control with/without integrated intermittency function
(Paragraph 10.3).
- This output can also be used to control courtesy lights (Para-
graph 13).
- Inputs for start, stop opening wired commands, (Paragraph 10.7).
- Double input for safety devices: “S2 Photo” and “S1 Edge” (par-
agraph 10.5).
- Possibility of powering 24VDC accessories (paragraph
10.6).
- Input for external antenna that can be used for increasing the
range of the transmitters (Paragraph 10.8).
- Pause time for automatic re-closing adjustable to between 0 and
180 sec. with knob (Paragraph 4.2).
- Obstacle sensitivity adjustment with knob (Paragraph 4.2).
- Motor force adjustment with knob (Paragraph 4.2).
- Incorporated radio receiver (433.92MHz), compatible with King-
Gates rolling transmitters.
- 6 indication LEDs (Paragraph 8).
- Slow-speed opening and closing (customizable through dedicat-
ed programming).
2.5 - Technical features of the
control unit
Power supply 230Vac ±10%, 50-60 Hz
Motor power supply
Rolls 700: 24V DC 120W
Rolls 1200: 24V DC 150W
Warning light power supply 24V max 10W
Accessories’ power supply
(photocells...)
24VDC 10 W max
Radio receiver frequency 433.920 MHz
Storable remote controls 180
Radio antenna input RG58
Operating temperature -20 ÷ 55 °C
