King-Meter KM6S-LCD User Manual

KING-METER TECHNOLOGY CO., LTD
No.15, Chenchang Road, Beichen Dist.Tianjin,300134, CN
Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378
- 5 -

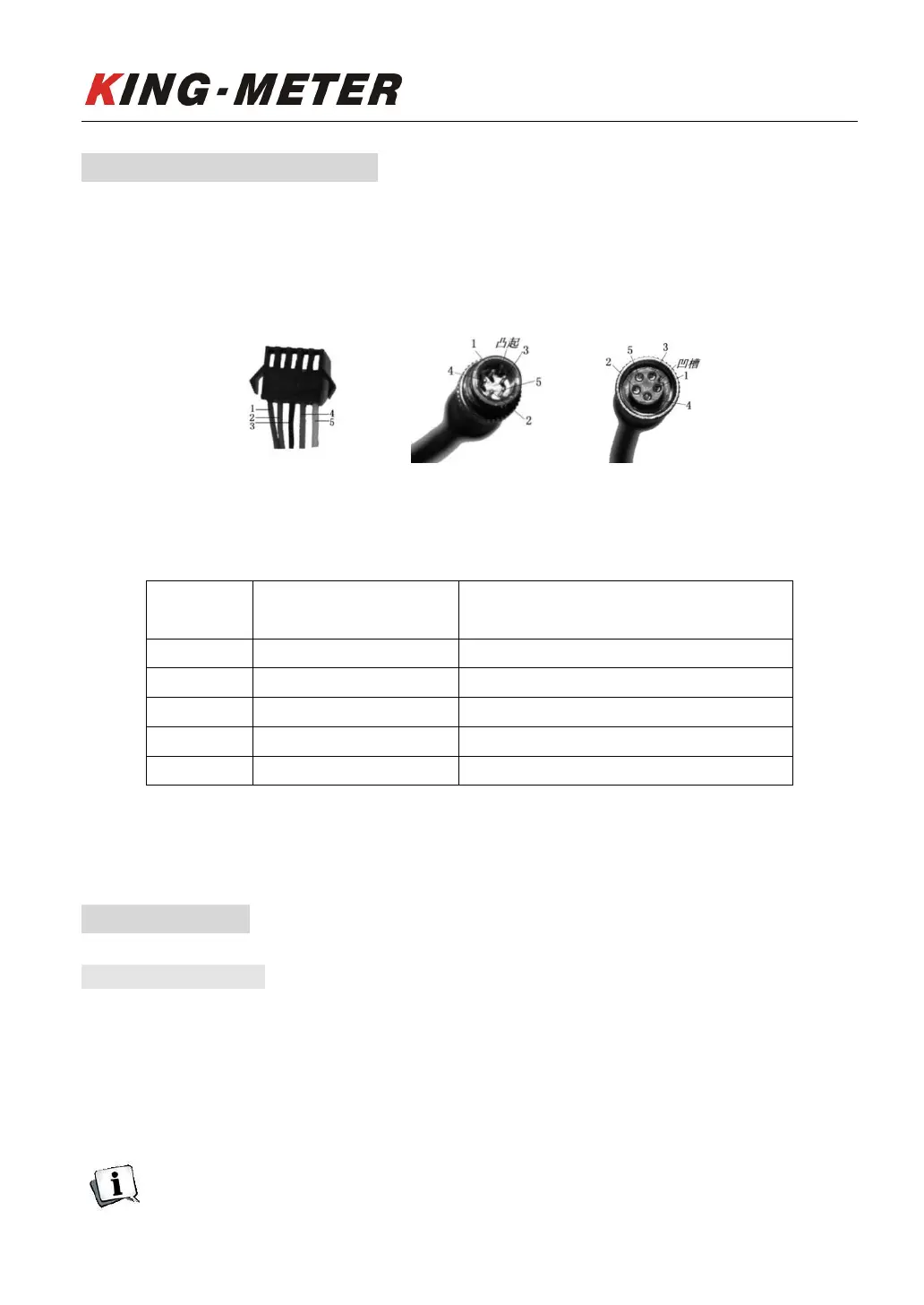

4. Installation Instruction
Fix the display on the handlebar, adjust the angel. Plug the two connectors
from display and controller when off power supply.
Standard Connector Wire Sequence
Connect to the controller Display Outlet Connection Interface
Table: Standard connector wire sequence
Standard
Wiring
Standard Wiring Color
Function
1
Red(VCC)
Display power Wire
2
Blue(K)
Controller Power Control Wire
3
Black(GND)
Display Ground Wire
4
Green(RX)
Display Data Receiving Wire
5
Yellow(TX)
Display Data Transmission Wire
Note: Some products have waterproof connectors for the leads, and the user cannot see
the color of the leads in the harness.
5.User Setting
5.1 Power On/Off
Hold MODE button to start display and supply power to the controller. When
at working state, press and hold MODE to shut off E-bike power. In the off state,
the display no longer uses the battery's power supply; leakage current is less than
1uA.
If you do not use the E-bike for more than 10 minutes, the display will
turn off automatically.
