1.1 Required Conditions for the Installation Place
Following conditions have to be satisfied.
1. The power source should be rated from 100V to 240V plus or minus 10%, more than 6A and
50 or 60Hz.
Scanner’s voltage condition is automatically corresponded to the voltage of outlet (from
100V to 240V) if only you connect the power plug.
2. Make sure to connect the power plug to the outlet that is provided with the Ground Terminal.
The outlet must be corresponded to 3 pins power plug.
3. To completely disconnect the equipment from the power source, please draw the power
plug from the outlet.
The outlet must be easily accessible near the equipment.
4. The temperature must be within the range from 10 to 32.5 degrees centigrade, and the
humidity must be from 20% to 80%.
5. Prevent the equipment from fire, dust and direct sunlight.
If it is impossible to avoid the direct sunlight, please pull the curtain to intercept the sunlight.
6. Machine Noise Information Ordinance 3. GSGV January 18, 1991 :
The maximum sound pressure level is equal or less than 70dB (A) according to ISO 7779.
7. The floor must be enough strong to withstand machine’s weight.

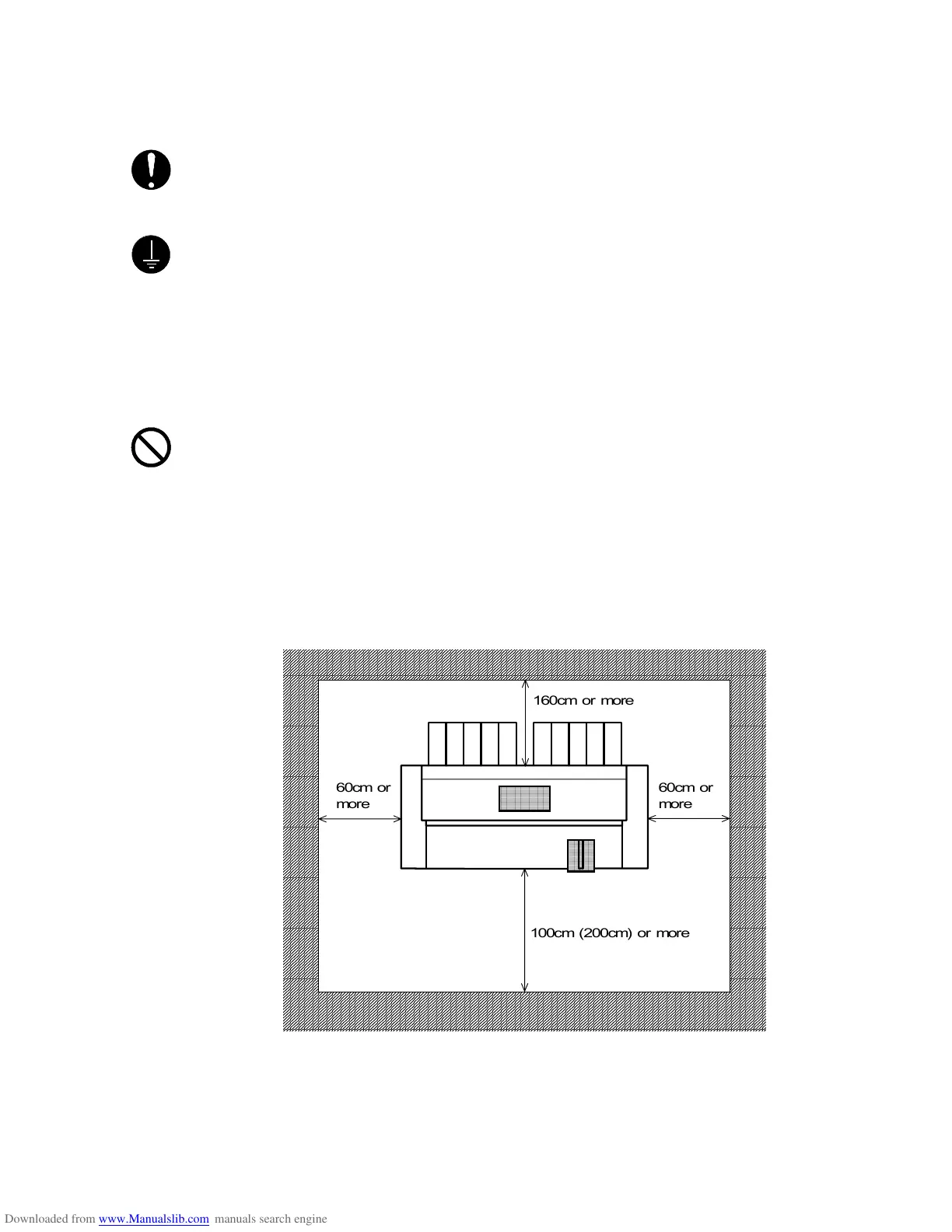

8. Keep enough space around the machine as follows.
Note : Parenthesized numbers are required space to scan the original of 0.12mm or thicker.






































































































































































60cm or
more
160cm or more
100cm (200cm) or more










60cm or
more
