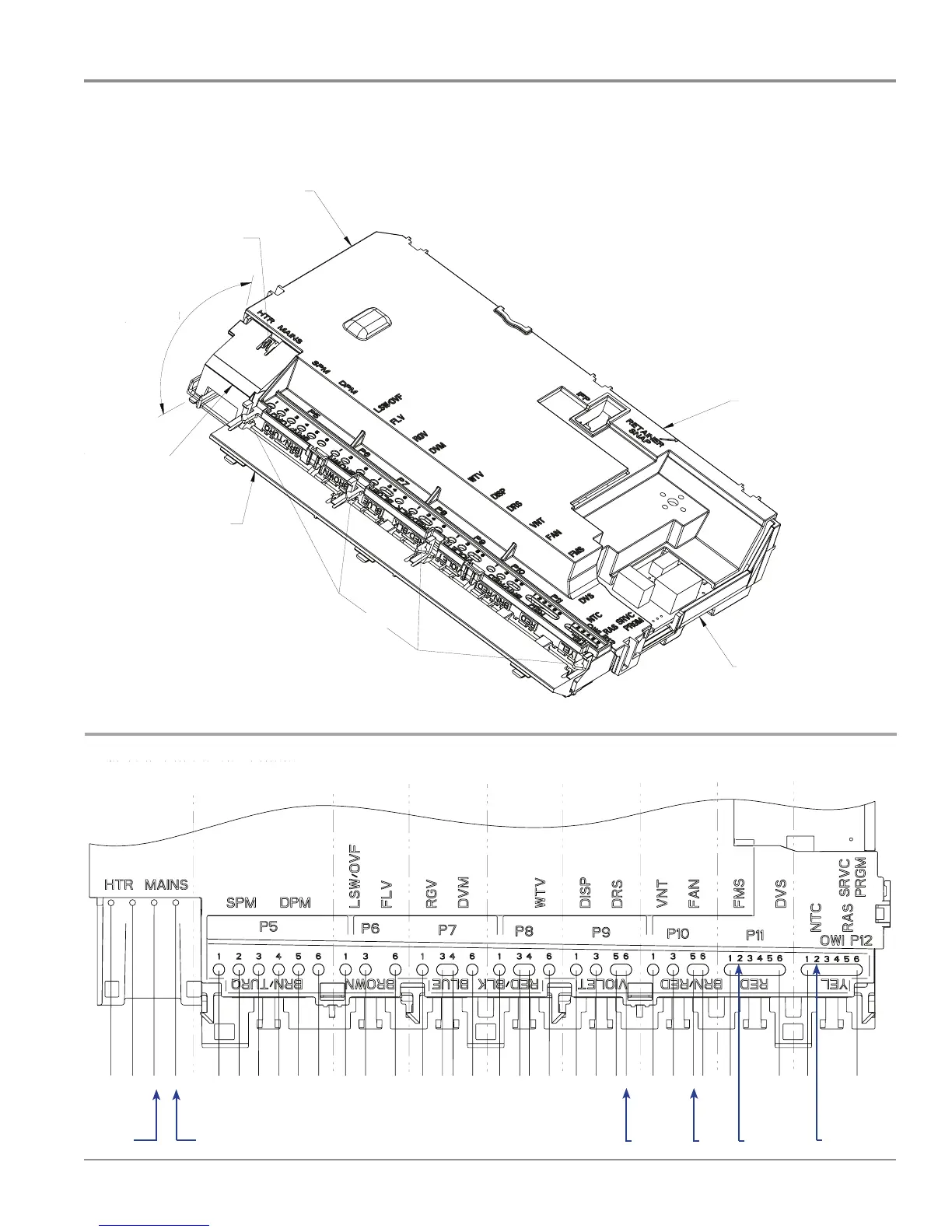

CONTROL ASSEMBLY
PUSH TO RELEASE
AND ROTATE
(ROTATE)
CONTROL BOX
CONTROL BRACE
TO REMOVE, PINCH
ARMS AND ROTATE
4 ARMS
CONTROL PANEL SNAP
LOCKS CONTROL IN PLACE
BUTTONS ON BOTTOM
OF CONTROL HOUSING
SLIDE INTO KEYHOLE SLOTS
ON CONTROL PANEL TO
SUPPORT THE CONTROL.
METER CHECK OF LOADS & SUPPLIES
4 3 2 1 1 2 3 4 5 6 1 3 6 1 3 4 6 1 3 4 6 1 3 5 6 1 3 5 6 1 THRU 6 1 THRU 6
P4 P5 P6 P7 P8 P9 P10 P11 P12
L1
NEUTRAL
DC GND
+5V +3.3V
+13V
ELECTRONIC CONTROL BOARD
