4-24
n
KitchenAid 2013 Stainless Steel Tall Tub Dishwasher
COMPONENT ACCESS

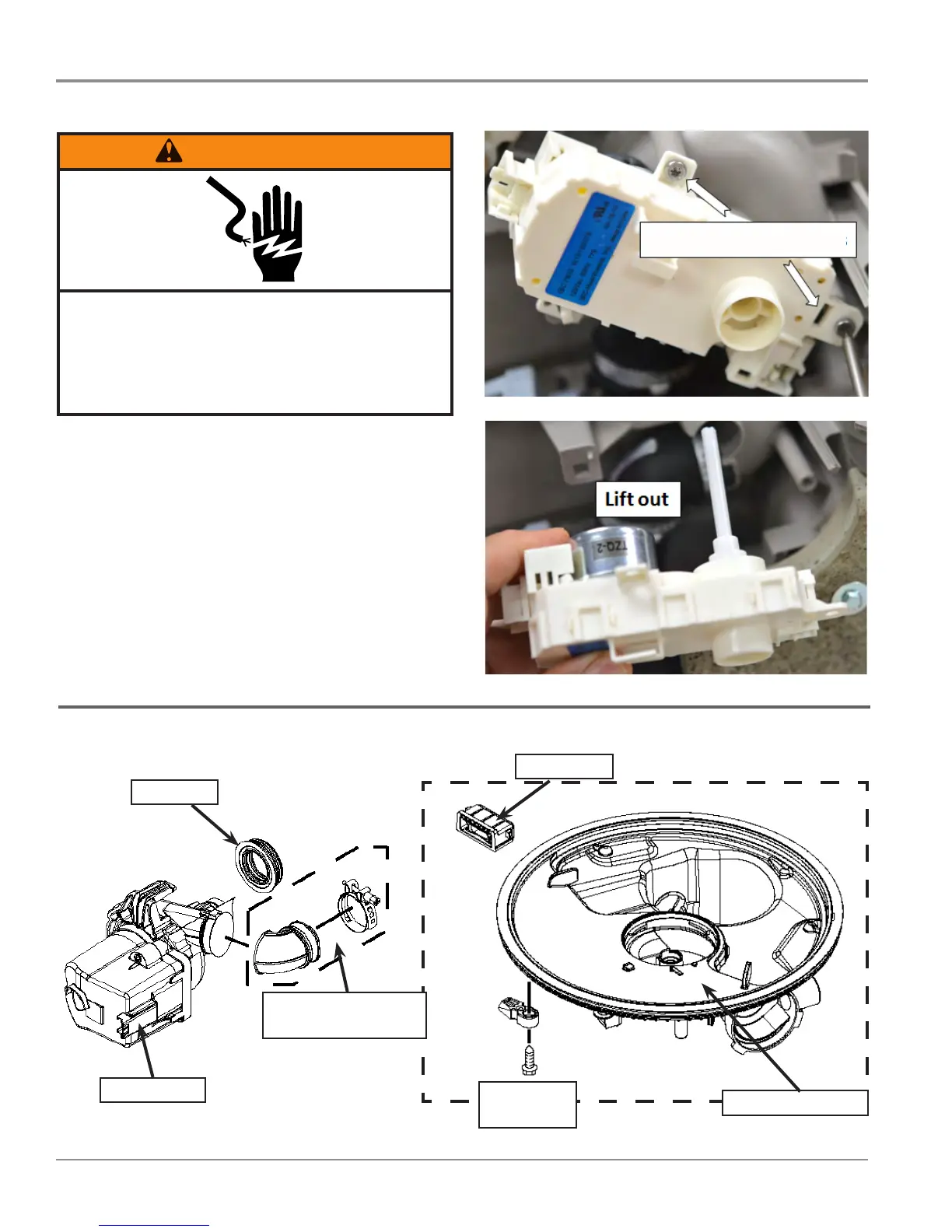

To remove the Diverter Motor:
1. Unplug dishwasher or disconnect power.
2. Remove 2 Torx screws, see gure 1.
3. Li out, see gure 2.
Figure 1
Figure 2
Note: The diverter disc is keyed onto the motor sha. The
diverter motor can be removed with out removing the diverter
disc rst but to install the diverter motor, the diverter housing
must be removed to align the diverter disc to the motor sha.
Remove 2 #10 Torx screws
Removing Diverter Motor
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.
Motor and Sump Assembly
Isolator
Latch &
Screw (3)
Sump and Seal
Hose Assembly
(includes 2 clamps)
Grommet
Wash Motor
