4-20
n
KitchenAid 2013 Stainless Steel Tall Tub Dishwasher
COMPONENT ACCESS
Figure 2
Figure 1
Figure 4
Figure 3
Figure 5

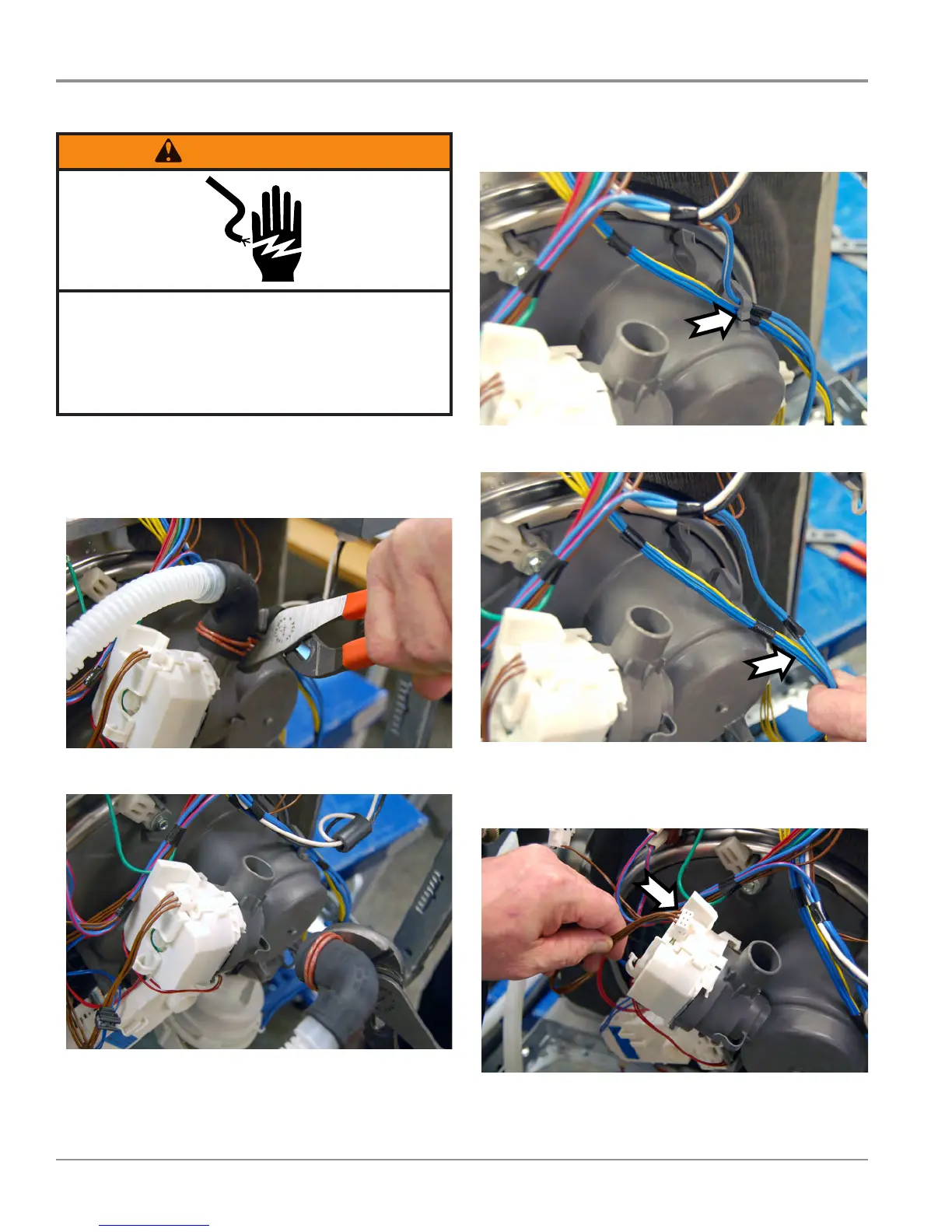

1. Unplug dishwasher or disconnect power.
2. Release hose clamp and pull o the hose, see gures 1
and 2.
Note: Be prepared to catch the water from the sump area.
3. Remove the wire harness from the bracket on the side of
the sump and move o to the side, see gures 3 and 4.
4. Unplug the wire harness connected to the drain pump,
see gure 5.
connued next page . . .
Removing Sump Assembly & Drain Pump
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.
To Next Page
