KitchenAid 2013 Stainless Steel Tall Tub Dishwasher
INSTALLATION

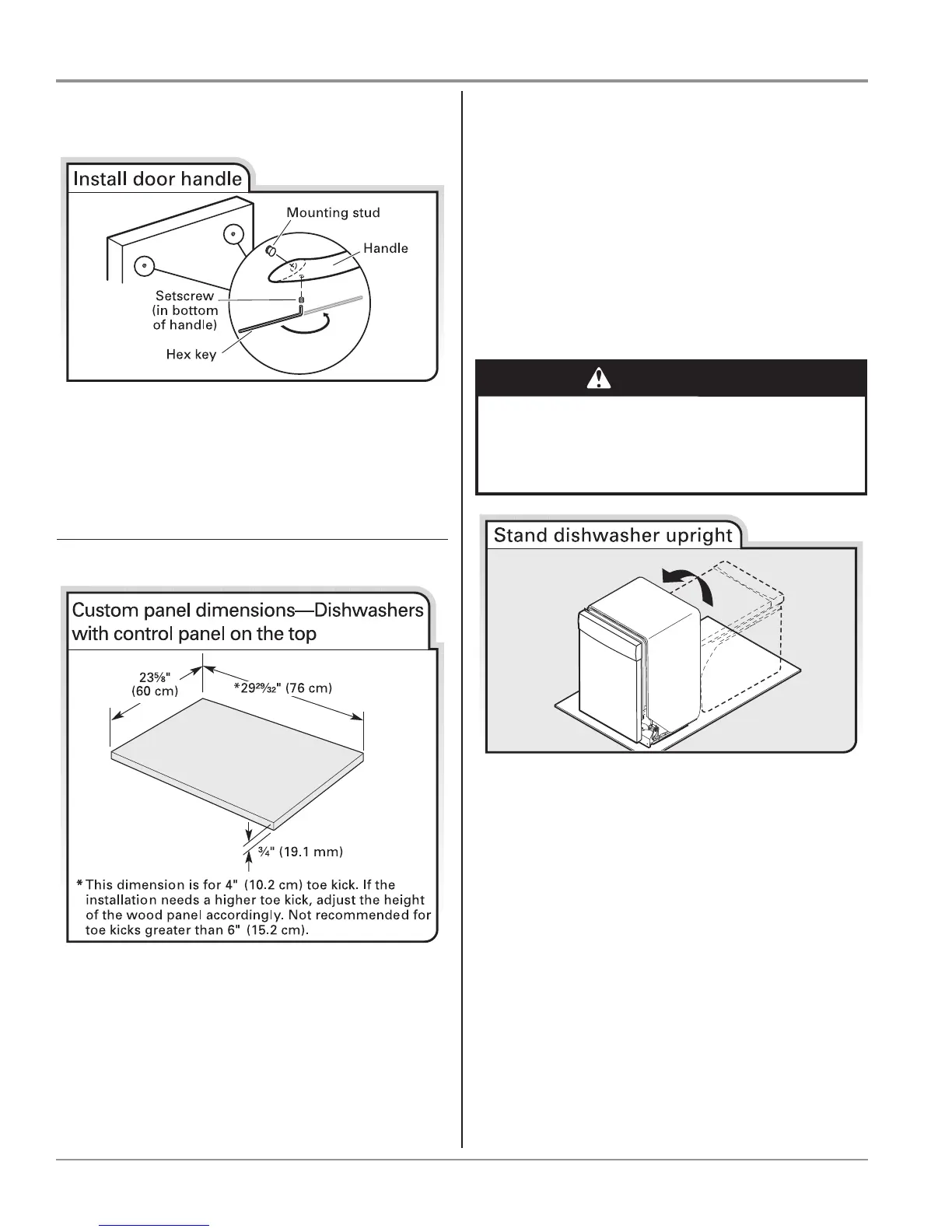

Install Door Handle
(on some models)
TANT: Do not scratch the front panel during this
ocedure.
Remove the door handle and ha
rdware bag containing the
ews and hex key from the cardboard box. Setscrews are
eady installed in the handle. Place handle on mounting studs
ews facing down. Push the door handle tightly
. Insert the short end of the hex key into the
ews. Tighten the setscrews ¹⁄₄ turn past snug.
Retain hex key with Installation Instructions.
Custom Panel Dimensions
Install Custom Panel
Follow steps below:
A customer supplied panel must weigh no more than 16 lbs
(7.3 kg) and must be made to specific dimensions. It is
recommended that a cabinetmaker cut the customer panel
because of the precise dimensions needed.
NOTES:
■
The handle for the custom panel is not included.
■ All mounting hardware supplied is for a ³⁄₄" (19.1 mm) thick
wood panel. If a thinner wood panel or materials other than
wood are used, it is the customer’s responsibility to obtain
proper length screws and adjust the pilot holes accordingly.
IMPORTANT: Use a moisture-resistant sealer on both sides and
all edges of the panel to avoid damage from moisture.
Using 2 or more people, stand the dishwasher up.
NOTE: Do not install kick plate until instructed to do so.
WARNING
Excessive Weight Hazard
Use two or more people to move and install
dishwasher.
Failure to do so can result in back or other injury.
