INSTALLATION
KitchenAid 2013 Stainless Steel Tall Tub Dishwasher
n
3-25
24

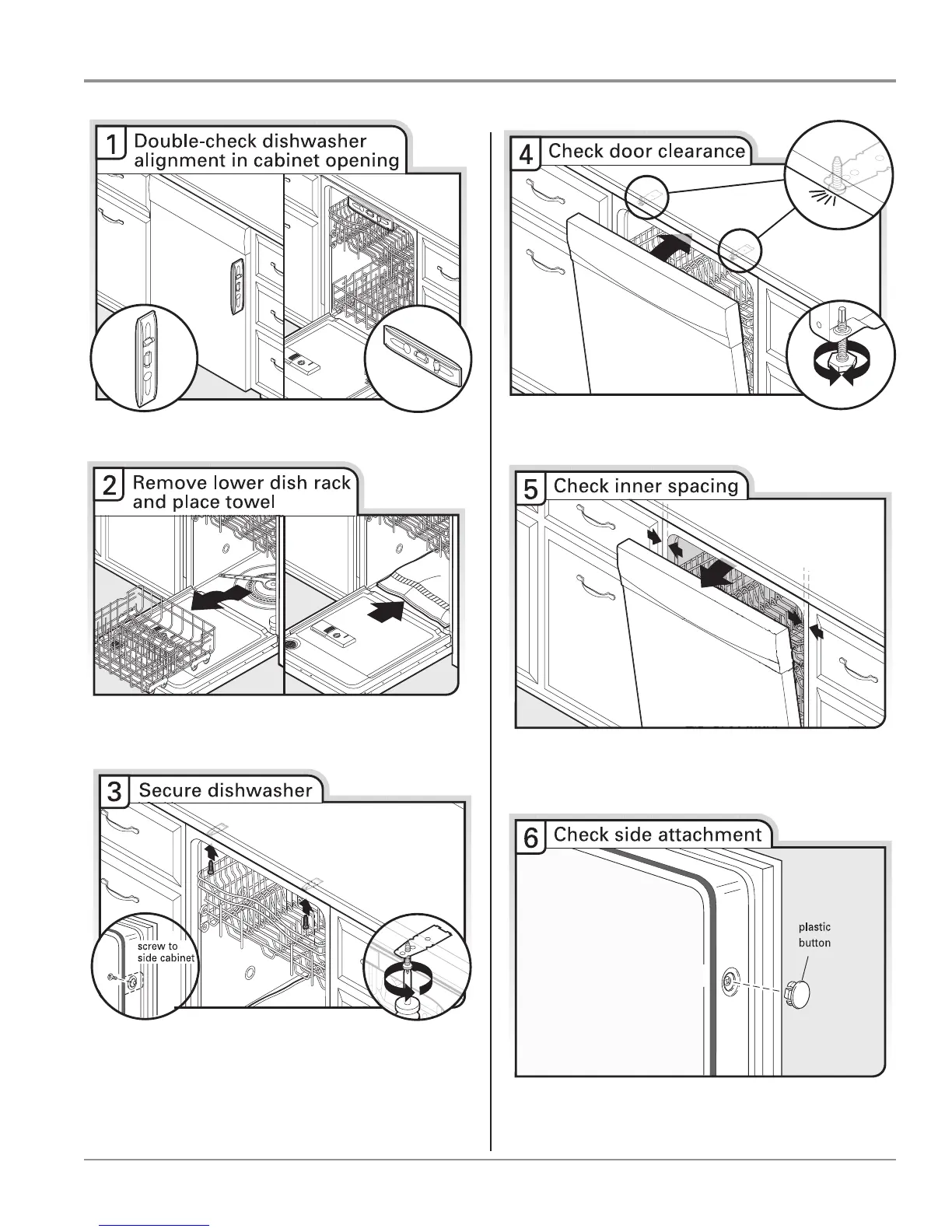

Secure Dishwasher in Cabinet Opening
Check that dishwasher is still level front-to-back and side-to-side
in cabinet opening.
Open dishwasher door, remove lower dish rack, and place towel
over pump assembly and lower spray arm of dishwasher. This will
keep screws from falling into pump area when you are securing
dishwasher to countertop.
NOTES:
■ Do not drop screws into bottom of dishwasher.
■ If side mounting, you must drill pilot holes in cabinet to avoid
splitting the wood before installing screws. Locate brackets
on top of dishwasher and secure dishwasher to countertop
with two #10 x ¹⁄₂" Phillips-head screws (included). The
dishwasher must be secured to keep it from shifting when
Check that top of door does not contact screws, brackets or
countertop. If it does, adjust leveling legs.
Open door and check that space between dishwasher cabinet
opening and tub is equal on both sides. If spacing is not equal,
loosen bracket screws secured and shift tub. Tighten bracket
screws.
If securing with a side attachment, check that sides of door do
rub against the screw heads. If they do, dishwasher must be
re-centered. When dishwasher is properly centered, replace
